Quick Details
-
Brand Name:
-
YOKE
-
Model Number:
-
YK-TUF
-
Medium:
-
Water Liquid
-
Repeatability::
-
0.2%
-
Velocity:
-
0.03 - ±32 m/s
-
Analog output:
-
4-20 mA
-
Power supply:
-
220V AC/ 8-36V DC
-
Relative Humidity:
-
85% RH
-
Medium temperature:
-
-40~90℃ / -40~160℃
-
Installation type:
-
Remote Wall-mounted
-
Connection:
-
Magnetic Clamp
-
Protection Class:
-
IP65 IP68
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters
-
Warranty:
-
18 months
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YOKE
-
Model Number:
-
YK-TUF
-
Medium:
-
Water Liquid
-
Repeatability::
-
0.2%
-
Velocity:
-
0.03 - ±32 m/s
-
Analog output:
-
4-20 mA
-
Power supply:
-
220V AC/ 8-36V DC
-
Relative Humidity:
-
85% RH
-
Medium temperature:
-
-40~90℃ / -40~160℃
-
Installation type:
-
Remote Wall-mounted
-
Connection:
-
Magnetic Clamp
-
Protection Class:
-
IP65 IP68
|

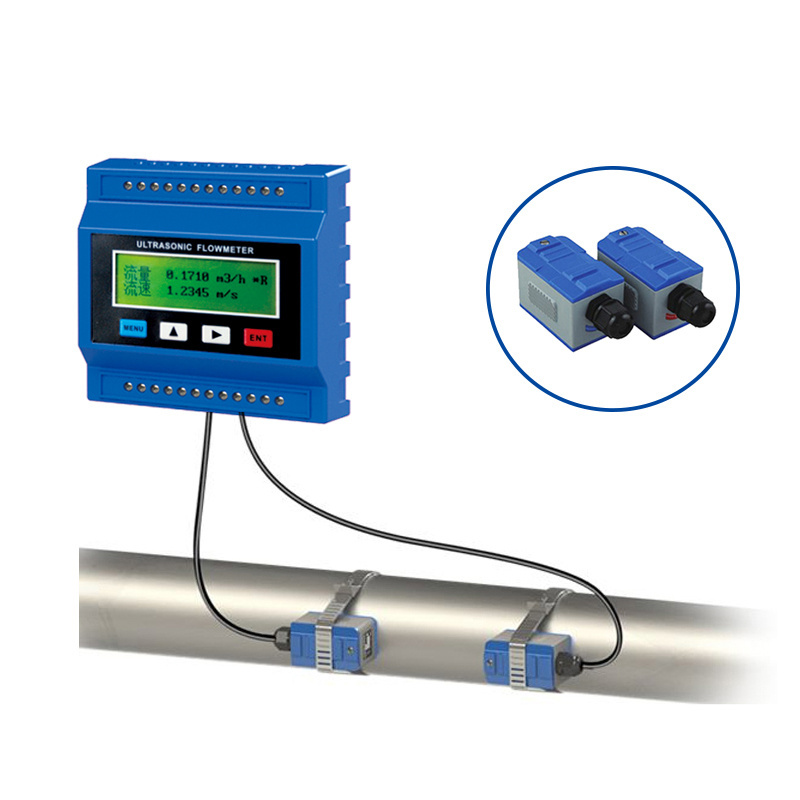

Technical Parameters
|
|
|
||
|
Host
|
Principle
|
Transit- time ultrasonic flowmeter
|
||
|
|
Accuracy
|
±1%
|
||
|
|
Signal Output
|
1 way 4~20mA output, electric resistance 0~ 1K, accuracy 0. 1%(optional)
1 way OCT pulse output(Pulse width 6~1000ms, default is 200ms) 1 way Relay output |
||
|
|
Display
|
2X20 character LCD with backlight, support the language of Chinese, English and Italy
|
||
|
|
|
3 way 4~20mA input, accuracy 0. 1%, acquisition signal such as temperature, press and liquid level
|
||
|
|
|
Connect the temperature transducer Pt100, can finish the heat/energy measurement
|
||
|
|
Data Interface
|
Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS
|
||
|
Special Cable
|
Twisted-pair cable, generally, the length under 50 meters ; Select the RS485, transmission distance can over 1000m
|
|
||
|
Pipe Installation Condition
|
Pipe Material
|
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
|
||
|
|
Pipe Diameter
|
DN15-6000mm
|
||
|
|
Straight Pipe
|
Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
|
||
|
|
Medium
|
water,sea water ,alcohol,Acid and alkali,waste water,beer,all kinds of oil Single liquid can transmit sound wave.
|
||
|
|
Temperature
|
-30~160℃
|
||
|
|
Turbidity
|
No more than 10000ppm and less bubble
|
||
|
|
Flowrate
|
0~±7m/s,Forward and backward measurement
|
||
|
|
Protection grade
|
Host:IP67;flow sensor:IP68
|
||
|
|
Temperature
|
Host:-20~60℃;flow sensor:-30~ 160℃
|
||
|
|
Humidity
|
Host: 85%RH; Flow sensor:can measure under water, water depth^2m (tansducer sealed glue)
|
||
|
Power Supply
|
DC8~36V or AC85~264V
|
|
||
|
Power Consumption
|
1.5W
|
1.5W
|
||
|
|
|
|
||
