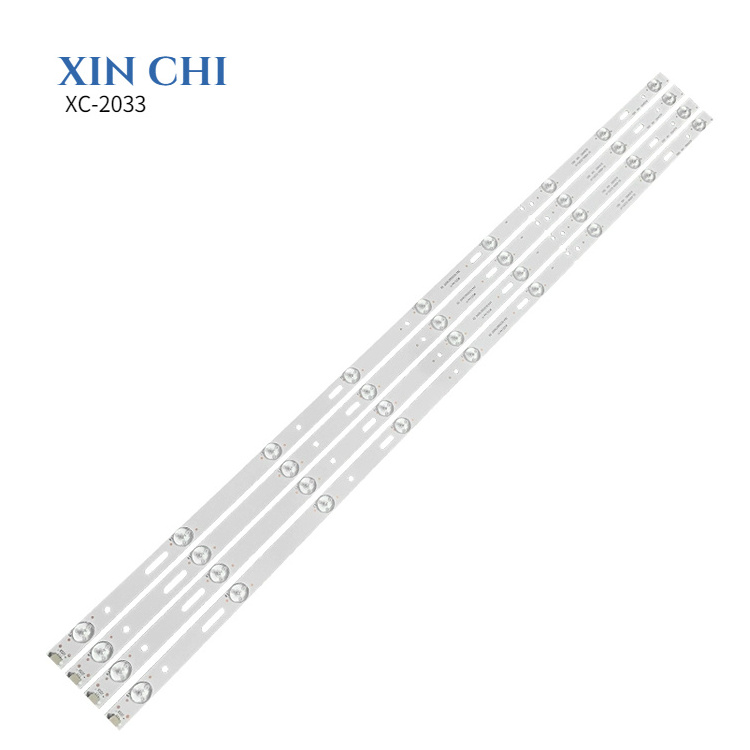

XC2033 40 Inch LCD Light Strip DLED40GC 4X9 1003 Backlight Stirps For Tv Philips 40PFF5021/T3 AOC T4012M3

XC2033 40 Inch LCD Light Strip DLED40GC 4X9 1003 Backlight Stirps For Tv Philips 40PFF5021/T3 AOC T4012M3

FOB Reference Price: Get Latest Price

≥2 Pieces

US $1.19

≥200 Pieces

US $0.99

≥500 Pieces

US $0.88

≥1000 Pieces

US $0.65

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color Temperature(CCT):: 12000-16000K

CRI (Ra>):: 76

Input Voltage(V):: 3V/led

Lamp Luminous Efficiency(lm/w):: 200

Lamp Luminous Flux(lm):: >120lm

Working Lifetime(Hour):: 50000

Working Temperature(℃):: -25 - 75

Color Rendering Index(Ra):: 76

Switch Mode:: other

Support Dimmer:: not support

Product Weight（kg）:: 0.1

code:: XC2033

Product Name:: LED TV Backlight Strip

LED Quantity:: 9LED

LED Light Source:: SMD3030

1set:: 4PCS

Material:: Aluminum Plate

TV size:: 40

Suitable for TV models:: 40

MOQ:: 1SET

Keyword:: Tv Backlight Led Strip

Quick Details

Place of Origin:: Guangzhou, China

Brand Name:: XC

Model Number:: DLED40GC

Color Temperature(CCT):: 12000-16000K

CRI (Ra>):: 76

Input Voltage(V):: 3V/led

Lamp Luminous Efficiency(lm/w):: 200

Lamp Luminous Flux(lm):: >120lm

Working Lifetime(Hour):: 50000

Working Temperature(℃):: -25 - 75

Color Rendering Index(Ra):: 76

Switch Mode:: other

Support Dimmer:: not support

Product Weight（kg）:: 0.1

code:: XC2033

Product Name:: LED TV Backlight Strip

LED Quantity:: 9LED

LED Light Source:: SMD3030

1set:: 4PCS

Material:: Aluminum Plate

TV size:: 40

Suitable for TV models:: 40

MOQ:: 1SET

Keyword:: Tv Backlight Led Strip

Product details

tem type	LCD TV backlit LED light strip
Usage	Repair or replacement for TV
Application	TV Backlight Repair Kit
Lamp body material	Aluminum
Default Colors	CW5800~6250K
Other colors	WW2600~3200K NW3800~4250K
Temperature	Operating Temperature :-40~60°C (PCB /Tc < 75 °C)
LED Power	0.55W(CC TYPE); 0.7W(CV TYPE)
Input	DC18~19V(CC TYPE); DC24V(CV TYPE)
Light Angle	150°~170°
Life Span	100000 hours
Warranty	2 year
MOQ	1set
Delivery	Sample order 1-2 days, mass order 3-7 days after payment confirmed
Support:	Sample; OEM/ODM
Package:	Packing with Tray/Anti-static Bag, Standard Export Carton
Payment Way:	T/T 30% Prepaid, 70% Before Delivery

The company's main business: LED/LCD TV backlight strip Advantages: high thermal conductivity, good heat dissipation, long life, high brightness, uniform illumination. Packing: with ordinary paralysis tray/pallet, export carton/customized packaging. Remarks: OEM/OEM ; Our company can also offer special customized programs.

Product Name
LED TV Backlight
Usage
TV Repair or replacement
Model Number
DLED40GC 4X9 2002GC-40D09-ZC21FG-01 303GC400031
DLED40GC 4X9 1003
GC400M02

TV Model
Used for
Screen Model
-
Complete Set
4PCS
LED Quantity
9LED
LED Voltage
3V/LED
Length
774mm

The price of this product is subject to fluctuation, please refer to our quotation. Depending on your situation. We will give you a discount. Please contact us by email or TM.
