Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZEROONE
-
Model Number:
-
MINI BOX -1711
-
Power:
-
60W
-
Operating System:
-
Win7/8/10
-
Processor Type:
-
i3 6157U
-
Chipset Type:
-
Intel SOC
-
Processor Series:
-
i3 6157U
-
Video Card:
-
In-tel H-D Graphics
-
Size:
-
198x198x45mm
-
Weight (kg):
-
≤ 2.2kg
-
Color:
-
Space Grey
-
Luminance:
-
Aluminum alloy structure
-
CPU:
-
i3 6157U
-
Ports:
-
VGA and HDMI dual display
-
Power Adapter:
-
INPUT : 100-240V 50/60Hz Power consumption :≤60W Output : 12.0V/5.0A
-
OS support:
-
Support for WIN10/Linux
-
Certification:
-
CCC / CE / FCC / RoHs
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
GDDR4
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZEROONE
-
Model Number:
-
MINI BOX -1711
-
Power:
-
60W
-
Operating System:
-
Win7/8/10
-
Processor Type:
-
i3 6157U
-
Chipset Type:
-
Intel SOC
-
Processor Series:
-
i3 6157U
-
Video Card:
-
In-tel H-D Graphics
-
Size:
-
198x198x45mm
-
Weight (kg):
-
≤ 2.2kg
-
Color:
-
Space Grey
-
Luminance:
-
Aluminum alloy structure
-
CPU:
-
i3 6157U
-
Ports:
-
VGA and HDMI dual display
-
Power Adapter:
-
INPUT : 100-240V 50/60Hz Power consumption :≤60W Output : 12.0V/5.0A
-
OS support:
-
Support for WIN10/Linux
-
Certification:
-
CCC / CE / FCC / RoHs
Specification
|
Product Model
|
MINI BOX-1711
|
|
|
|
|||
|
Size (mm)
|
198x198x45mm
|
|
|
|
|||
|
Weight (kg)
|
≤ 2.2kg
|
|
|
|
|||
|
Color
|
Space Grey
|
|
|
|
|||
|
Luminance
|
Aluminum alloy structure
|
|
|
|
|||
|
Processor
|
Support for Intel Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors
|
|
|
|
|||
|
BIOS
|
AMI BIOS
|
|
|
|
|||
|
Chipset
|
Intel® SOC
|
|
|
|
|||
|
Display
|
Intel ® HD Graphics integrated graphics card
|
|
|
|
|||
|
Network
|
Realtek RTL8111E
|
|
|
|
|||
|
Audio
|
Realtek ALC662HD
|
|
|
|
|||
|
Memory
|
Single strip DDR3L 1333MHz Max 8GB
|
|
|
|
|||
|
Hard dive
|
M-SATA 256GB
|
|
|
|
|||
|
Functions
|
Supports WiFi, Bluetooth, 4G, and watchdog functions
|
|
|
|
|||
|

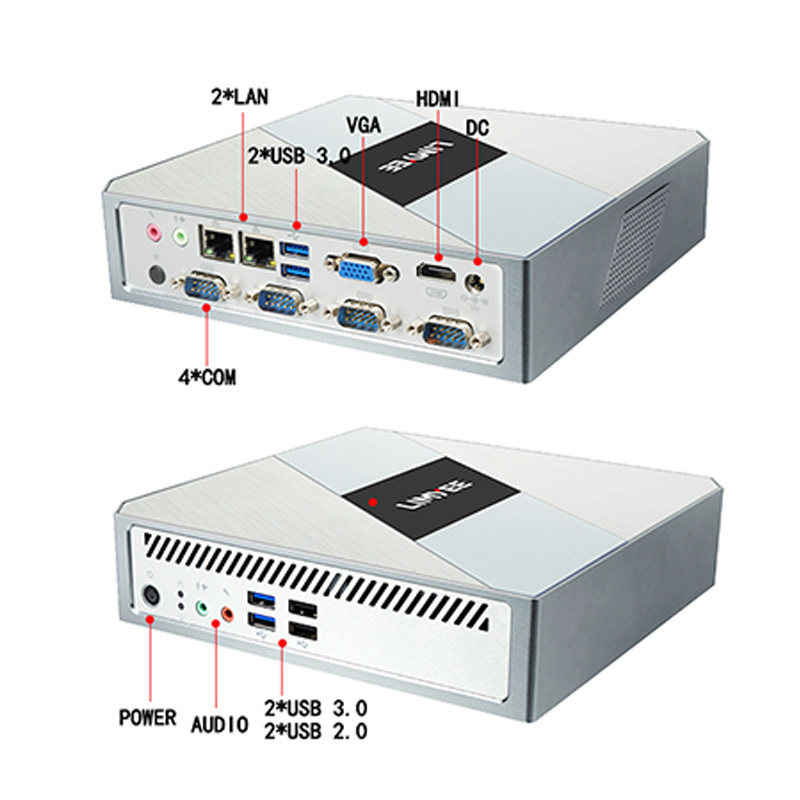

Front I/O
|
1 * Power on button (LED)
2 * LED (HDD, POWER) 1 * LINE OUT interface 1 * MIC-IN interface 2 * USB2.0 2 * USB3.0 (corresponding to motherboard) 2 * COM (reserved) |
|
|
|
|||
|
Power IN
|
1 * LINE OUT interface
1 * MIC-IN interface 1 * LAN interface 2 * USB2.0 interface 2 * USB3.0 interface 1 * VGA interface 1 * HDMI interface 1 * DC IN interface 1 * Antenna 4 * COM (reserved) 1 * M3 grounding screw hole |
|
|
|
|||
|
OS support
|
DC 12V power supply
|
|
|
|
|||
|
Power Adapter
|
Support for WIN10/Linux
|
|
|
|
|||
|
Certification
|
INPUT : 100-240V 50/60Hz ; Power consumption :≤60W; Output : 12.0V/5.0A
|
|
|
|
|||
|
Processor
|
CCC / CE / FCC/ RoHs
|
|
|
|
|||
Product Paramenters
Key Points:
-Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage
-Supports VGA and HDMI dual display (synchronous/asynchronous)
-Standard configuration of 6USB and 1LAN interfaces, expandable multi specification COM interfaces
-Supports 1 * Mini PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
-Supports both horizontal and vertical installation methods, and supports wall mounted installation
-The whole machine is divided into two types without/with fan, aluminum alloy housing, and air fluid mechanics heat dissipation design
-Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation
Whiskeylake&10th generation Cometlake U processors
-ESD Protection: ±6kV (Contact ), ± 12kV (Air)
-The product can be widely used in industrial equipment, GPS navigation, online environmental monitoring, government agencies, telecommunications, banks, power and other application fields,etc
Basic configuration:
BOX-1711-J1900/DDR3L 1333MHz 4GB/M-SATA 128GB
BOX-1711-J4125/DDR4 2133/2400MHz 4GB/M-SATA 128GB
BOX-1711-J6412/DDR4 3200MHz 4GB/M.2 2280 Sata 128GB
BOX-1711-6200U/DDR4 2133MHz 8GB/M.2 2280 NVME 256GB
BOX-1711-8145U/DDR4 2666MHz 8GB/M.2 2280 NVME 256GB
BOX-1711-J1900/DDR3L 1333MHz 4GB/M-SATA 128GB
BOX-1711-J4125/DDR4 2133/2400MHz 4GB/M-SATA 128GB
BOX-1711-J6412/DDR4 3200MHz 4GB/M.2 2280 Sata 128GB
BOX-1711-6200U/DDR4 2133MHz 8GB/M.2 2280 NVME 256GB
BOX-1711-8145U/DDR4 2666MHz 8GB/M.2 2280 NVME 256GB
