Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xunke
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500mm
-
Power (kW):
-
6
-
Weight (KG):
-
1050
-
Product name:
-
CNC Wood Working Machine
-
Spindle:
-
3/4.5/5.5kw/6kw Spindle
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Inverter:
-
Folinn Inverter
-
Motor:
-
Stepper Motor
-
Table structure:
-
Vacuum Table+ Aluminum T-slot
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
After Warranty Service:
-
Support Online Support
-
Working Voltage:
-
AC220V/AC380/50HZ/60HZ
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xunke
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500mm
-
Power (kW):
-
6
-
Weight (KG):
-
1050
-
Product name:
-
CNC Wood Working Machine
-
Spindle:
-
3/4.5/5.5kw/6kw Spindle
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Inverter:
-
Folinn Inverter
-
Motor:
-
Stepper Motor
-
Table structure:
-
Vacuum Table+ Aluminum T-slot
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
After Warranty Service:
-
Support Online Support
-
Working Voltage:
-
AC220V/AC380/50HZ/60HZ

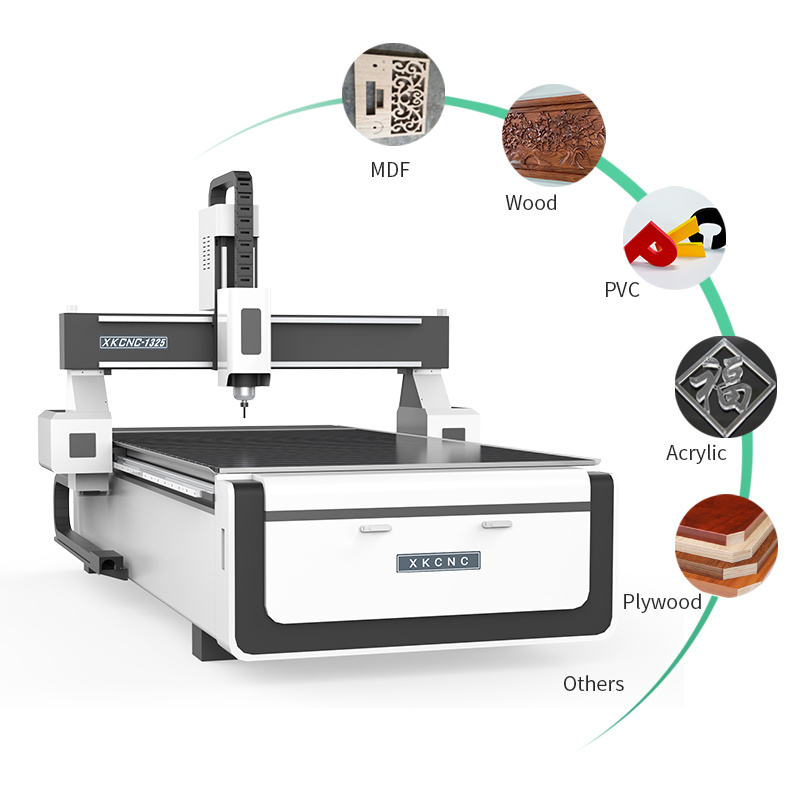

Xunke 1325 PVC MDF Plywood acrylic CNC Router cutting machine with vacuum table for Furniture making
Products Show
1325 cnc router is popular in advertising industry, it mainly used to cut acrylic, PVC, MDF, plywood and other materials. Besides, it can realize the engraving on stone like marble and granite, woodworking, etc.
Product's features
1325 cnc router is equipped with:
^High quality square rail and rack
^Nc studio control system, Mach 3 or DSP handle control
^High software compatibility
^Aluminum profile table and T-slot or vacuum table
^High speed step motor or servo motor
Product Paramenters
|
Model
|
XK-1325
|
|
Working area
|
1300×2500×200mm
|
|
Spindle
|
6kw air cooling spindle spindle
|
|
Motor
|
Stepper motor
|
|
Control system
|
NC Studio
|
|
Driven system
|
X, Y axis helical rack drive, Z axis Taiwan TBI ball screw
|
|
Working table
|
Intelligent protection of the work surface
|
|
Machine bed
|
Channel steel structure
|
|
Max speed
|
≥15m/min
|
|
Spindle speed
|
6000-24000rpm/min
|
|
Voltage
|
380V/50HZ
|
|
Software
|
Wentai, Jingdiao
|
|
Packing size
|
3200*2250*1830mm
|
|
Lubrication system
|
Automatic oil lubrication system
|
|
N.W./G.W.
|
900kg/1050kg
|
Quality control
Our company has six steps to guarantee the machine quality, from the start to the end. M
achine base is made by imported CNC processing center, which is imported from Italy. Besides, we also use
precise instrument to measure the precision of every part and finally, we will check the final products after cutting to make sure the the accuracy of machine cutting.
Application
1325 CNC Routers are computer-controlled engraving/milling/cutting machines. They can be used in the production of various different items, such as furniture, cabinet, signboards, wood panels, wooden frames, door carvings, prototyping & modeling, musical instruments, art crafts, and so on. It can also cut materials which are used widely in advertising industry like acrylic, PVC, MDF, double colors board, plywood, etc.
Exhibition
After-sales service
1. Q: How long is the delivery time?
A: Since the market is large, we have some stocks in factory, so if you need standard machines, we can ship the machine within 5 days, or you have special needs, we will ship the cnc router equipment to you from 10 to 20 days.
2. Q: Can you make customized router model?
A: Sure. We are manufacturers not trading company, we have our own R&D department, and cnc machine processing center for machine body making. We have some successful cases like machine with up-down table and special holding device. As long as you have specific requirements, we will definitely not let you down!
3. Q: I am the new comer, if I buy machine from you, will I get any help or support?
A: If you buy machines from us, we will sent manual and technical videos for you to know more about the machine firstly, after receiving the machine, we will provide one to one technical support online. Providing the best service is our aim.
4. Q: What’s the policy for the damaged parts?
A: We have one year warranty, if the parts break within the warranty, we will send replacement for free, but you need to take charge of the freight.
A: Since the market is large, we have some stocks in factory, so if you need standard machines, we can ship the machine within 5 days, or you have special needs, we will ship the cnc router equipment to you from 10 to 20 days.
2. Q: Can you make customized router model?
A: Sure. We are manufacturers not trading company, we have our own R&D department, and cnc machine processing center for machine body making. We have some successful cases like machine with up-down table and special holding device. As long as you have specific requirements, we will definitely not let you down!
3. Q: I am the new comer, if I buy machine from you, will I get any help or support?
A: If you buy machines from us, we will sent manual and technical videos for you to know more about the machine firstly, after receiving the machine, we will provide one to one technical support online. Providing the best service is our aim.
4. Q: What’s the policy for the damaged parts?
A: We have one year warranty, if the parts break within the warranty, we will send replacement for free, but you need to take charge of the freight.
5. Q: How can I do if cnc router machine goes wrong?
A: If any problems occur, please contact us as soon as possible instead of solving it by yourselves or other engineers.
A: If any problems occur, please contact us as soon as possible instead of solving it by yourselves or other engineers.
