Automatic High Precision Steel Coil Slitting Line Machine with cheaper price

Automatic High Precision Steel Coil Slitting Line Machine with cheaper price

FOB Reference Price: Get Latest Price

≥1 Sets

US $110000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Suitable material:: Cold steel,galvanized steel,HR

Tensile strength:: b≤440Mpa,0.2≤280Mpa

Coil thickness:: 0.4-3.0mm

Coil width:: 1500mm(Max.)

I.D. of coil:: 508mm

O.D. of coil:: 1600mm(Max.)

Coil Weight:: 15T(Max.)

Strip Weight:: 15T (Max.)

Strip width:: (depend on blade width)

Quick Details

Place of Origin:: Hebei, China

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: Automatic High Precision Steel Coil Slitting Line Machine

Suitable material:: Cold steel,galvanized steel,HR

Tensile strength:: b≤440Mpa,0.2≤280Mpa

Coil thickness:: 0.4-3.0mm

Coil width:: 1500mm(Max.)

I.D. of coil:: 508mm

O.D. of coil:: 1600mm(Max.)

Coil Weight:: 15T(Max.)

Strip Weight:: 15T (Max.)

Strip width:: (depend on blade width)

Product Description

Product Application

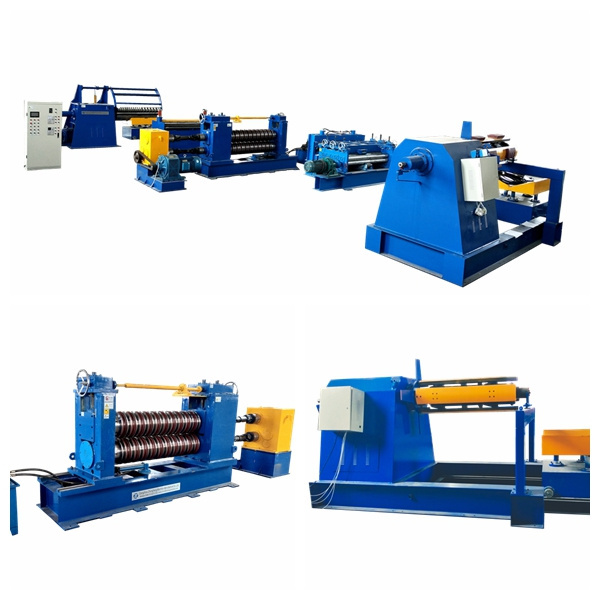

Automatic High Precision Steel Coil Slitting Line Machine Fast Speed 3x1500mm

Part 1 Hydraulic Decoiler

Suitable material	Cold steel,galvanized steel
Tensile strength	σb≤440Mpa，σ0.2≤280Mpa
Coil thickness	0.4－3.0mm
Coil width	1500mm（Max.）
I.D. of coil	508mm
O.D. of coil	1600mm（Max.）
Coil Weight	15T（Max.）

Part 2 Leveling and cut to length

Leveling machine has 5 roller up and 6 rollers down

Motor AC 7.5KW

Crop shear: Drive by oil hydraulic cylinder, cut off the crude steel plat head for following processing.

PART 3 Slitting Machine

Adopts Japanese Circle cutter, can shear different

Size strips .

Main axis material 40CR, diameter Φ240mm

Blade material: Cr12Mov

Motor :30 KW

Strips size adjustable

I.D. of strip	508mm
O.D. of strip	1600mm（Max.）
Strip Weight	15T （Max.)
Tolerance of width	+0.05mm
Strip width	(depend on blade width) customer reuqest
Stip Nos	7

PART 4 Tension Device

separated steel strip, which form a certain tension before send to the recoiler, to complete winding operation

PART 5 Recoiler

collect the steel strip after slitting closely

Motor: 22KW

Capacity 15 Ton

PART 6 Scrap recoiling machine

collect the trimmings cutting from the slitting machine

Certifications

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	27 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
