Quick Details
-
Width of bed (mm):
-
330
-
Max. Turned Length (mm):
-
3000 mm
-
Year:
-
2019
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-

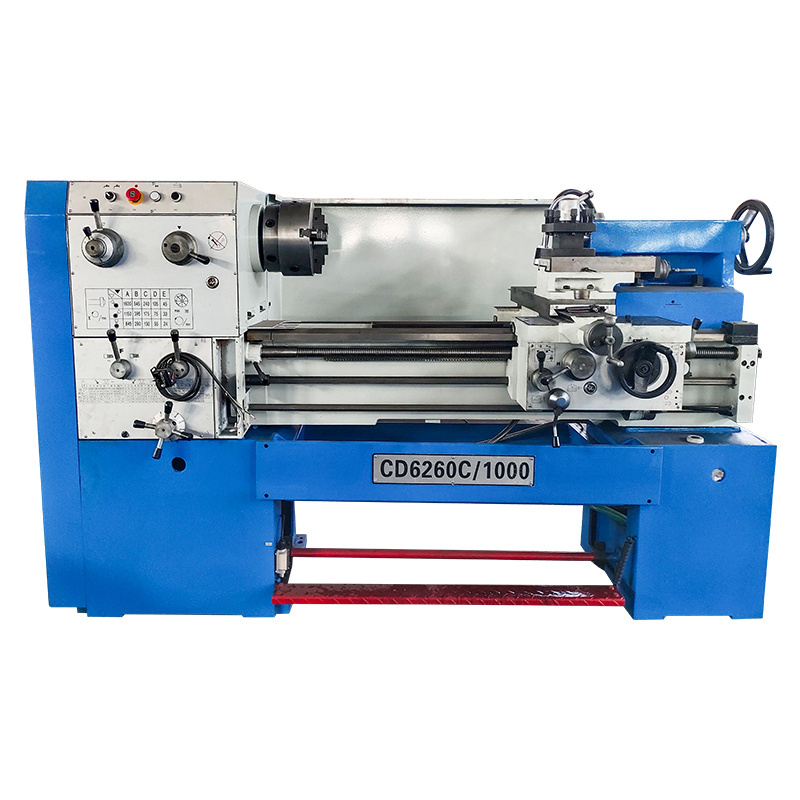

Model Number:
-
CD6260C
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
3460x1150x1800 mm
-
Weight (KG):
-
2250 KG
-
Automatic Grade:
-
Manual
-
Color:
-
Customized Option
-
Max swing over slide:
-
360mm
-
Max swing over gap:
-
730mm
-
Spindle nose:
-
IS0-D11
-
Effective length of gap:
-
260mm
-
Distance between centers:
-
2000mm
-
Max. Swing Diameter (mm):
-
600
-
Certification:
-
CE, ISO9001, BV
-
Power (kW):
-
5.5
Quick Details
-
Max. Length of Workpiece (mm):
-
2000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
82
-
Width of bed (mm):
-
330
-
Max. Turned Length (mm):
-
3000 mm
-
Year:
-
2019
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Model Number:
-
CD6260C
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
3460x1150x1800 mm
-
Weight (KG):
-
2250 KG
-
Automatic Grade:
-
Manual
-
Color:
-
Customized Option
-
Max swing over slide:
-
360mm
-
Max swing over gap:
-
730mm
-
Spindle nose:
-
IS0-D11
-
Effective length of gap:
-
260mm
-
Distance between centers:
-
2000mm
-
Max. Swing Diameter (mm):
-
600
-
Certification:
-
CE, ISO9001, BV
-
Power (kW):
-
5.5
♦Large plane structure, good looking
♦After quenching hard gear, precision grinding.
♦Dynamic balance of spindle parts
♦Various options: Metric system, British system, right hand wheel, multiple voltage, frequency,
with or without CE requirement’s protection and rapid moving system
♦Customizable CD6166C/CD6266C & Mechanical clutch
|
MODEL |
C D 6 240C |
C D 6 250C |
C D 6 260C |
C D 6 266C |
||||
|
Capacities
|
Max swing over bed |
420mm (16 ") |
500mm(19 3/5” ) |
600mm(23 3/5”) |
660mm ( 26 ”) |
|||
|
Max swing over slide |
225mn(9") |
325 mm( 13") |
360 mm (14") |
425nm(16 3/4” ) |
||||
|
Workpiece cutting length |
1000mm, 1500mm, 2000mm. 3000mm |
|||||||
|
Max swing over gap |
5 50 mm (21 1/2”) |
630mm(25”) |
730 mm (29”) |
790mm(31 1/16”) |
||||
|
Effective length of gap |
260mm (10 1/4" ) |
|||||||
|
Bed width |
330mm (13") |
|||||||
|
Headstock
|
Spindle hole |
80mm(3 3/16”)/ 103mm(4 1/16”) |
||||||
|
Spindle nose |
IS 0 -D8 / IS 0 -D11 |
|||||||
|
Spindle taper |
Metric 85mm / 115mm (1:20) |
|||||||
|
Spindlespeeds |
24-1600 rpm / 20-1200 rpm (15 steps) |
|||||||
|
Feeds
|
Metric threads range (kinds) |
0. 5-28mm (66 kinds) |
||||||
|
Inch threads range (kinds) |
1-56inch (66 kinds) |
|||||||
|
Module threads range (kinds) |
0. 5-3. 5m π (33 kinds) |
|||||||
|
Pitch threads range (kinds) |
8 - 56D.P (33 kinds) |
|||||||
|
Longitudinal feeds range (kinds) |
0.072-4.03 8mm /rev (0.0027-0.15 inch/rev) (66 kinds) |
|||||||
|
Cross feeds range (kinds) |
0.036-2 .019mm/ rev (0.0013-0.075 i nch/r ev) (66 kinds ) |
|||||||
|
R apid traverse speed |
5m/m in (16.4 ft/min ) |
|||||||
|
Leadscrew size: diameter/ pitch |
35mm/6mm or 35mm 1/4" |
|||||||
|
Carriage
|
Cross slide trave l |
300mm (12") |
||||||
|
Compound rest travel |
130mm (5") |
|||||||
|
Cross-section size of tool shank |
25mm X 25mm |
|||||||
|
Tailstock
|
Taper of tailstock sleeve |
MT5 |
||||||
|
Diameter of tailstock sleeve |
65mm (2 1/2”) |
|||||||
|
Travel of tailstock sleeve |
120mm (4 3/4") |
|||||||
|
Motor
|
Main motor power |
5. 5kw or 7. 5kw |
||||||
|
Cooling bump motor |
0.125kw |
|||||||
|
Rapid motor |
0.12kw |
|||||||
|
Center Distance Packing size(L * W * H) |
1000mm 2420X1150X 1800mm (96X46X71 inch) 1500mm 2920X1150X 1800mm (115X46X71 inch) 2000mm 3460X1150X1800mm (137X46X71 inch) 3000mm 4720X1150X 1800mm (186X46X71 inch) |
|||||||
|
Center Distance Net weight / gross weight (Kgs ) |
1000m m 1640/2290kg 1700/2350kg 1800/2500kg 1 860/2600kg 1500mm 1850/2550kg 1910/261 0 kg 2010/2760kg 2070/2860kg 2000mm 2090/2860kg 2150/2920kg 2250/3070kg 2310/3170kg 3000mm 2500/3300kg 2560/3360kg 2660/3500kg 2720/3600kg |
|||||||
