Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape
Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape
Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape
Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape
Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape
Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape
Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape
Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape

Assembly of LED light bar module and metal frame bezel thermally conductive adhesive tape

FOB Reference Price: Get Latest Price
≥100 Rolls
US $0.1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Design Printing:
No printing
Material:
silicone
Feature:
Heat-Resistant
Use:
MASKING
Place of Origin:
Fujian, China
Brand Name:
Naikos
Model Number:
NKS Series
Carrier:
Glass Fabric
Total thickness (mm:
0.10~0.50
Color:
White
Release Liner:
Blue PE Film
Adhesion (N/25mm):
12~18
Thermal Conductivity(W/m-k):
1.2
Voltage Resistance(KV/mm):
3.5~8.0
Temp Resistance(Short Term):
120(℃)
Temp Resistance(Long Term):
80(℃)

Quick Details

Adhesive:
Acrylic
Adhesive Side:
Double Sided
Adhesive Type:
Pressure Sensitive
Design Printing:
No printing
Material:
silicone
Feature:
Heat-Resistant
Use:
MASKING
Place of Origin:
Fujian, China
Brand Name:
Naikos
Model Number:
NKS Series
Carrier:
Glass Fabric
Total thickness (mm:
0.10~0.50
Color:
White
Release Liner:
Blue PE Film
Adhesion (N/25mm):
12~18
Thermal Conductivity(W/m-k):
1.2
Voltage Resistance(KV/mm):
3.5~8.0
Temp Resistance(Short Term):
120(℃)
Temp Resistance(Long Term):
80(℃)
Product Description

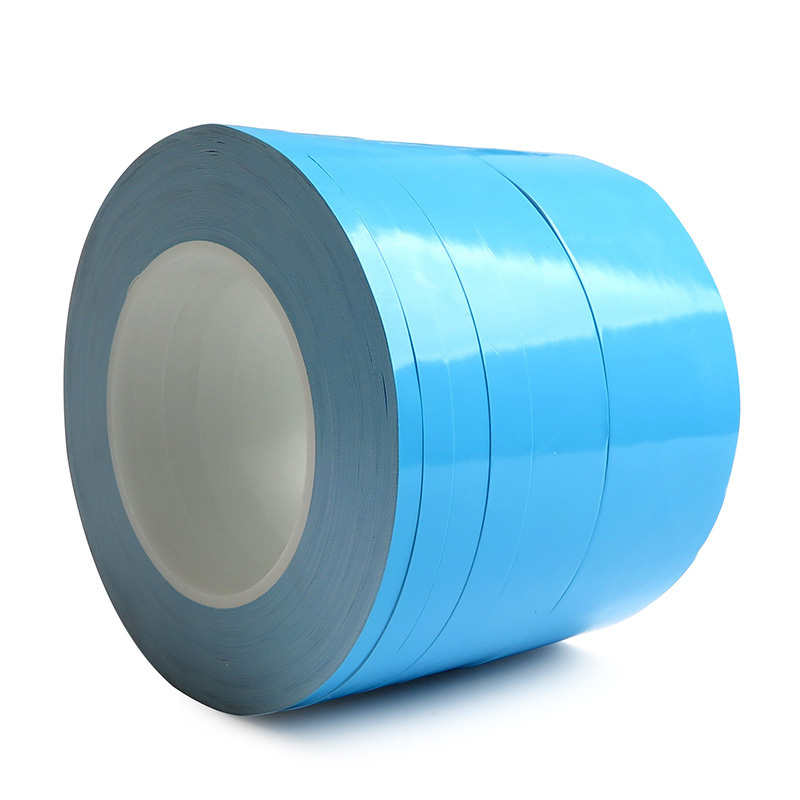

NKS Series Thermally Conductive Adhesive Tape
NKS series Thermally Conductive Adhesive Tapes are made of advanced thermal conductive PSA. They satisfy the demand of high adhesion and excellent thermal conductive efficiency by providing a preferential heat-transfer path between heat-generating components and heat sink or other cooling devices.
Specification
Features



High tacky thermal conductive PSA. Only pressure is needed to form an excellent bond and thermal interface
The performance of thermal conductivity, insulation, buffer and high tacky make it as the best choice for electronic application.



Flexible and conformable. Ideal for uneven surfaces.

Stable and economical with different thicknesses and constructions
Application Ideas
