Quick Details
-
Rated Voltage:
-
400V
-
Rated Current:
-
1440A
-
Speed:
-
1000rpm
-
Frequency:
-
50Hz
-
color:
-
yellow
-
Gas type:
-
Syngas
-
Control panel:
-
Com Ap
-
Engine brand:
-
ZICHAI
-
Options:
-
Oil Heater
-
Ignition system:
-
Woodword
-
CONTROLLER:
-
Digital Control
-
Power factor:
-
0.8lagging
-
Start method:
-
24V DC Electrical Start
-
Certification:
-
CE BV ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JICHAI
-
Model Number:
-
500GF-M
-
Rated Voltage:
-
400V
-
Rated Current:
-
1440A
-
Speed:
-
1000rpm
-
Frequency:
-
50Hz
-
color:
-
yellow
-
Gas type:
-
Syngas
-
Control panel:
-
Com Ap
-
Engine brand:
-
ZICHAI
-
Options:
-
Oil Heater
-
Ignition system:
-
Woodword
-
CONTROLLER:
-
Digital Control
-
Power factor:
-
0.8lagging
-
Start method:
-
24V DC Electrical Start
-
Certification:
-
CE BV ISO

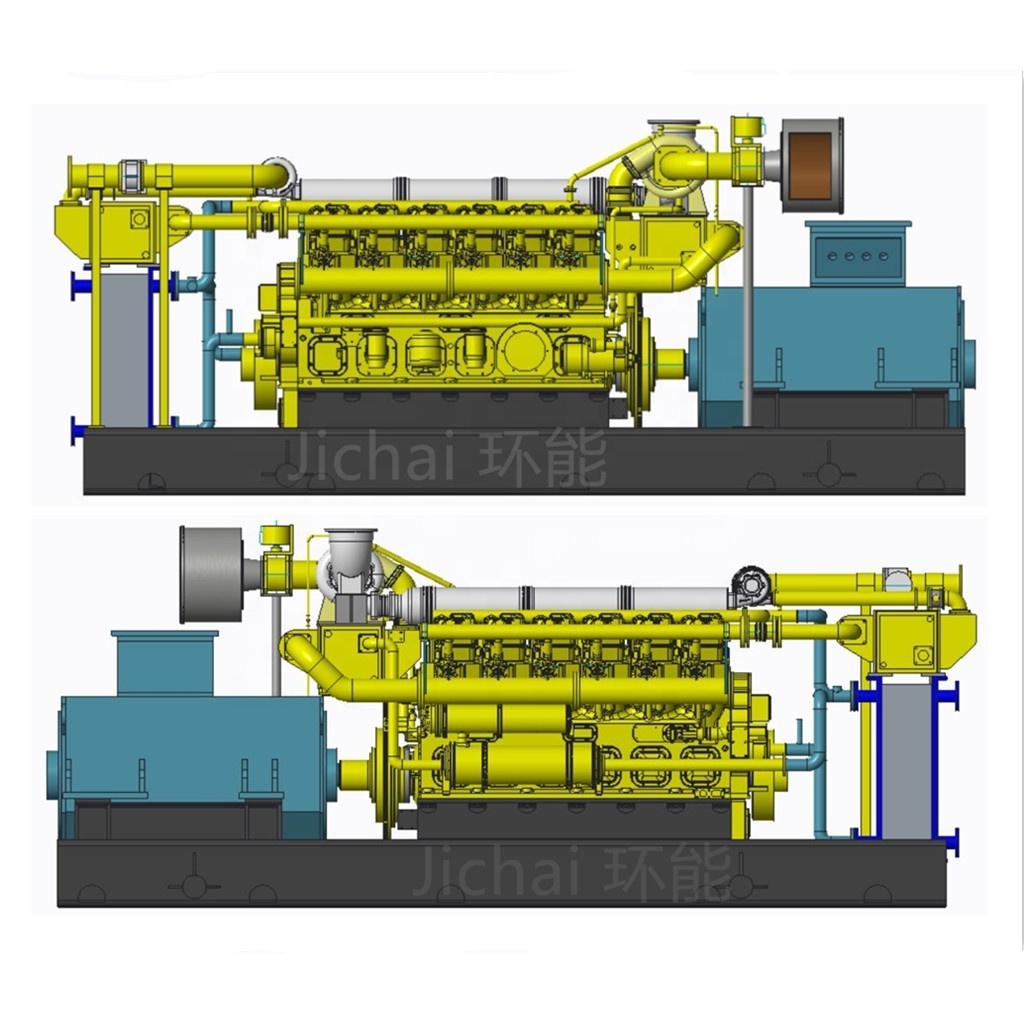

6mw high hydrogen engine electricity generator
6mw high hydrogen engine electricity generator
CORE FEATURES
· Low cost in maintenance.
· Large cylinder, Long Stroke, Low Speed, which means big reserve power capacity
and constant power output.
· Low Engine Speed at 500 or 600RPM.
· Naturally Aspirated, which means low failure rate and minimal downtime.
· Internal Mixing System (for high hydrogengas)
· Strong Treatment and Resistance ability against TAR.
· Long Overhaul Time of 60000 hours and lifecycle of 20-25 years.
· CE and ISO approved.
· Product range: Syngas generator, biogas generator, natural gas generator, biomass generator, wood gas generator,coal gas generator, coal bed gas generator, syngas generator,diesel generator etc.
6mw high hydrogen engine electricity generator
6mw high hydrogen engine electricity generator
|
Model of genset |
600kw |
|
Model of engine |
12V190M |
|
engine capacity |
215 |
|
cylinder number |
8 |
| cylinder bore | 190 |
| cylinder stroke | 215 |
|
Model of alternator |
600GFM |
|
Coupling method |
Elastic coupling |
|
Rated speed(r/min) |
1000 |
|
Rated power(kW/KVA) |
750/960 |
|
Rated voltage(V) |
415/240 |
|
Rated current(A) |
1391 |
|
Rated frequency(Hz) |
50 |
|
Rated power factor |
0.8 lagging |
|
Voltage regulation |
Automatic |
|
Supply connecting |
3 phase 4wire |
|
Governor |
EGS-01/02 (WOODWARD) |
|
Control model |
Remote electric control, Hand control |
|
Starting method |
24V DC electric starting motor |
|
Cooling method |
Water cooling system |
|
Electrical efficiency |
38% |
|
Heat Consumption |
≤ 9800kJ/kWh |
|
starting system |
24V electric motor |
|
Net weight(kg) |
15200 |
6mw high hydrogen engine electricity generator
6mw high hydrogen engine electricity generator
The worksite needs to meet following basic requirements:
a) Ambient temperature between -20℃~+40℃;
b) Relative humidity less than 90%(20℃);
c) Site elevation not higher than 2000m;
d) For outdoor installation, simple rain shelter is required.
6mw high hydrogen engine electricity generator
Gas Requirements
Within 1m to the intake valve of gas generator set:
1) Gas temperature≤40℃;
2) Gas Pressure: 2.5~10kPa, Pressure changing rate≤ 1kPa/min;
3) H2S≤200mg/Nm3;
5) Tar Content≤20mg/Nm3;
6) Moisture Content ≤20g/Nm3;
7) Impurity particle size≤5μm; impurity content≤30mg/Nm3;
8) Heat value≥4MJ/Nm3;WORKING CONDITION
6mw high hydrogen engine electricity generator
ACCESSORIES
2.All parts were from original factories or professional factories,complete in specification,keep good quality.
1. How to choose the right model?
6mw high hydrogen engine electricity generator2)For biomass power plant and coal gas power plant, some clients may doesn’t have gasification system, then we need information about raw material.
The warranty is one year. We will offer free service and spare parts during warranty period. Lifetime service will be provided by our trustworthy after-sale team.
Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.
Installation and commissioning of the genset would be instructed assisted by our technicians on site.
