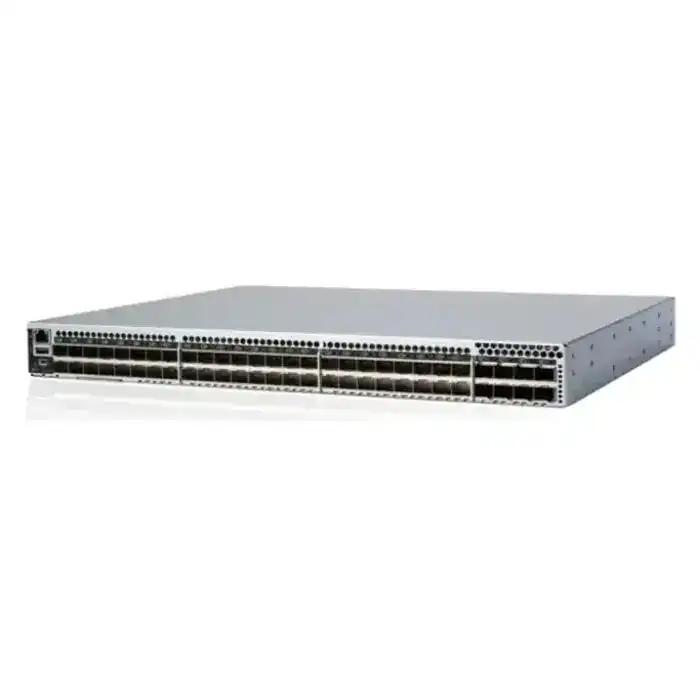

Brocade G730 San 128 Ports 96 64G SFP+ Switch Fiber Optic Network Switch

Fibre Channel ports

128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports,M_Ports, D_Ports, and EX_Ports.
48-port base configuration; additional ports are enabled with two 24-port SFP+ PODs (Ports on Demand), plus a 32-port SFP-DD POD
(16 2x64G SFP-DD transceivers), scaling the switch from 48 ports to 128 ports

Scalability

Full-fabric architecture with a maximum of 239 switches

Performance

Fibre Channel: 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s
line speed, full duplex; 57.8Gb/s line speed, full duplex; auto-sensing of 8, 10, 16, 32, and 64G port speeds. 10G* optionally
programmable to fixed-port speed. *:10G is only available in Europe, Middle East & Africa

ISL trunking

Frame-based trunking with up to eight SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk. Exchange-based load balancing across
ISLs with Dynamic Path Selection (DPS) included in Brocade Fabric OS.

Aggregate Bandwidth

8.192Tb/s

Maximum fabric latency

Latency for locally switched ports is 460 ns (including FEC).

Port types

D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port, optional port-type control

Size

Width: 440.00 mm (17.32 in.) Height: 86.7 mm (3.41 in.) Depth: 609.6 mm (24.00 in.)

System weight

18.92 kg (41.71 lbs) with two power supply FRUs and three fan FRUs, without transceivers
