Quick Details
-
Brand Name:
-
SAIER
-
Model Number:
-
SEN-HZG1WA-SS
-
Material:
-
Stainless Steel #304
-
Color:
-
Silver Color
-
Connection:
-
G / NPT 1" Straight Structure
-
Flow Range:
-
4-45L/Min
-
Pressure Performance:
-
1.75MPA
-
Line Specification and Install Direction:
-
could be Customized
-
Water Temperature:
-
less than 80 ℃
-
Operating Voltage Range:
-
DC4.5-18V, Could be customized 24V
-
Electrical Strengh:
-
AC500V 50HZ
-
OEM:
-
OEM service is available
Quick Details
-
Type:
-
Water Flow Sensor
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Model Number:
-
SEN-HZG1WA-SS
-
Material:
-
Stainless Steel #304
-
Color:
-
Silver Color
-
Connection:
-
G / NPT 1" Straight Structure
-
Flow Range:
-
4-45L/Min
-
Pressure Performance:
-
1.75MPA
-
Line Specification and Install Direction:
-
could be Customized
-
Water Temperature:
-
less than 80 ℃
-
Operating Voltage Range:
-
DC4.5-18V, Could be customized 24V
-
Electrical Strengh:
-
AC500V 50HZ
-
OEM:
-
OEM service is available

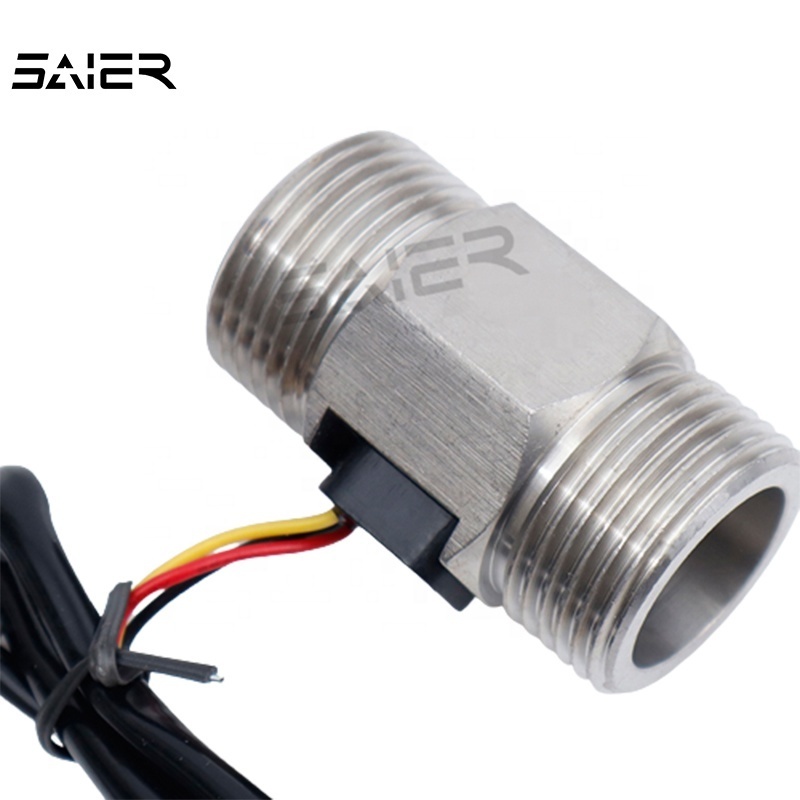

DN25 Stainless Steel Flow Meter 3-24v dc Magnetic Hall Effect Liquid Flow Sensor 4-45L/Min Turbine Flow Switch Water Flow Sensor
Product Description
|
Product Name
|
Miniature stainless steel flowmeter, turbine flow sensor
|
|
|
|
|
||||
|
Material
|
Stainless steel material
|
|
|
|
|
||||
|
Connection Size
|
G / NPT 1", DN25
|
|
|
|
|
||||
|
Flow Range
|
4-45 L/Min
|
|
|
|
|
||||
|
Contact Capacity
|
DC 5-24V, can be customized DC 3V
|
|
|
|
|
||||
|
Function
|
Measure water flow, It is installed in various coffee machines, water dispensers, and water inlets of electrolyzers to detect the influent flow.
|
|
|
|
|
||||
Impeller Flowmeter
Application: Coffee machine & capsule coffee machine.
Material: Food grade
