SUMORE Hot Selling Electric Hydraulic Press 30ton H Frame Small Hydraulic Press Machine Price SP-30

SUMORE Hot Selling Electric Hydraulic Press 30ton H Frame Small Hydraulic Press Machine Price SP-30

FOB Reference Price: Get Latest Price

≥1 Sets

US $1220

≥100 Sets

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Return Force (kN):: 300 kN

Place of Origin:: Shanghai, China

Brand Name:: SUMORE

Year:: 2021

Voltage:: 220v/380v or optional

Dimension(L*W*H):: 1160x550x1600mm

Weight (T):: 0.42 T

Model Number:: SP-30

Motor Power (kw):: 2.2 kw

Marketing Type:: Hot Product

Capacity:: 300KN

Pressure:: 25MPa

Travel:: 200+270mm

Table Size:: 300x400mm

Weight:: 420Kg

Dimension:: 1160x550x1600mm

Type:: H-frame

Function:: Metal Processing

Application:: Industrial Parts

Color:: as your requirement

Quick Details

Machine Type:: H Frame Hydraulic Press

Slide Stroke (mm):: 220+270mm

Ejector Force (kN):: 300

Return Force (kN):: 300 kN

Place of Origin:: Shanghai, China

Brand Name:: SUMORE

Year:: 2021

Voltage:: 220v/380v or optional

Dimension(L*W*H):: 1160x550x1600mm

Weight (T):: 0.42 T

Model Number:: SP-30

Motor Power (kw):: 2.2 kw

Marketing Type:: Hot Product

Capacity:: 300KN

Pressure:: 25MPa

Travel:: 200+270mm

Table Size:: 300x400mm

Weight:: 420Kg

Dimension:: 1160x550x1600mm

Type:: H-frame

Function:: Metal Processing

Application:: Industrial Parts

Color:: as your requirement

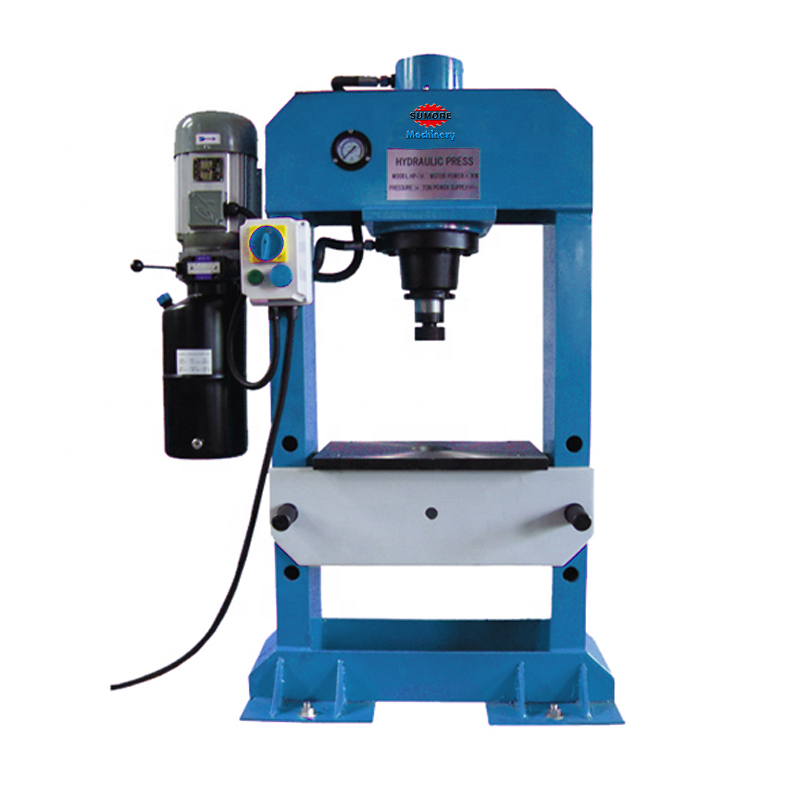

30ton Small Hydraulic Press Machine H Frame Type Gantry Press SP-30 Electric Manual Hydraulic Press SUMORE !!!

Product Description

SP series hydraulic press are used for assembling , dismantling , alignment , calendaring , tension , bendingand punching .

The machine supplied oil by Italy CNK and CBZpump . lt could save 60% energy compared with the traditional model .

The efficiency increased to 2-3 times .

Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility .

It takes the advantages of smal volume , high pressure , simple structure and light weight .

SPECIFICATION

Model	Capacity	Pressure	Travel	Table size	Dimension	Weight
SP-10	100kn	25mpa	200mm+200mm	260x300mm	1000x450x1200mm	220kgs
SP-20	200kn	25mpa	200mm+250mm	260x300mm	1160x550x1500mm	320kgs
SP-30	300kn	25mpa	200mm+270mm	300x400mm	1160x550x1600mm	420kgs
SP-50	500kn	25mpa	220mm+405mm	480x360mm	1500x650x1950mm	980kgs
SP-63	630kn	30mpa	220mm+405mm	400x500mm	1500x650x1950mm	1020kgs
