Quick Details
-
Model Number:
-
GEN-6392A01
-
Dimension:
-
281x233x214mm
-
Power Supply Mode:
-
DC/POE
-
SNR:
-
≥120dB
-
Output Power:
-
15W
-
Shell Material:
-
Aluminum
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.6KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/2.7A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
120dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
IP Rating:
-
IP65
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
GEN-6392A01
-
Dimension:
-
281x233x214mm
-
Power Supply Mode:
-
DC/POE
-
SNR:
-
≥120dB
-
Output Power:
-
15W
-
Shell Material:
-
Aluminum
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.6KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/2.7A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
120dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
IP Rating:
-
IP65
Product Parameters

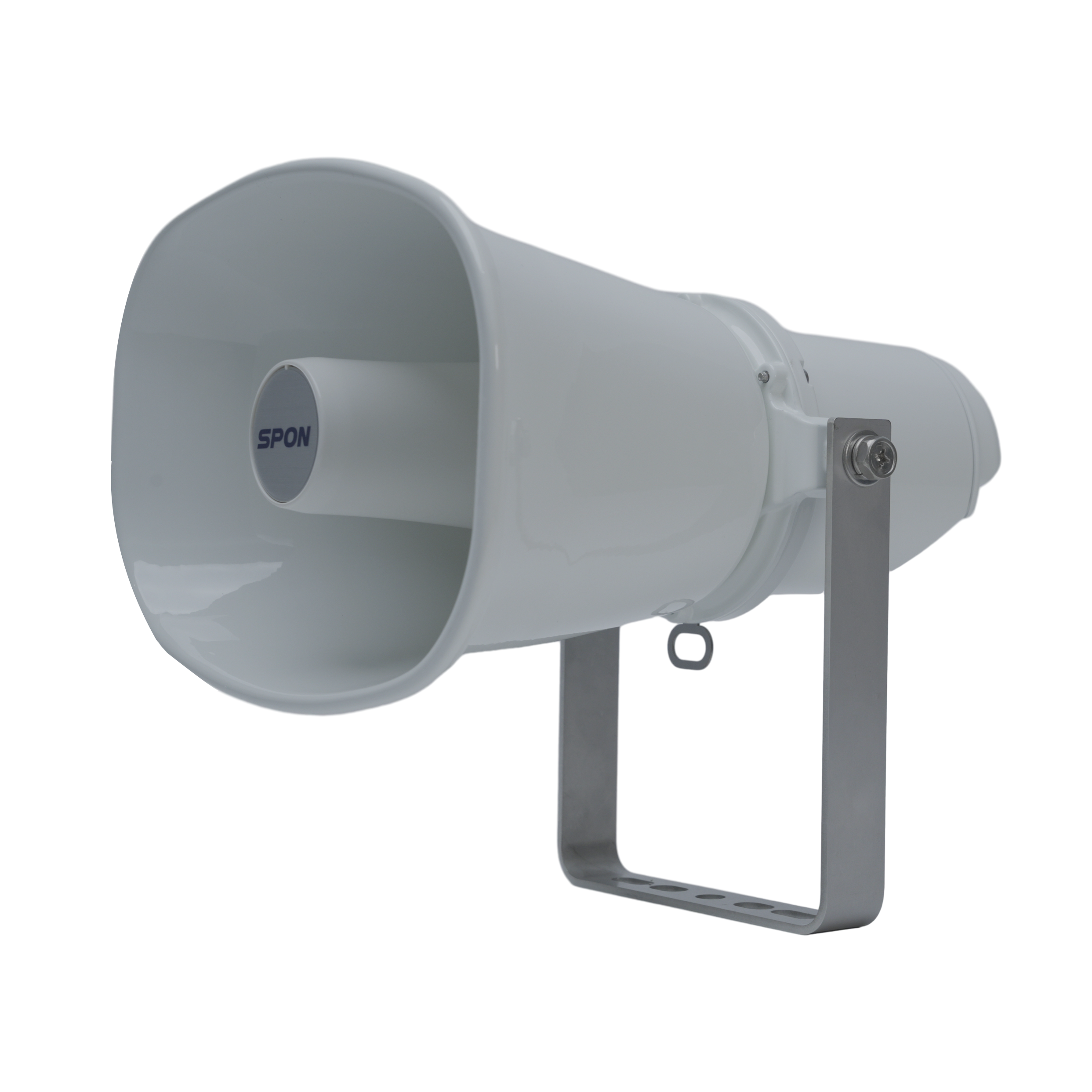

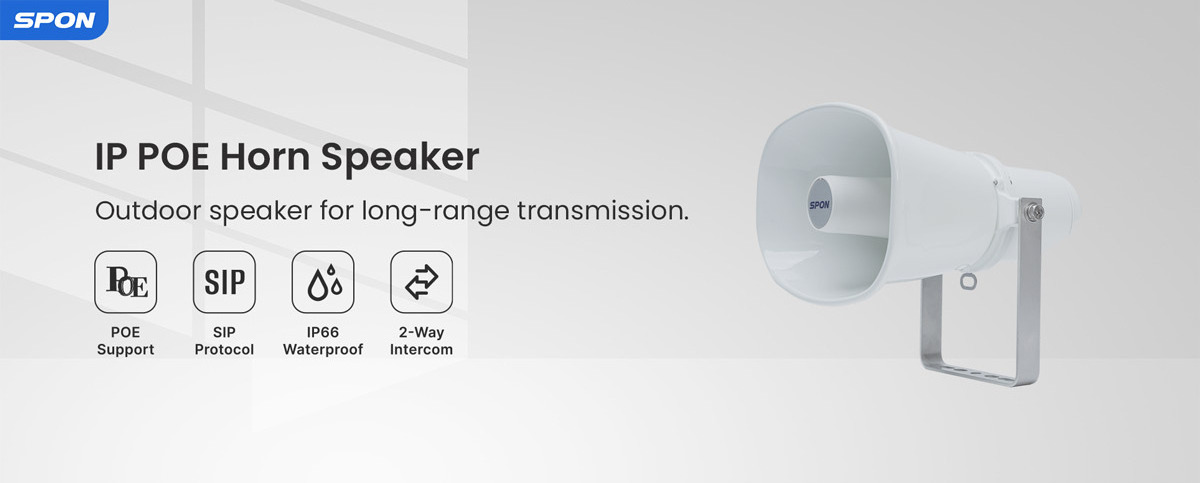

GEN-6392A01 IP Outdoor Horn Speaker
The SPON GEN-6392A01 IP PoE Horn Speaker is a SIP-compliant, multicast-capable IP Speaker suited for voice paging, loud ringing, and alert/notification solutions, especially in wide areas and high-noise places such as warehouses, manufacturing areas, and outdoor areas.
For non-SIP envirnonments the SPON IP65 Horn can be configured to listen to multicast addess and part number combinations to form paging zones.
|
Power
|
DC24V/1A or PoE (802.3at/af protocol)
|
|
|
|
|||
|
Standby Power Consumption
|
≤3W
|
|
|
|
|||
|
Power Output
|
10W
|
|
|
|
|||
|
Network Communication Protocols
|
HTTP, UDP, ARP, ICMP, IGMP, SIP, ONVIF
|
|
|
|
|||
|
Maximum Sound Pressure Level
|
120dB±3dB
|
|
|
|
|||
|
Sensitivity
|
109dB±3dB (1M/1W)
|
|
|
|
|||
|
Signal-to-Noise Ratio
|
≥85dB
|
|
|
|
|||
|
Frequency Response
|
100Hz-18kHz
|
|
|
|
|||
|
Microphone
|
Built-in
|
|
|
|
|||
|
Intercom Function
|
Supported
|
|
|
|
|||
|
Operating Temperature
|
-40℃～70℃
|
|
|
|
|||
|
Humidity
|
10%～90%RH (non-condensing)
|
|
|
|
|||
|
Product Dimensions
|
281x233x214mm
|
|
|
|
|||
|
Net Weight
|
1.6 kg
|
|
|
|
|||
Connection Topology
Dimensional Drawing
