The DYJz Automatic Wire Guiding and Winding Machine is a new and innovating automatic wire winding machine improved by our factory. The machine has the characteristics of stable transmission, high precision wire guiding system, low noise, stable tension, convenient and flexible operation, frequency conversion control, stepless speed regulation system, accurate counting,intelligent servo and man-machine interface control. It is an economical and practical product compared to equipment of the same kind.
- Product Details
- {{item.text}}
Quick Details
-
Center Height (mm):
-
950 mm
-
Max.Transformer Capacity(kVA):
-
800 kVA
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tongli
-
Motor Power (kw):
-
6.65
-
Weight (KG):
-
1500
-
Dimension(L*W*H):
-
2250*1100*1630mm
-
Wire Diameter Range (mm):
-
1 - 600 mm
-
Name:
-
dyjz-Automatic Winding Machine
-
Function:
-
Winding coil
-
Dimensions:
-
2250*1100*1630mm
-
Apply:
-
Spin
-
Max.Winding Speed:
-
480r/min
-
Advantage:
-
correct counting
-
PLC:
-
man-machine interface
-
Weight:
-
1500kg
-
Power:
-
6.65Kw
Quick Details
-
Max. Load (KG):
-
500 KG
-
Coil Type:
-
Wire coil
-
Length of Axis (mm):
-
600 mm
-
Center Height (mm):
-
950 mm
-
Max.Transformer Capacity(kVA):
-
800 kVA
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tongli
-
Motor Power (kw):
-
6.65
-
Weight (KG):
-
1500
-
Dimension(L*W*H):
-
2250*1100*1630mm
-
Wire Diameter Range (mm):
-
1 - 600 mm
-
Name:
-
dyjz-Automatic Winding Machine
-
Function:
-
Winding coil
-
Dimensions:
-
2250*1100*1630mm
-
Apply:
-
Spin
-
Max.Winding Speed:
-
480r/min
-
Advantage:
-
correct counting
-
PLC:
-
man-machine interface
-
Weight:
-
1500kg
-
Power:
-
6.65Kw
Products Description

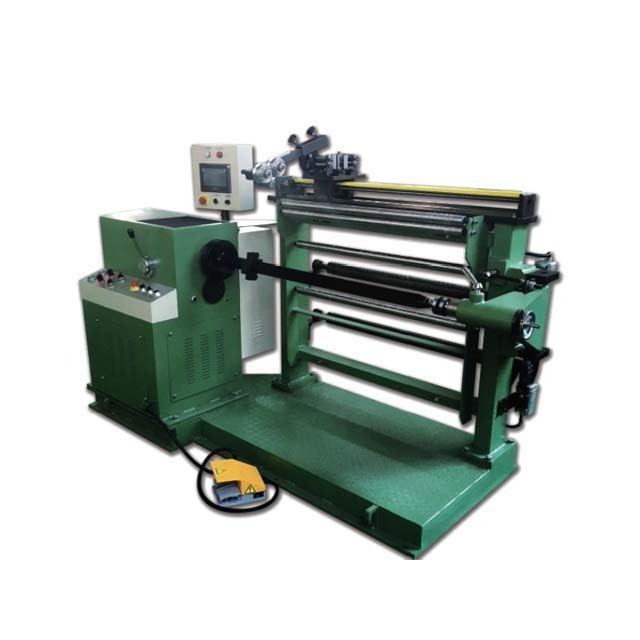

Automatic Wire Guiding an d Winding Machine
Product Paramenters
|
Item
|
Parameters
|
|
|
Center height
|
950mm
|
|
|
Max.winding diameter
|
600mm
|
|
|
Max.winding width
|
<=1000mm
|
|
|
Basic speed of output shafr
|
398r/min
|
|
|
Stepping range
|
0.1~5mm
|
|
|
Stepping accuracy
|
0.01mm
|
|
|
Counter max.set number of turins
|
9999.9
|
|
|
Max.output torque
|
130N.m
|
|
|
Max.Load capacity
|
500Kg
|
|
|
Wire specification
|
Flat wire Max 3*12mm
|
|
|
Total weight
|
1500Kg
|
|
|
Total power
|
6.65Kw
|
|
|
Outline dimension(L*W*H)
|
2250*1100*1630mm
|
|
|
Motion control system adopts the man-machine interface,PLC,servo,rows of host frequency control of motor speed.
|
|
|
|
Power holding function,reversible counting,presetting layer and layer number of turns
|
|
|
|
Delivery:90 days
|
|
|
Product packaging
Seaworthy Packaging and Transportation Condition
