- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-

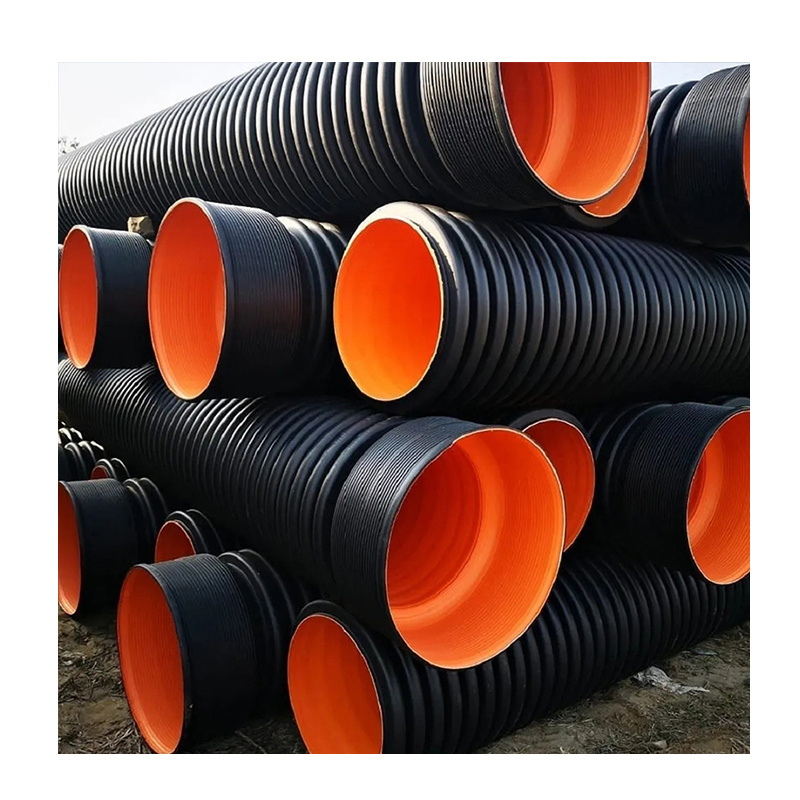

HDPE Double Wall Corrugated Drain Pipe
-
Specification:
-
SN4/SN8 corrugated pipe
-
Length:
-
5.8m/6m
-
Thickness:
-
Stardand Thickness
-
Standard:
-
GB/T19472.1-2004
-
Name:
-
HDPE Double Wall Corrugated UAE 36 Inch
-
Color:
-
Outside surface is black inside surface is black yellow or blue
-
Appearance:
-
Outside corrugated inside smooth
-
Connection:
-
Socket Joint
-
Application:
-
Drainage and Sewerage
-
Size:
-
50mm-2200mm corrugated pipe
-
Usage:
-
Buried underground
-
Temperature:
-
-60℃-60℃
-
OEM ODM:
-
Yes
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZhuoShi
-
Model Number:
-
HDPE Double Wall Corrugated Drain Pipe
-
Specification:
-
SN4/SN8 corrugated pipe
-
Length:
-
5.8m/6m
-
Thickness:
-
Stardand Thickness
-
Standard:
-
GB/T19472.1-2004
-
Name:
-
HDPE Double Wall Corrugated UAE 36 Inch
-
Color:
-
Outside surface is black inside surface is black yellow or blue
-
Appearance:
-
Outside corrugated inside smooth
-
Connection:
-
Socket Joint
-
Application:
-
Drainage and Sewerage
-
Size:
-
50mm-2200mm corrugated pipe
-
Usage:
-
Buried underground
-
Temperature:
-
-60℃-60℃
-
OEM ODM:
-
Yes
Applications:
1.Sewer and drainage
2.Frontage drains for terrace and other residential units in housing schemes
3.Perimeter drains for commercial, industrial units and individual factories
4.As collector drains in subsoil system in road, highway, open field, stadium, retaining wall or parking space
5.As collector drains in subsoil system, sewerage treatment plant sludge drying bed under drains
|
The Specification of HDPE Double-Wall Corrugated Pipe (mm)
|
|
|
|
|
|
|
||||||
|
DN/ID
|
Min ID
|
OD
|
O.D.tolerance
|
Min Thinkness
|
Bellmouth ID
|
Min Bellmouth ID
|
||||||
|
225
|
220
|
255
|
±3
|
≥1.7
|
264-269
|
≥55
|
||||||
|
300
|
294
|
330
|
±3
|
≥2.0
|
348-351
|
≥64
|
||||||
|
400
|
392
|
456
|
±3
|
≥2.5
|
465-469
|
≥74
|
||||||
|
500
|
490
|
572
|
±3
|
≥3.0
|
549-553
|
≥85
|
||||||
|
600
|
588
|
690
|
±3
|
≥3.5
|
668-672
|
≥96
|
||||||
|
800
|
785
|
925
|
±3
|
≥4.5
|
888-895
|
≥118
|
||||||
