Products Description
MDHYDS6H

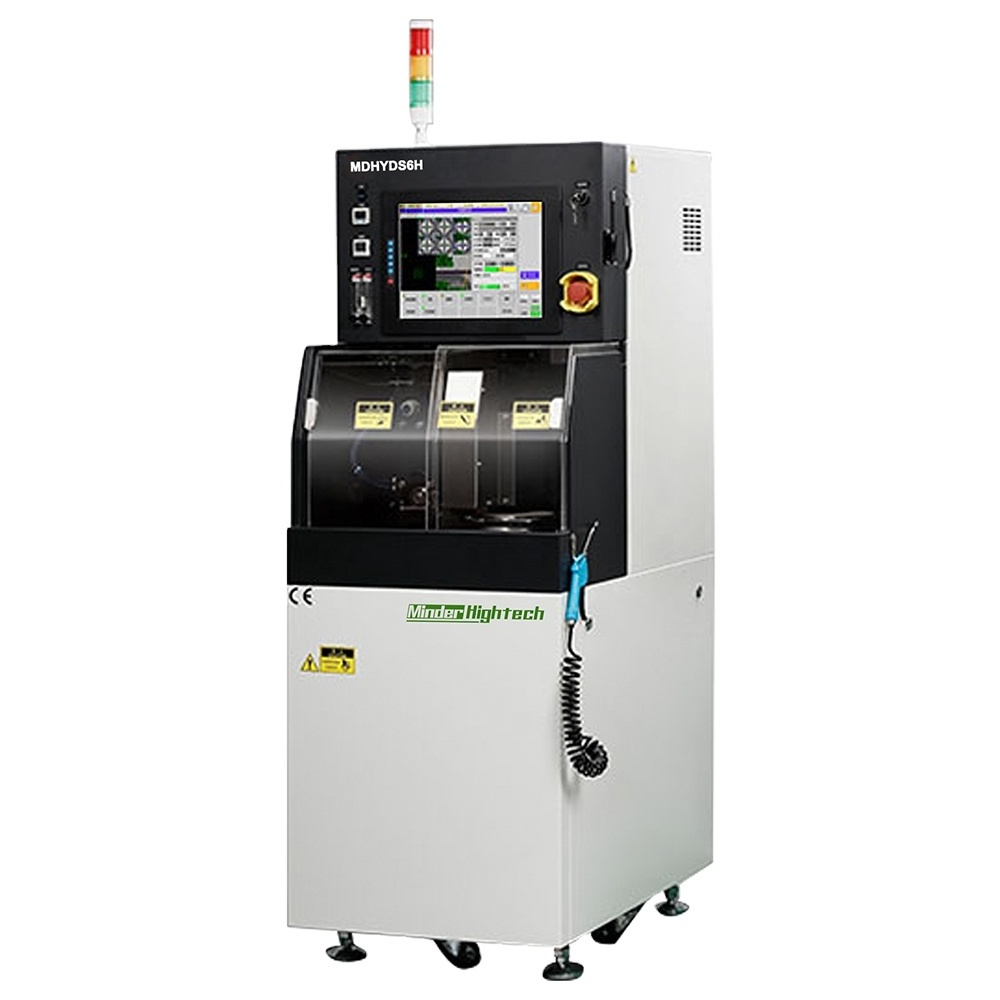

MDHYDS6H 6inch Dicing saw for semiconductor industry
MDHYDS6L
MDHYDS6L 6inch Dicing saw for semiconductor industry
MDHYDS6M
MDHYDS6M 6inch Dicing saw for semiconductor industry
precision scribing machine is equipped with imported high-power DC spindle; θ-axis imported DD motor drive; imported high-precision lead screw and guide rail, higher movement accuracy; double lens alignment accuracy is higher; software functions are further strengthened, and the degree of automation is significantly improved .
Specification
|
|
|
|
MDHYDS6L
|
MDHYDS6M
|
MDHYDS6H
|
||
|
Spec
|
dicing size
|
mm
|
ф6”〡□150
|
ф6”〡□150
|
ф6”〡□150
|
||
|
|
dicing depth
|
mm
|
≤4mm or custom
|
≤4mm or custom
|
≤4mm or custom
|
||
|
Main spindle
|
rotaty speed
|
minˉ¹
|
3000∽40000
|
10000∽50000
|
10000∽50000
|
||
|
|
power
|
kW
|
AC,1.25at40000minˉ¹
|
AC,1.5at50000minˉ¹
|
DC,1.5at50000minˉ¹
|
||
|
X axis
|
stroke
|
mm
|
250
|
250
|
250
|
||
|
|
speed range
|
mm/s
|
0.1∽400
|
0.1∽400
|
0.1∽500
|
||
|
Y axis
|
stroke
|
mm
|
170
|
170
|
170
|
||
|
|
resolution
|
mm
|
0.0001
|
0.0001
|
0.0001
|
||
|
|
single move accuracy
|
mm
|
≤0.003/5
|
≤0.003/5
|
≤0.002/5
|
||
|
|
F accuracy
|
mm
|
≤0.005/170
|
≤0.005/170
|
≤0.004/170
|
||
|
Z axis
|
stroke
|
mm
|
30
|
30
|
30
|
||
|
|
max blade size:
|
mm
|
ф58
|
ф58
|
ф58
|
||
|
|
resolution
|
mm
|
0.0001
|
0.0001
|
0.0001
|
||
|
|
accuracy
|
mm
|
0.001
|
0.001
|
0.001
|
||
|
R axis
|
rotary range
|
deg
|
380
|
380
|
380
|
||
|
Basic required
|
power
|
KVA
|
3.0（single phase，AC220V）
|
3.0（single phase，AC220V）
|
3.0（single phase，AC220V）
|
||
|
|
air
|
Mpa L/min
|
0.5∽0.6max consumption180
|
0.5∽0.6max consumption200
|
0.5∽0.6max consumption200
|
||
|
|
cutting fluid
|
Mpa L/min
|
0.2∽0.3max consumption3.0
|
0.2∽0.3max consumption3.5
|
0.2∽0.3max consumption3.5
|
||
|
|
cooling water
|
Mpa L/min
|
0.2∽0.3max consumption1.5
|
0.2∽0.3max consumption1.5
|
0.2∽0.3max consumption1.5
|
||
|
|
exhaust
|
m³/min
|
1.5
|
1.5
|
1.5
|
||
|
|
size
|
mm
|
580*910*1650
|
580*910*1650
|
580*910*1650
|
||
|
|
weight
|
kg
|
500
|
500
|
500
|
||
Detail
Features:
√ Standard non-contact height measurement function (NCS)
√ Standard tool mark detection function
√ Optional blade breakage detection function (BBD)
√ Optional workpiece shape detection function
√ Optional data scanning input function
√ Standard tool mark detection function
√ Optional blade breakage detection function (BBD)
√ Optional workpiece shape detection function
√ Optional data scanning input function
Conditions of Use:
1. Please set the machine in an environment of 20~25ºC (the fluctuation range is controlled within ±1ºC); the indoor humidity should be 40%~60%, keep constant without condensation.
2. Please use clean compressed air with atmospheric pressure dew point below -15ºC, residual oil content of 0.1ppm and filtration degree above 0.01um/99.5.
3. Please control the water temperature of the cutting water to room temperature 2ºC (fluctuation range within ±1ºC), and control the cooling water temperature to be the same as room temperature (fluctuation range control within ±1ºC).
4. Please avoid the device from gravitational impact and any external vibration threats. In addition, please do not install the equipment near blowers, vents, devices that generate high temperatures, and devices that generate oil.
5. Please install this equipment on a waterproof floor and a place with drainage treatment.
6. Please operate strictly in accordance with the company's product instruction manual.
2. Please use clean compressed air with atmospheric pressure dew point below -15ºC, residual oil content of 0.1ppm and filtration degree above 0.01um/99.5.
3. Please control the water temperature of the cutting water to room temperature 2ºC (fluctuation range within ±1ºC), and control the cooling water temperature to be the same as room temperature (fluctuation range control within ±1ºC).
4. Please avoid the device from gravitational impact and any external vibration threats. In addition, please do not install the equipment near blowers, vents, devices that generate high temperatures, and devices that generate oil.
5. Please install this equipment on a waterproof floor and a place with drainage treatment.
6. Please operate strictly in accordance with the company's product instruction manual.
Application areas:
diodes, triodes, LED packaging, NTC, MEMS, IC, photovoltaics, medical devices, scintillation crystals
Precision cutting materials
silicon wafer, PCB board, EMC, ceramics, glass, quartz, gallium arsenide, lithium niobate, sapphire, crystal
Auto focus function:
Through the visual algorithm, coordinated with the motion control, the lens can be automatically raised and lowered, and the clear position of the workpiece image can be quickly obtained.
