Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingan
-
Model Number:
-
K1A190-DFN-92 (48V)
-
Voltage:
-
12/24/18V
-
Material:
-
PA66 fibreglass-reinforced
-
Feature:
-
Low Noise Power Saving
-
Direction of rotation:
-
Anticlockwise, seen on leads
-
Type of protection:
-
IP42
-
Bearing:
-
Ball bearing
-
Insulation class:
-
B
-
Amb.Temp:
-
-25~60℃
-
Certification:
-
ce
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Electric Current Type:
-
EC
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingan
-
Model Number:
-
K1A190-DFN-92 (48V)
-
Voltage:
-
12/24/18V
-
Material:
-
PA66 fibreglass-reinforced
-
Feature:
-
Low Noise Power Saving
-
Direction of rotation:
-
Anticlockwise, seen on leads
-
Type of protection:
-
IP42
-
Bearing:
-
Ball bearing
-
Insulation class:
-
B
-
Amb.Temp:
-
-25~60℃
-
Certification:
-
ce

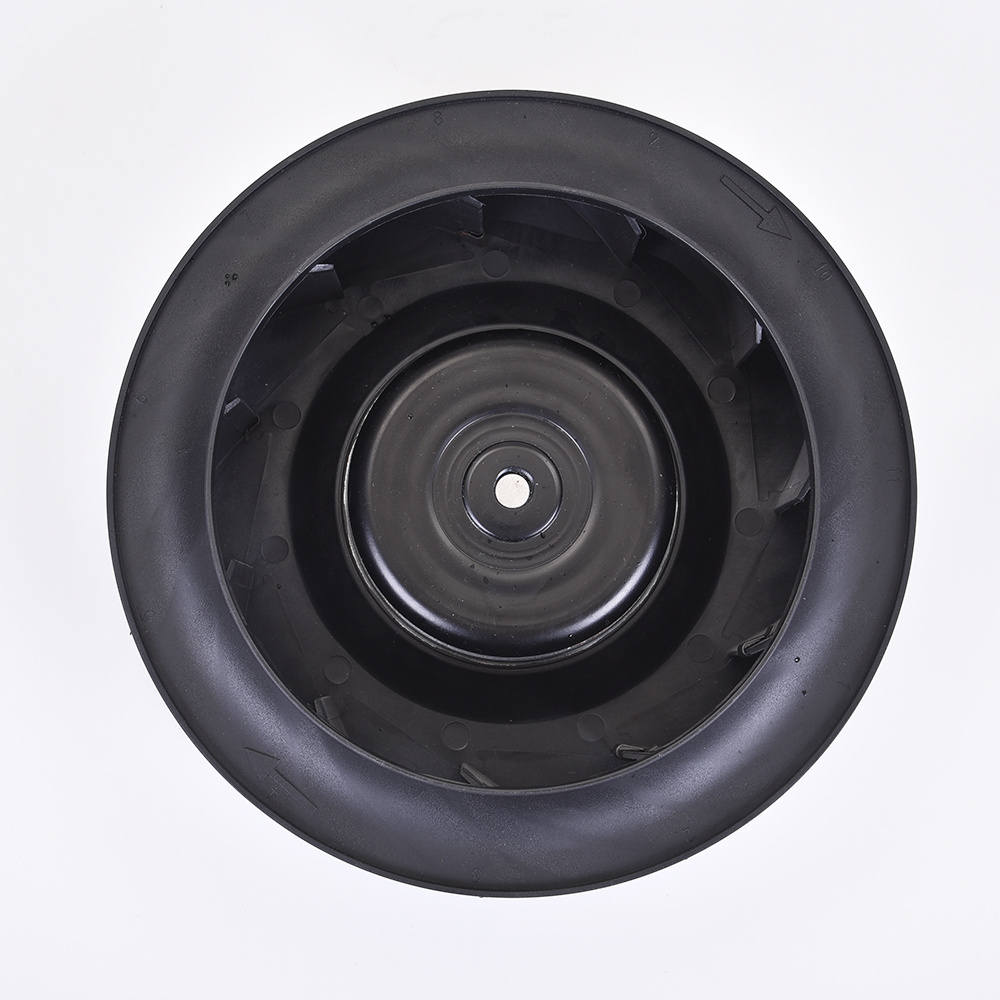

DC brushless backward curved centrifugal blower fan 190mm impeller
Product Description
Material: Impeller PA66, fibreglass-reinforced
Number of blades: 11
Direction of rotation: Anticlockwise, seen on leads
Type of protection: IP42
Bearing: Ball bearings
Insulation class: "B"
Technical features: Control lnput 0-10V DC/PWM
Tach output
Protection: Locked-rotor protection, Current limitedsoft start
Amb.Temp: -20~60℃
Product Parameters
|
Model
|
Rated Voltage
(VDC)
|
Range Voltage
(VDC)
|
Air Flow
(m3/h)
|
Speed
(rpm)
|
Power Input
(W)
|
Current
(A)
|
Static Pressure (Pa)
|
|
K1A190-DAN-92
|
12V
|
10-15V
|
500
|
3000
|
70
|
5.8
|
580
|
|
K1A190-DCN-92
|
24V
|
16-28V
|
560
|
3250
|
80
|
3.7
|
640
|
|
K1A190-DFN-92
|
48V
|
36-57V
|
560
|
3200
|
71
|
1.65
|
640
|
Dimension Drawing
