Quick Details
-
Color:
-
Customized Color
-
Application:
-
industrial / household / hospital
-
Dimension:
-
1460*910*7750mm
-
Advantage:
-
smokeless
-
Voltage:
-
380v/220v
-
Service:
-
24 Hours Online service
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Shandong, China
-
Name:
-
smokeless small waste incinerator for sale
-
Capacity:
-
20-500kgs/batch
-
Color:
-
Customized Color
-
Application:
-
industrial / household / hospital
-
Dimension:
-
1460*910*7750mm
-
Advantage:
-
smokeless
-
Voltage:
-
380v/220v
-
Service:
-
24 Hours Online service
-
Certification:
-
ISO9001

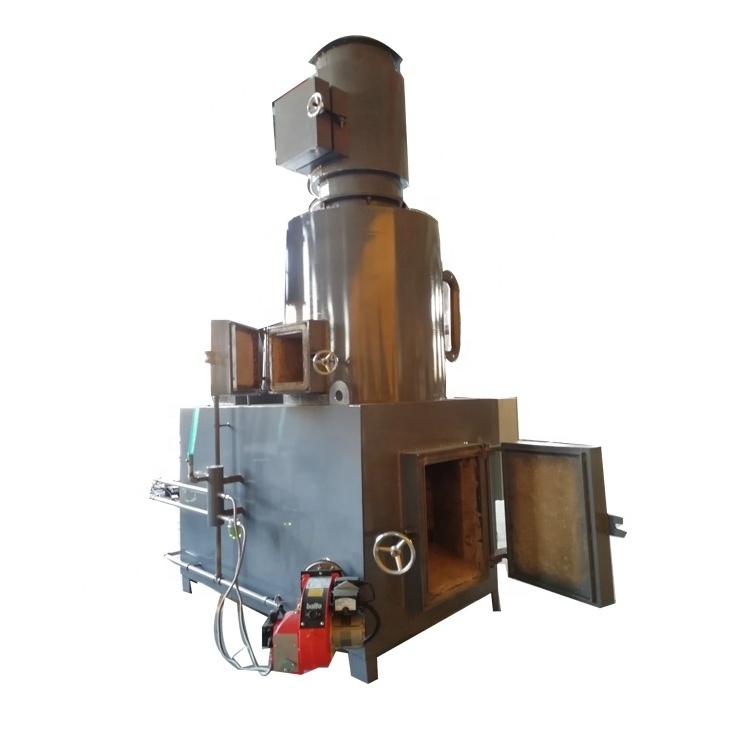

smokeless small scale waste incinerator for sale is a kind of waste treatment method, Incinerators reduce the solid mass of the original waste by 80–85% and the volume reduced by 95–96%. The highest temperature of incinerator runing can reach 1100-1300 degrees Celsius, which can achieve the effect of sterilization and disinfection. There will be no smoke, no smell, no pollution after waste be burning.
There are four chambers, two combustors for friendly environment in waste incinerator. There will be no smoke, no smell, no pollution after be burning.
it was devided into : primary combustion chamber,second combustion chamber,mixture of combustion chamber ,smoke purification chamber and chimney.
- Garbage waste enters the combustion chamber and is fully oxidized and burned to generate flue gas.
- Then the gas will enter second combustion room,burning at high temperatures to completely burn harmful gases
- By subsequent equipment to remove harmful substances such as dust and acid gases
- Finally,the exhausted gas will be no smoke,no smell,no pollution.
Advantage
(1) It is easier to operate than other manufacturers' incinerators.There is an air blower inside of burner. It is for protection burner. And the air blower is automatic. no need to operate it. When you close the burner, the air blower will be stop automatically at a certain time.
(2) Gasified pyrolysis incineration is used for burning many kinds of waste.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust, dioxin etc.
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(5) Compact structure and small land occupation.
Technical Data
There are several models incinerator you can choose
| Model | TL30 | TL50 | TL150 | TL300 | TL500 |
| Buring Cpacity | 20-30kg/time (3-6 times/day) | 30-50kg/time (3-6 times/day) | 100-150kg/time (3-6times/day) | 200-300kg/time (3-6times/day) | 300-500kg/time (3-6times/day) |
| Incinerator Size m (L*H*B) | 1.45*0.9*1.75 | 1.8*1.15*3 | 2*1.4*3.5 | 2.2*1.4*3.8 | 3**2*4.8 |
| Imputing Mouth Width (mm) | 480*600 | 620*800 | 760*960 | 900*1100 | 1080*1280 |
|
Chimney External Diameter
(mm)
|
280 | 280 | 300 | 400 | 460 |
| Draught Fan | 0.37kw | 0.37kw | 0.5kw | 1.1kw | 1.1kw or 0.55kw |
| Combustion Improver Device |
0.11kw
Oil consumption: 4-6kg/h
|
0.11kw
Oil consumption: 4-10kg/h
|
0.11kw
Oil consumption: 5-12kg/h
|
0.11kw
Oil consumption: 7-14kg/h
|
0.11kw
Oil consumption: 7-14kg/h
|
| Re-Burning Device |
0.11 kw
Oil consumption 4-6 kg/h
|
0.11 kw
Oil consumption 4-10kg/h
|
0.11 kw
Oil consumption 7-14kg/h
|
0.11 kw
Oil consumption 10-20 kg/h
|
0.11 kw
Oil consumption 15-26 kg/h
|
| Voltage | 380v or 220v | 380v or 220v | 380v or 220v | 380v or 220v | 380v or 220v |
Package
By standand seaworthy package for medical/animal carcess/industrical waste incinerator
