Quick Details
-
Product Name:
-
Mix Fluid Nozzle
-
Series:
-
Tank Mixing Eductor Nozzle
-
Material:
-
PP, PVC, PVDF
-
Thread Size:
-
1/4", 3/8", 1/2", 3/4", 1", 1.5"
-
Spray pattern:
-
Flat fan
-
Pressure range:
-
0.5---4 bar
-
Inlet Flow Rate:
-
9.8~308 L/min
-
Circulation Rate Range:
-
52~1540 L/min
-
Coverage:
-
0.91~14 m
-
Application:
-
Gas Cooling, Dust Suppression, Gas Purification
Quick Details
-
Weight (KG):
-
0.4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XR
-
Product Name:
-
Mix Fluid Nozzle
-
Series:
-
Tank Mixing Eductor Nozzle
-
Material:
-
PP, PVC, PVDF
-
Thread Size:
-
1/4", 3/8", 1/2", 3/4", 1", 1.5"
-
Spray pattern:
-
Flat fan
-
Pressure range:
-
0.5---4 bar
-
Inlet Flow Rate:
-
9.8~308 L/min
-
Circulation Rate Range:
-
52~1540 L/min
-
Coverage:
-
0.91~14 m
-
Application:
-
Gas Cooling, Dust Suppression, Gas Purification

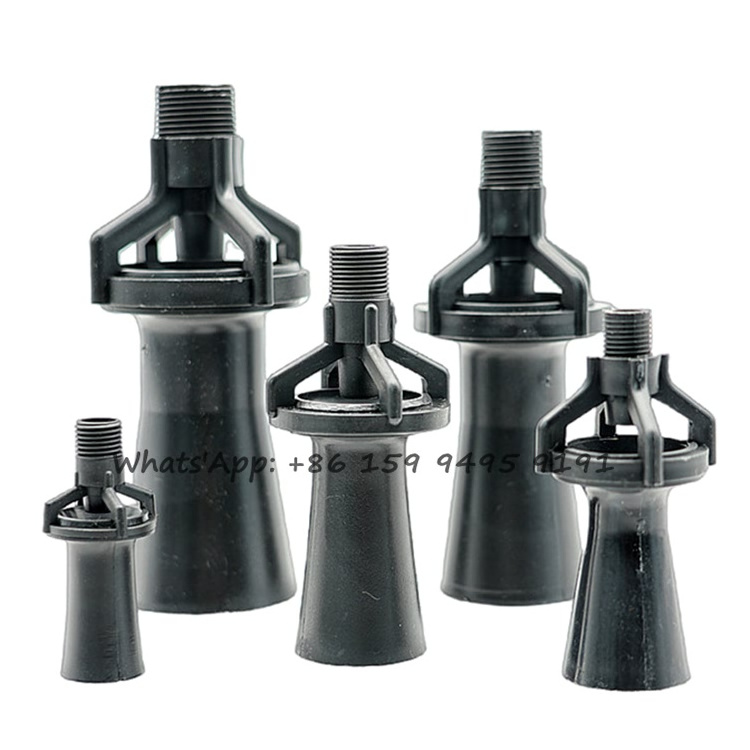

Hot Sale 1/4" 3/8" 1/2" 3/4" Mixing Flow Jet Venturi Injector Nozzle, Washing Tank Spray Eductor Venturi Fluid Mixing Nozzle
| Product Name | Mix Fluid Nozzle |
| Material | PP, PVC, PVDF |
| Thread Size | 1/4", 3/8", 1/2", 3/4", 1", 1.5" |
| Spray pattern | Flat fan |
| Pressure range | 0.5---4 bar |
| Inlet Flow Rate | 9.8~308 L/min |
| Circulation Rate Range | 52~1540 L/min |
| Coverage | 0.91~14 m |
| Application | Gas Cooling, Dust Suppression, Gas Purification |
| Features |
1.Effective, economical way to circulate liquids in closed or open tanks
2.Venturi effect on fluid flow, the output rate 1:4 3.The volume of discharge liquid will be greater than the motive liquid pumped enables smaller pumps to circulate large volumes of tank solution 4. Multiple materials and dimensions are provided |
