Quick Details
-
Dimension(L*W*H):
-
10*1.6*3.5
-
Voltage:
-
380v
-
Power:
-
22kw
-
Weight (KG):
-
10000
-
Product Name:
-
Wood Charcoal Carbonization Furnace
-
Advantage:
-
Continuous Working Environment Friendly
-
Fuel:
-
Firewood
-
Carbonization time:
-
6-8 Hours
-
Color:
-
Customers Requirement
-
Cooling Time:
-
8-9 Hours
-
Quality:
-
Reliable Structure
-
Raw material:
-
Biomass Material
-
Model:
-
Customers Requirement
-
Power(W):
-
31KW
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGJU
-
Effective Volume:
-
Depend on different model
-
Dimension(L*W*H):
-
10*1.6*3.5
-
Voltage:
-
380v
-
Power:
-
22kw
-
Weight (KG):
-
10000
-
Product Name:
-
Wood Charcoal Carbonization Furnace
-
Advantage:
-
Continuous Working Environment Friendly
-
Fuel:
-
Firewood
-
Carbonization time:
-
6-8 Hours
-
Color:
-
Customers Requirement
-
Cooling Time:
-
8-9 Hours
-
Quality:
-
Reliable Structure
-
Raw material:
-
Biomass Material
-
Model:
-
Customers Requirement
-
Power(W):
-
31KW

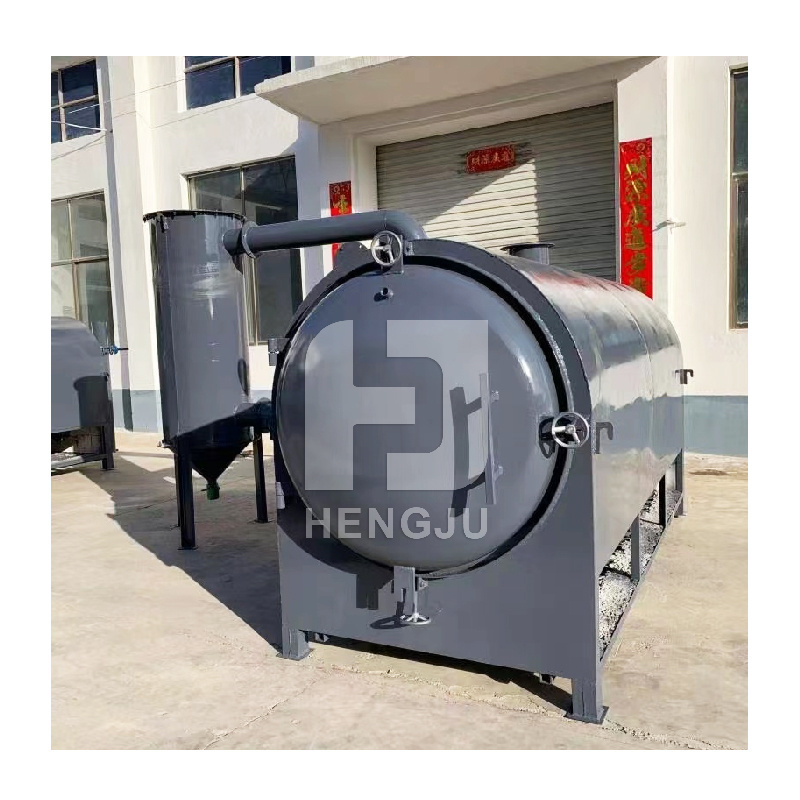

The horizontal carbonization furnace needs to be heated with firewood in the early stage, and the carbonization cycle is about 6-10 hours. It is used for the carbonization of raw materials such as logs, mechanical salary sticks, bamboo poles, wood blocks, coconut shells, branches and so on. The equipment is composed of four parts: horizontal furnace body, furnace chamber, fan and smoke return system. Gas, coal, diesel gasoline, firewood, straw, branches and other raw materials are used in the preheating of the carbonization furnace body in the early stage.
|
Model |
Liner size |
Machine size |
Weight |
Output |
|
1 |
Φ 0.8*1.5m |
1.8*1.1*1.4m |
350kg |
200kg |
|
2 |
Φ 1*3m |
3.2*1.3*1.8m |
850kg |
400-500kg |
|
3 |
Φ 1.5*3m |
3.3*1.8*2.5m |
1300kg |
800-1000kg |
|
4 |
Φ 1.5*3.8m |
4*1.9*2.5m |
2000kg |
1200kg |
|
5 |
Φ 1.5*4.5m |
4.8*1.9*2.5m |
2600kg |
1500kg |
|
6 |
Φ 1.8*4.5m |
4.8*2.1*2.6m |
3000kg |
2000kg |
|
7 |
Φ 1.8*5.8m |
6.3*2.1*2.6m |
3200kg |
3000kg |
The advantages of the horizontal carbonization furnace are: environmental protection, energy saving and efficiency improvement, simple operation, low investment cost and good carbon production effect.
If you are interested in other method to make charcoal, please click the below picture to enter the continuous carbonization furnace page for details.
Notice:
1.Big machines packed in nude or shipping in containers.
2. Spare parts packed in wooden case.
3. If you have any special requirement, we will pack as request.
