Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kandens
-
Model Number:
-
PBS series metal push button switch
-
Product name:
-
Metal push button switch
-
Contact Resistance:
-
≤50mΩ
-
Insulation resistance:
-
≥1000mΩ
-
Insulation strength:
-
2000VAC
-
Electric life:
-
50000 cycles
-
Mechanical Life:
-
500000 cycles
-
Certification:
-
Rohs
Quick Details
-
Protection Level:
-
High level
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kandens
-
Model Number:
-
PBS series metal push button switch
-
Product name:
-
Metal push button switch
-
Contact Resistance:
-
≤50mΩ
-
Insulation resistance:
-
≥1000mΩ
-
Insulation strength:
-
2000VAC
-
Electric life:
-
50000 cycles
-
Mechanical Life:
-
500000 cycles
-
Certification:
-
Rohs

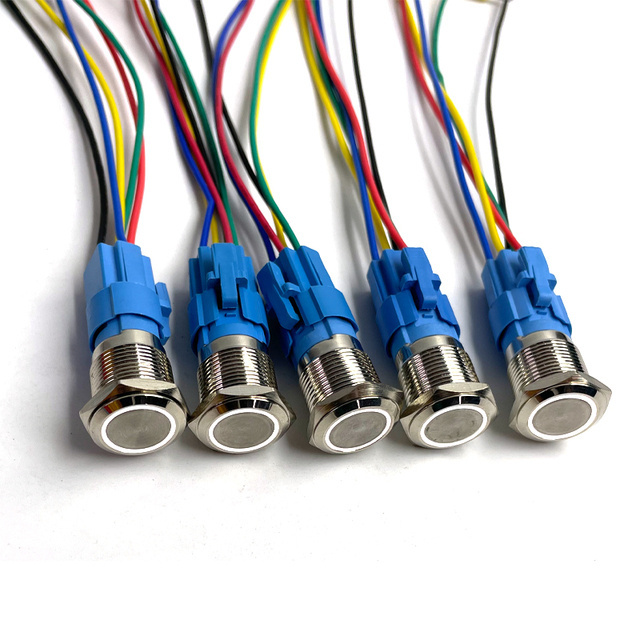

12/16/19/22mm Waterproof Metal Push Button Switch LED Light 5V 12V Momentary Latching Button Switch For Car Engine Power Button
1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
2.How to connect?
1.Connect " NO " and " C " : The circuit is alway open unless press the button.
2.Connect " NC " and " C " : The circuit is alway close unless press the button.
Turn on the power, the LED lights, press the switch, and the load is energized. Press the switch again, the button is reset, and the load is powered off. Turn off the power and the LED goes out.
Press the switch, the load is energized, and the LED turns off Press the switch again, the button is reset, the load is powered off, and the LED lights at the same time.
Turn on the power and the LED lights up. Press the switch, the load is powered off. Press the switch again, the button is reset, and the load is energized. Turn off the power and the LED goes out.
Press the switch, the load is powered off, and the LED turns off at the same time. Press the switch again, the button is reset, the load is energized, and the LED lights at the same time.
Press the switch, the load is energized, and the LED lights at the same time. Press the switch again, the button is reset, the load is powered off, and the LED goes out.
Q1: May I get metal push button switch free samples?
A: Sure, 10-20 pcs metal push button switch free samples are available for normal models. We need to confirm metal push button switch height, metal push button switch operation force and price before shipment.
Q2: When can I get the quotation ?
A: We will send you quotation within 24 hours.
Q3: When can I get the metal push button switch samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.
Q4: Can you accept small order, like 1000 pcs metal push button switch, 2000 pcs metal push button switch?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.
Q5: What's the lead time of metal push button switch bulk order ?
A: Normally, the metal push button switch lead time is 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.
Q6. What is the payment term ?
For small order, pls remit payment by PayPal. For big order, pls remit payment by T/T.
Q7. Can you open mold for teminal order or uncommon mold ?
OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
