Quick Details
-
Brand Name:
-
Xingyu
-
Voltage:
-
380V/50HZ
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2250*900*850mm
-
Weight:
-
1000 kg
-
Features:
-
Easy Operation
-
Warranty:
-
1 Year
-
Purline thickness:
-
60/70mm
-
Purline width:
-
upside120/140/110mm downside140/160/130mm
-
No. of holes:
-
1
-
Diameter of holes:
-
30mm
-
Electric motor power:
-
4kw
-
Vibrator motor power:
-
1.5kw
-
Product name:
-
Purline moulding machine
-
Moulding speed:
-
1.3-1.5m/min
-
No. Of wires:
-
5/8/6
-
Wire diameter:
-
5mm
Quick Details
-
Application:
-
Building Materials Machinery
-
Production Capacity:
-
1.3-1.5m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xingyu
-
Voltage:
-
380V/50HZ
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2250*900*850mm
-
Weight:
-
1000 kg
-
Features:
-
Easy Operation
-
Warranty:
-
1 Year
-
Purline thickness:
-
60/70mm
-
Purline width:
-
upside120/140/110mm downside140/160/130mm
-
No. of holes:
-
1
-
Diameter of holes:
-
30mm
-
Electric motor power:
-
4kw
-
Vibrator motor power:
-
1.5kw
-
Product name:
-
Purline moulding machine
-
Moulding speed:
-
1.3-1.5m/min
-
No. Of wires:
-
5/8/6
-
Wire diameter:
-
5mm
Th
e Purline moulding machine our special developed pr
oducts as results of our engineers research, with which 60%steel material will be saved compared with traditional revolving die method .Efficiency can be improved 3 to 5 times compared with conical die method, these machine are easy for operation and convinient for maintenance , products from these machines are in good quality ,smooth appearance and accurate in size.The strength and size of purline are meeting the national standard.The machine have lifting system which is fleible and easy for assembly and dismantle,it is warmly welcomed by customers.
|
Model
|
Purline
thickness
(mm)
|
Purline
width
(mm)
|
No.
of
holes
|
Shape
of
holes
|
No.
of
wire
|
Wire
diameter
(mm)
|
Electric
motor
power
(kw)
|
Vibrator
motor
power
(kw)
|
Moudling
speed
(m/min)
|
|
60*120*140*4
|
60
|
up:120
down:140
|
1
|
30
|
5
|
5
|
4
|
1.5
|
1.3-1.5
|
|
70*140*160*4
|
70
|
up:140
down:160
|
1
|
30
|
8
|
5
|
4
|
1.5
|
1.3-1.5
|
|
60*110*130*4
|
60
|
up:110
down:130
|
1
|
30
|
6
|
5
|
4
|
1.5
|
1.3-1.5
|

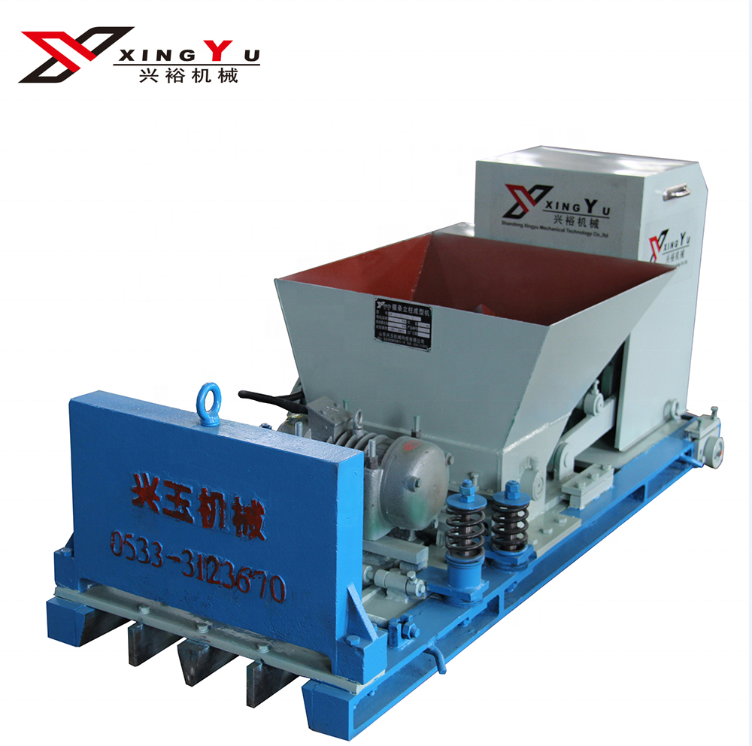

Machine overview
Producing&Finished product
Main Features
1)One machine can make one slab,low investment
2)Simple structure,easy operate
3)Long working-life with easywear spare parts
4)Smooth surface,high-density structure
Th e Purline moulding machine is used to feed concr ete into a die by means of a slide block's reciprocation along the steel tendon and compact concrete into a designed form by extrusion on a bed box in open air or a workshop, under the operation of external vibration, surface press polish, the formed concrete is completed.
|
Packaging
|
|
|
|
Size
|
2250(L)*900(W)*850(D)mm
|
|
|
Weight
|
1000/1050/950kg
|
|
|
Packaging Details
|
1.We use fumigation wooden box packaging products
2.Wire cables are used for fastening the machine on the trailer or inside the container. 3.Machine covered with plastic film |
|
Shandong Xingyu Mechanical Technology Co.,Ltd,
Shandong Xingyu Mechanical Technology Co.,Ltd, was located in Zibo,Shandong Province and founded in 1996,specialized in Precast concrete machine,manufacture with a name brand of "Xingyu".We were authorized ISO9001:2000 quality system certificate and also nominated as 'Hi-New Technology Enterprise' by Shandong Science and Technology Administration in 2006.We also founded "Zibo Precast Concrete Machinery Research Institute"with Shandong Science and Technology University in 2007,and have successfully developed the non-circular hole slab forming machine and the Prestressed concrete slab extrusion machine.Now we can manufacture all kinds of slabs which allowed by our country,and so can completely satisfy on large national and civil architecture project.
Our main products:large span GLY concrete hollow core slab machine、light-weight wall panel machine、purline machine、lintel machine、column machine、hollow core slab cutting machine、concrete feeding dumper、high-strength steel wire tensioning machine,which amount to more than ten types and more than four hundred standards.We can design and manufacture various kinds of concrete forming equipments according to the customer demands.Meanwhile we can provide the whole plan and technology supporting for concrete precast component.
Since from founded,we have gotten more than 10 patents and sold to over 20 provinces in China as well as exported to more than 30 countries like Russia、Uzbekistan、Thailand、Bangladesh、India、Nigeria、Philippines、Malaysia、Indonesia、Bhutan、Libya、Uruguay、Saudi arabia etc.We have gained trust from all customers because of innovating、stable quality、easily handled、long working life and easily maintained.
1.When did your company established?
XingYu machine is established in the year 1996.
2.Where is your company situated?
XingYu machine is located in ZiBo city, ShanDong province China.
You can take plain to Jinan airport, we will pick you up in Jinan.
3.What is your payment term?
You can transfer the payment via T/T. We will provide you the bank detail. Generally, 30% prepaid and the rest 70% should be paid before shipping.
4.We need to confirm following information before sent formal offer:
What kind of slab you want to make, wall panel, roof panel, lintel or?
Do you have exact slab size (slab thickness and width)? If not, please tell us the slab span, we will give you suggestion.
5.Have you use this kind of machine before?
Our machine is totally different from European machine. Please don’t follow their instructions.
