Quick Details
-
Insulation Material:
-
cross-linked elastomeric compound
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AEIN
-
Model Number:
-
NSSHOU
-
Rated voltage:
-
600 / 1000 V
-
MOQ:
-
200 Meters
-
Packing:
-
Customers' Requirements
-
Shield:
-
Optional
-
ODM & OEM:
-
Accept
-
Price:
-
Factory direct selling price
-
Product Name:
-
NSSHOU
-
Sheath color:
-
Optional
-
Certificate:
-
CE RoHS
-
Trade Term:
-
EXW FOB CIF
-
Business Type:
-
Manufacturer
Quick Details
-
Application:
-
underground mining
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
cross-linked elastomeric compound
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AEIN
-
Model Number:
-
NSSHOU
-
Rated voltage:
-
600 / 1000 V
-
MOQ:
-
200 Meters
-
Packing:
-
Customers' Requirements
-
Shield:
-
Optional
-
ODM & OEM:
-
Accept
-
Price:
-
Factory direct selling price
-
Product Name:
-
NSSHOU
-
Sheath color:
-
Optional
-
Certificate:
-
CE RoHS
-
Trade Term:
-
EXW FOB CIF
-
Business Type:
-
Manufacturer
Products Description

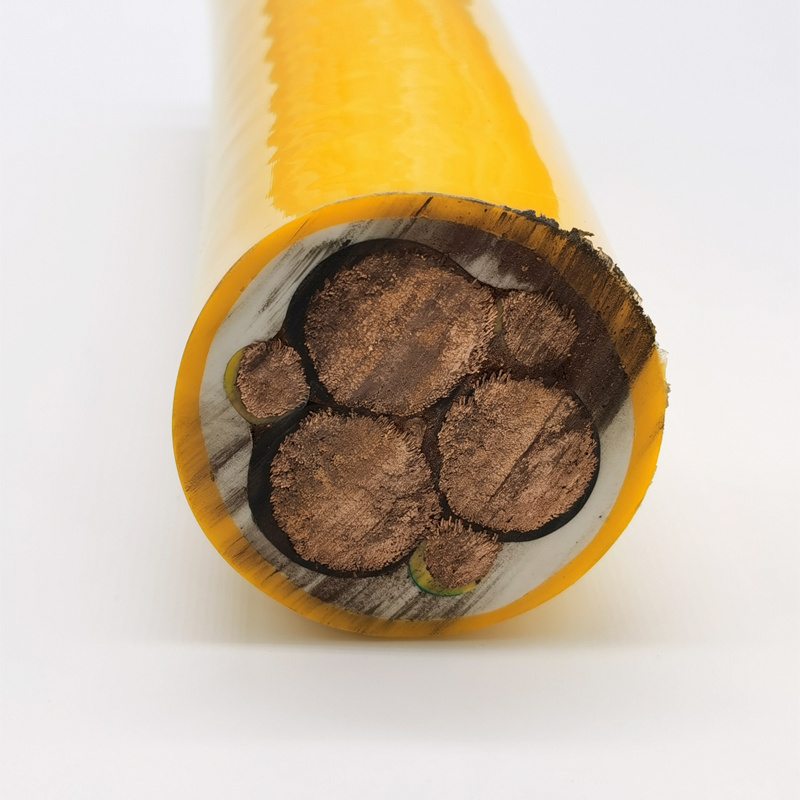

NSSHOU Trailing Power Supply 600 / 1000V Cables for Underground Mining
|
Item
|
NSSHOU
|
|
Conductor
|
Electrolytic annealed, class 5 stranded plain or tinned copper wires
|
|
Insulation
|
cross-linked elastomeric compound
|
|
Inner Sheath
|
cross-linked elastomeric compound
|
|
Outer Sheath
|
cross-linked elastomeric compound
|
|
RATED VOLTAGE
|
600 / 1000 V (U0/U)
|
|
AC TEST VOLTAGE
|
3 kV
|
|
OPERATING TEMPETATURE
|
IN FLEXING USE: -25°C to +80°C
IN FIXED USE: -40°C to +80°C |
|
MAX. CONDUCTOR OPERATING TEMP.
|
90°
|
|
CONDUCTOR SHORT-CIRCUIT TEMP.
|
250°C (Max. 5 sec)
|
|
MIN. INSTALLATION TEMP.
|
-15°C
|
|
Applications
|
For use in mines, quarries, industrial areas, construction sites, agricultural operations and as trailing cable. The cables are also suitable for fixed application as power supply cable for underground mining and open-cast mining applications, for tunnelling applications and similar applications.
|
