- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
60Hz
-
Use:
-
flex banner turpaulin welding
-
Weight (KG):
-
19 KG
-
Power:
-
1500
-
Application:
-
PVC Film Joint
-
Product name:
-
flex banner fabric welder machine
-
Function:
-
PVC Sealing
-
welding temperature:
-
20-500℃
-
Welding width:
-
30-40mm
-
Welding speed:
-
0.8-10 m/min
-
Welding thickness:
-
0.2-1mm
-
Packing:
-
strong wooden packing
-
delivery time:
-
1-2 working days
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CRYSTEK
-
Voltage:
-
220
-
Frequency:
-
60Hz
-
Use:
-
flex banner turpaulin welding
-
Weight (KG):
-
19 KG
-
Power:
-
1500
-
Application:
-
PVC Film Joint
-
Product name:
-
flex banner fabric welder machine
-
Function:
-
PVC Sealing
-
welding temperature:
-
20-500℃
-
Welding width:
-
30-40mm
-
Welding speed:
-
0.8-10 m/min
-
Welding thickness:
-
0.2-1mm
-
Packing:
-
strong wooden packing
-
delivery time:
-
1-2 working days
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None

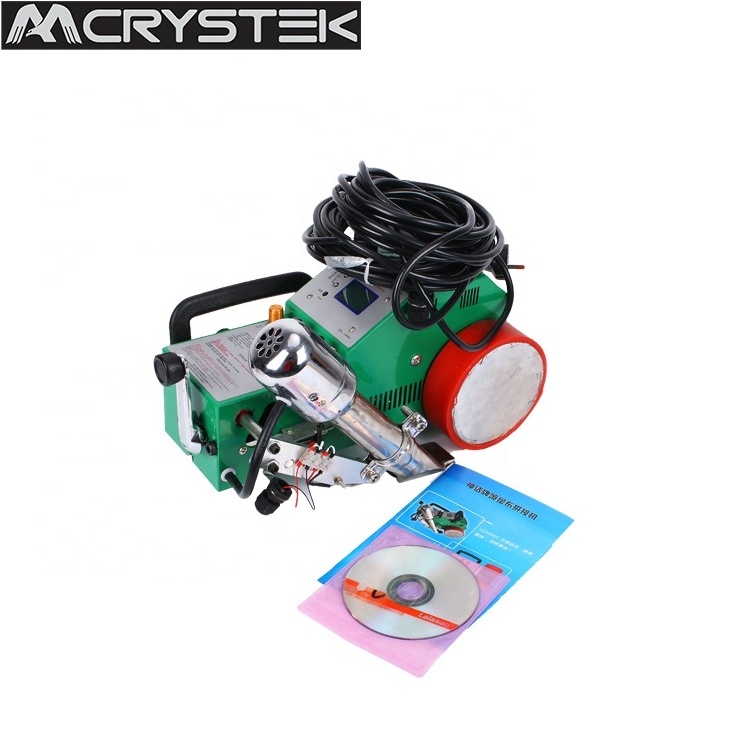

LC3000C-new is euipped with handle and red laser pointer. It is the advanced of the troditional model. It is more Humane and more reliable.
It is also used the constand temperature techonology. The temperature Fluctuation can be controlled within ±1℃.
Its heating element is brand. Improted from Switzerland. Its lifetime is very long, during the using time, no need replace the heating element.
APPLICATION
The automatic welding machine is designed to weld plastic materials. The automatic welding machine can weld advertising inkjet fabric, inkjet cloth,
light box cloth, thick PVC cloth, mesh cloth, tarpaulin and other PVC, PE, DHPE, LDPE, EVA, Pp plastic materials that can be hot melted. It is small,
light and easy to operate. It is equipped with temperature feedback sensor. The sensor can always monitoring the temperature of the outlet to keep a
constant temperature. It uses advanced PID control technology, and adjust the power to make the temperature more constant automatically,the fluctuation is within 5 degrees. This function can make the welding result stronger. It also can avoid leakage. This machine is more suited to fast welding
of large roofs.
TECHNICAL DATA
|
ITEM |
PARAMETER |
|
Voltage |
220/230V |
|
Frequency |
50-60Hz |
|
Whole Power |
800-1600W |
|
Air volume |
21m³/h |
|
Air pressure |
3000Pa |
|
Temperature range |
20-500℃ |
|
Welding speed |
0.8-10 m/min |
|
Welding thickness |
0.2-1mm |
|
Largest welding width |
3-4cm |
|
Net weight |
15Kg |
|
Outside dimensions |
485×285×280 mm |
|
Electric shock protection category |
|
Pictures
Advantages
1.Its used the digital temperature constant technology.
2.Its temperature fluctuation is within ±1℃.
3.Its equipped with AC motor,the wind is stronger and the lifetime is longer.
4.We have perfessional R&D department,we have all the key technology,the quality of the machine can be controlled.
Warranty: One year warranty for machine boards and motors
Services: If you have any question or help, engineer will control your computer to help you solve problem.
Engineers available to service machinery overseas.
Traning: You arre welcome to send engineer to our office for free training.
Package and delivery:
1. All the products will delivery to you in 1-4 workdays after confirm the payment.
2. We will use appropriate materials for a reasonable, secure packing of your goods.
If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
Shipping:
1. All the goods delivery by FedEx or DHL express from Guangzhou.
And we will declare the low value on the shipping invoice to reduce your custom tax.
2. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City!
3. There are no shipments on weekend and public holidays.
