Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue elephant
-
Voltage:
-
AC380V, 50HZ, 3PH (Option: 220V)
-
Dimension(L*W*H):
-
1840*1930*1850MM
-
Weight (KG):
-
1200
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Feature:
-
free maintenance
-
Spindle Power:
-
3.5KW china HQD brand air cooling spindle
-
Drive Motors:
-
Stepper 450A and leadshine driver M542
-
Inverter:
-
3.7kw Fuling inverter
-
Working Area:
-
1200*1200*160mm
-
Table Surface:
-
T-slot and vacuum working table
-
Limit switch:
-
Japan Omron limit switch
-
Dust collector:
-
1.5KW new type dust collector for option
-
Vacuum pump:
-
2.2kw JQT air vacuum pump,220V,1phase
Quick Details
-
Working Table Size(mm):
-
1200×1200
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue elephant
-
Voltage:
-
AC380V, 50HZ, 3PH (Option: 220V)
-
Dimension(L*W*H):
-
1840*1930*1850MM
-
Weight (KG):
-
1200
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Feature:
-
free maintenance
-
Spindle Power:
-
3.5KW china HQD brand air cooling spindle
-
Drive Motors:
-
Stepper 450A and leadshine driver M542
-
Inverter:
-
3.7kw Fuling inverter
-
Working Area:
-
1200*1200*160mm
-
Table Surface:
-
T-slot and vacuum working table
-
Limit switch:
-
Japan Omron limit switch
-
Dust collector:
-
1.5KW new type dust collector for option
-
Vacuum pump:
-
2.2kw JQT air vacuum pump,220V,1phase
Features

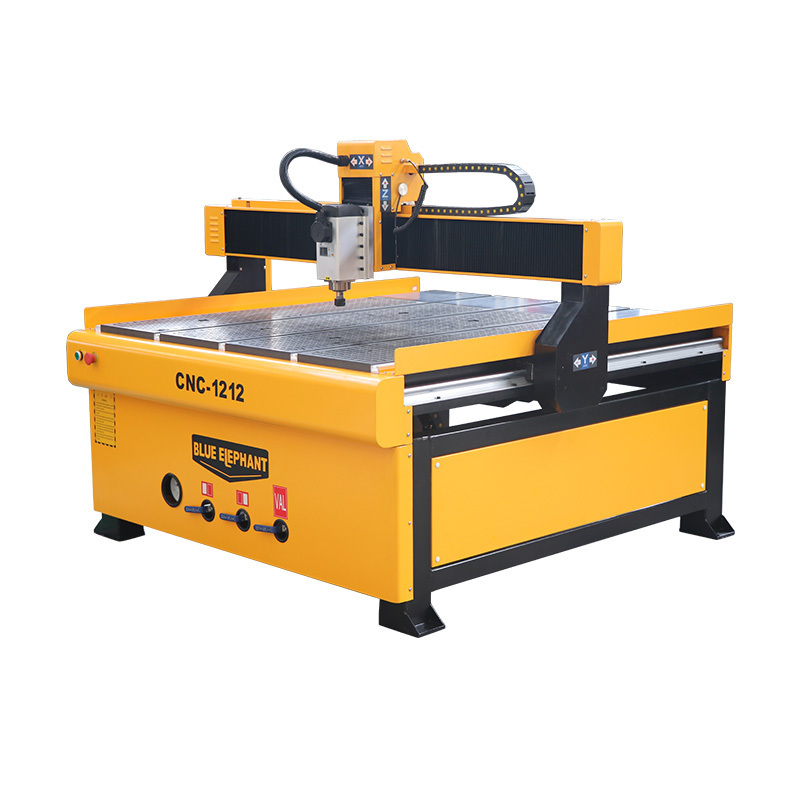

its spindle is 3.5kw which is bigger power than common 2.2kw, widely used for cutting and engraving small solid wood, acrylic, pvc, copper, aluminum. more and more buyers want easier maintenance of machine, so it is necessary to design dust proof cloth on x axis and z axis. and dust proof cloth design is helpful to avoid sawdust falling into guide rail to keep stable working of machine and prolong using time.
Technical parameters
|
Working area |
1200*1200*160mm |
|
Spindle |
3.5kw HQD air cooling spindle |
|
Motor |
450A stepper motor and M542 drive |
|
Inverter |
3.7 kw FULING brand |
|
Control system |
Mach 3 with usb port and handle |
|
X,Y,Z |
Ball screw, round guide rail |
|
Table surface |
T-slot and Vacuum working table |
|
Dictate format |
G code,U00,mmg,plt/HPGL/NC |
|
Compatible software |
Type3,Ucancam,ArtCAM |
|
Working supply |
AC220V, 1 phase,50/60HZ(110V for option) |
|
Guarantee |
One year |
|
option |
dust collector, rotary device, mist sprayer, flume |
|
Application |
Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures. |
PS: All the working area and specifications can be customized according to your requests.
Generally, cnc router machine is customized according to customer requirement. Our Design Dep. make drawing, the Production Dep. start to manufacture from machine structure, assemble parts, precision inspection, test working, until customers have no problem with machine. The Sales Dep. confirm with other Dep. for all details of customer order. This is how high-quality machine is produced
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
