Quick Details
-
Production Capacity:
-
11000mm/min
-
Place of Origin:
-
China
-
Brand Name:
-
IGoldencnc
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3200*2150*1650mm
-
Weight:
-
1650
-
Product name:
-
Marble cnc router Engraving Machine
-
Control system:
-
NCstudio Control System
-
Motor:
-
Stepper Motor
-
Transmission:
-
Rack pinion on XY, Ball Screw on Z
-
Guide Rail:
-
Linear Square guide Rail
-
SPindle speed:
-
0-24000rpm/min
-
Software:
-
Artcam Software
-
Keyword:
-
CNC Marble Cutting Machine
-
Application:
-
Stone Slab Cutting Machine
-
Feature:
-
stone cnc router engraving machine
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, United States, Italy, None
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
5.5kw
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
11000mm/min
-
Place of Origin:
-
China
-
Brand Name:
-
IGoldencnc
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3200*2150*1650mm
-
Weight:
-
1650
-
Product name:
-
Marble cnc router Engraving Machine
-
Control system:
-
NCstudio Control System
-
Motor:
-
Stepper Motor
-
Transmission:
-
Rack pinion on XY, Ball Screw on Z
-
Guide Rail:
-
Linear Square guide Rail
-
SPindle speed:
-
0-24000rpm/min
-
Software:
-
Artcam Software
-
Keyword:
-
CNC Marble Cutting Machine
-
Application:
-
Stone Slab Cutting Machine
-
Feature:
-
stone cnc router engraving machine
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, United States, Italy, None
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE ISO

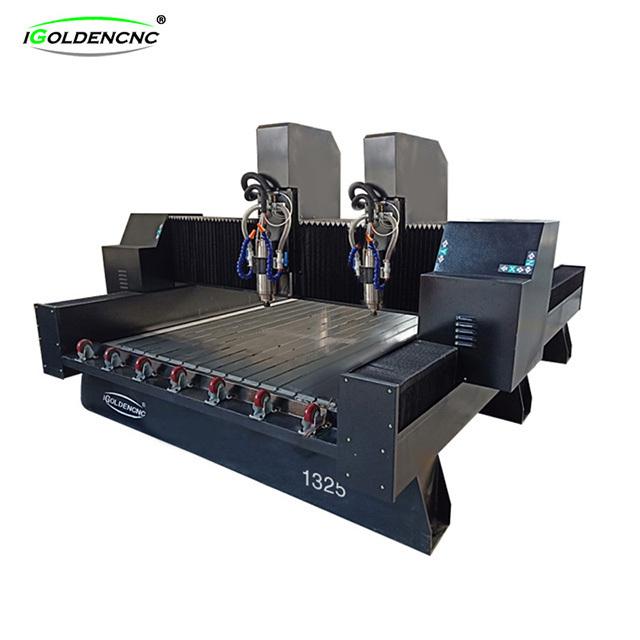

heavy duty 4 axis cnc router stone cnc granite engraving carving machine price for grave gravestone
Features for stone engraving machine:
1.machine structure is simple, pragmatic, clean appearance.
2.Machine Table adopts heavy and thick steel, which improve load-bearing of the whole machine,
it can bear 3 ton heavy stone
3.Machine sides use heavy steel, it can reduce vibration during work, then improve processing accuracy
4.Gear wheel for X Y axis, ball screw are uncovered, so it is very easy to clean it, after work,
ball screw can be cleaned for many times.
5.Water tank can be moved, it is easy to clear
Main parameter:
|
technicial parametes |
1325 |
1825 |
1318 |
|
woring size |
1300×2500×300mm |
1800×2500×300mm |
1300*1800×300mm |
|
Max working speed |
20000mm/min |
||
|
working precision |
<0.02/300mm |
<0.02/300mm |
<0.02/300mm |
|
Engraving command |
G code |
||
|
|
|
||
|
Cutting tool diameters |
3.175,6,12.7 |
||
|
XYZ guide rails |
Square guide rails |
||
|
Driver motor |
China step motor and leadshine driner (Japanese servo motor can be optional) |
||
|
Inverter |
China sunfar/best /Fuling brand |
||
|
Control system |
Shanghai NC studio |
||
|
Applicable software |
Artcam/Type3/JD paint/Ucancum etc |
||
|
Transmission |
XY with high precison rack transmisson Z axis with ball screw transmission |
||
|
|
|
||
|
Warranty |
Two years |
||
|
Delivery time |
10 working days |
||
|
Payment |
TT with 30% in advance as deposit and the balance need to be paid before loading |
||
|
Package |
Standard wooden case for exporting |
||
Main Parts:
Applications of the tile stone cnc router :
This tile stone cnc router is widely Suitable for big size hard materials
such as marble,granite, artificial stone,tombstone,ceramic tiles, glass, etc, can be engraved by such machine,
to produce arts and crafts, pictures, etc. This machine can be also used to work on wood, advertising materials.
Processing:
All the machine can be customized according to your own requirements. For example the machine is designed with linear or carouse tool changer, the amount of head or spindle can be added, also the rotary device is allowed to be installed on the machine……All in all, all the specification of machine can be customized!!! Now just click the following machine for more details!
| ATC CNC Machine | Pneumatic Multi Spindles | Plasma CNC |
1.Engineers available to service machinery overseas. Machine has been adjusted before delivery , operation disk was included.
2.Two year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period.
3.Lifetime maintenance free of charge.Free training course at our plant. 24 hours on line service each day, free technical support.
4.We will provide the consumable parts at an agency price when you need replacement.
