Quick Details
-
Voltage:
-
220/380/415/460V
-
Dimension(L*W*H):
-
2500*750*1500mm
-
Weight:
-
1500 KG
-
Warranty:
-
12-month
-
Power:
-
50Kw
-
Working Temperature Range:
-
0C to 40C
-
Chiller Coolant:
-
R22/R134a/R407c
-
Chiller Compressor Type:
-
Semi-hermetic Screw Type
-
Energy Saving of Screwed Chiller:
-
25%-50%-75%-100%
-
Evaporator type:
-
Shell and Tube
-
Chilled Water flow:
-
31.0m3/h
-
Water Cooled Type Condenser:
-
Shell and Tube
-
Cooling Water:
-
42.0m3/h
-
Compressor Brand:
-
Hanbell, Bizter, RefComp
-
Cooling capacity:
-
50 tons
-
outlet temperature:
-
-10C~ 0C
Quick Details
-
Condition:
-
New
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mgreenbelt
-
Voltage:
-
220/380/415/460V
-
Dimension(L*W*H):
-
2500*750*1500mm
-
Weight:
-
1500 KG
-
Warranty:
-
12-month
-
Power:
-
50Kw
-
Working Temperature Range:
-
0C to 40C
-
Chiller Coolant:
-
R22/R134a/R407c
-
Chiller Compressor Type:
-
Semi-hermetic Screw Type
-
Energy Saving of Screwed Chiller:
-
25%-50%-75%-100%
-
Evaporator type:
-
Shell and Tube
-
Chilled Water flow:
-
31.0m3/h
-
Water Cooled Type Condenser:
-
Shell and Tube
-
Cooling Water:
-
42.0m3/h
-
Compressor Brand:
-
Hanbell, Bizter, RefComp
-
Cooling capacity:
-
50 tons
-
outlet temperature:
-
-10C~ 0C
Product Description

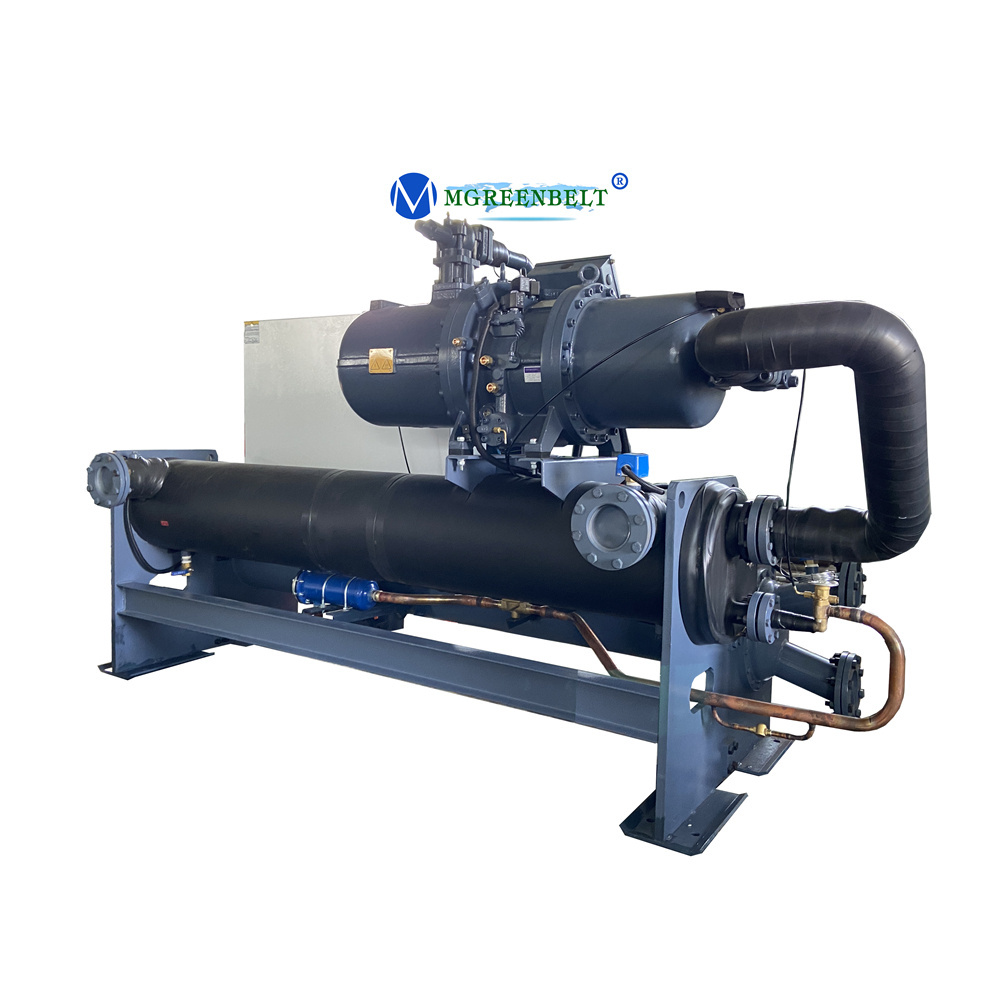

1. Product Name: Industrial water chiller
2. Cooling capacity:170kw/50ton
3. Output temp. :-15C/-10C/-5C/0C/7C-+35C
4. Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
5. Color: grey or customized
6. Refrigerant: R22/R407C/R134a
7. Compressor:Screw type，world famous brand compressors from Hanbell/Bitzer ,etc
8. Evaporator: High efficiency copper tube shell and tube type
9. Condenser: High efficiency copper tube shell and tube type
10. Protection System: Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
2. Cooling capacity:170kw/50ton
3. Output temp. :-15C/-10C/-5C/0C/7C-+35C
4. Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
5. Color: grey or customized
6. Refrigerant: R22/R407C/R134a
7. Compressor:Screw type，world famous brand compressors from Hanbell/Bitzer ,etc
8. Evaporator: High efficiency copper tube shell and tube type
9. Condenser: High efficiency copper tube shell and tube type
10. Protection System: Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Detailed Images
Advantage of Screw Industrial Water Cooled Chiller
1. Higher COP due to water cooled lower condensing temperature , usually 35-45C
2. Can be installed indoor and outside house
3. Water cooled screw chiller just need small size
4. Require external cooling tower for condenser, ensure higher cooling efficiency
5. widely used in large cooling project, very suitable hot ambient temperature
1. Higher COP due to water cooled lower condensing temperature , usually 35-45C
2. Can be installed indoor and outside house
3. Water cooled screw chiller just need small size
4. Require external cooling tower for condenser, ensure higher cooling efficiency
5. widely used in large cooling project, very suitable hot ambient temperature
Specification
Main Specification:
1) .Cooling capacity from 7℃ to 35℃, or if need lower outlet temperature please inform us change the offer;
2) .Stainless insulated water tank and anti-freeze thermostat can provide from us;
3) .R22/R407c/R404a/R134a refrigerant used as standard for efficient cooling.
4) .Refrigeration loop controlled by high and low pressure switches.
5) .Compressor and pump overload relays.
6) .Tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
7) .Tube-in-shell evaporator for excellent cooling.
1) .Cooling capacity from 7℃ to 35℃, or if need lower outlet temperature please inform us change the offer;
2) .Stainless insulated water tank and anti-freeze thermostat can provide from us;
3) .R22/R407c/R404a/R134a refrigerant used as standard for efficient cooling.
4) .Refrigeration loop controlled by high and low pressure switches.
5) .Compressor and pump overload relays.
6) .Tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
7) .Tube-in-shell evaporator for excellent cooling.
|
Screw Water Cooling Chiller(Single Unit)Series
|
|
|
|
|
||||
|
Model
|
|
MG-90W
|
MG-125W
|
MG-165W
|
||||
|
Capty
|
USRT
|
26.2
|
35.8
|
46.6
|
||||
|
|
Kcal/h
|
79120
|
108360
|
141040
|
||||
|
|
KW
|
92
|
126
|
164
|
||||
|
Power
|
|
3PH-380V-50Hz
|
|
|
||||
|
Refrigerant
|
Type
|
R22
|
|
|
||||
|
|
Control
|
Thermostatic expansion valve
|
|
|
||||
|
Comperssor
|
Type
|
Semi-closed screw type
|
|
|
||||
|
|
kw Power
|
23
|
32
|
39
|
||||
|
|
Start
|
Y-△
|
|
|
||||
|
|
Capacity
|
25-50-75-100（%） or 25-100（%）
|
|
|
||||
|
Evaporator
|
Type
|
High efficiency copper tube shell and tube type
|
|
|
||||
|
|
m³/h Flow
|
15.8
|
21.6
|
28.1
|
||||
|
|
Inlet/Outlet
|
DN50
|
DN65
|
DN80
|
||||
|
Condenser
|
Type
|
High efficiency threaded copper tube shell and tube type
|
|
|
||||
|
|
m³/h Flow
|
21.7
|
29.8
|
38.3
|
||||
|
|
Inlet/Outlet
|
DN50
|
DN65
|
DN80
|
||||
|
Protection System
|
|
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen
protection. |
|
|
||||
|
Dimension
|
L
|
2300
|
2500
|
2500
|
||||
|
|
W
|
750
|
750
|
750
|
||||
|
|
H
|
1500
|
1500
|
1500
|
||||
|
Weight
|
kg
|
660
|
700
|
800
|
||||
Factory
Our Customer Use It
Exhibition and Customer Visiting
Company Introduction
MGREENBELT
Professional Industrial Refrigeration Equipment Solution Provider
Mgreenbelt is a professional refrigeration equipment manufacturer, producing air cooled chiller, water cooled chiller, glycolchiller for various industrial applications; we was established since 2003, with 34,000 squre meter workshop, all of our product with CE certificate, can supply the SASO, SGS, COC and etc documents.
After Sales Service
FULL-SERVICES:
1. 14 Months warranty and life time technical maintenance offered.
2. All extra parts for the machine can be purchased with agent price from Mgreenbelt
3. 24 Hours working phone call/Email/Skype/MSN/Wechat/Whatsapp/Trade manager online to support.
4. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
5. Free and Professional Training at our Factory under the relaxed condition.
1. 14 Months warranty and life time technical maintenance offered.
2. All extra parts for the machine can be purchased with agent price from Mgreenbelt
3. 24 Hours working phone call/Email/Skype/MSN/Wechat/Whatsapp/Trade manager online to support.
4. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
5. Free and Professional Training at our Factory under the relaxed condition.
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Pls kindly offer the following information:
1.Cooling capacity : KW?
2.Inlet /outlet water temperature: _deg C~ _deg C
3. Voltage/Frquency : PH/ V/ HZ?
4.Retrigreant: R22/R407C/R410A/R134A and etc.
5.Chiller water flow rate: m³/h
1.Cooling capacity : KW?
2.Inlet /outlet water temperature: _deg C~ _deg C
3. Voltage/Frquency : PH/ V/ HZ?
4.Retrigreant: R22/R407C/R410A/R134A and etc.
5.Chiller water flow rate: m³/h
