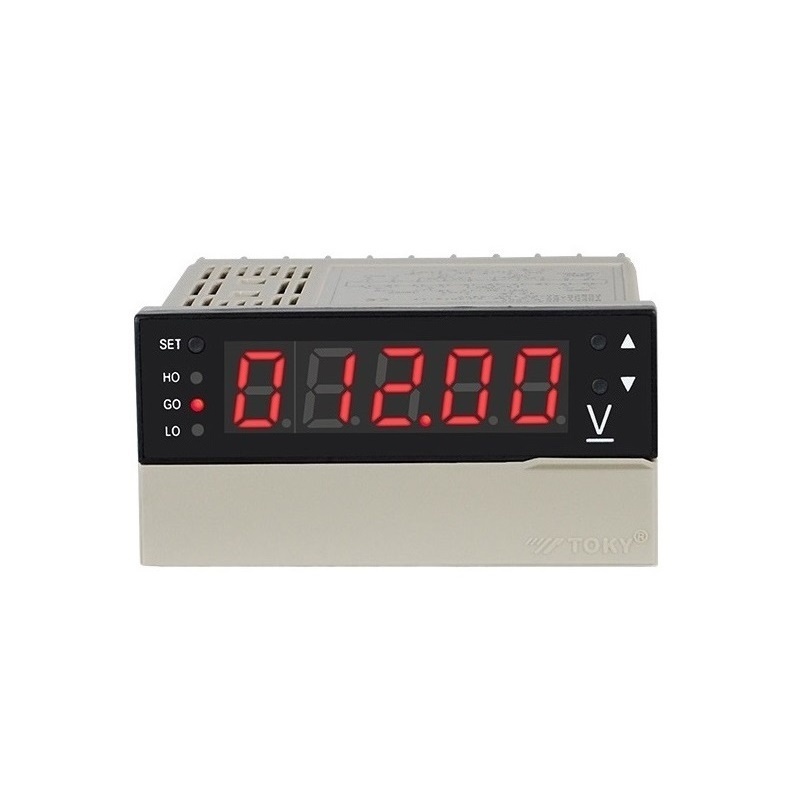

Quick Details
-
Brand Name:
-
TOKY
-
Model Number:
-
DP4I-PRAV600
-
Operating Temperature:
-
0℃~50℃
-
Dimensions:
-
13.5*7.5*11cm
-
Voltage:
-
100~240V AC/DC 50/60Hz
-
Power consumption:
-
≤5W
-
Refresh rate:
-
2.5~10times/sor51.2us/times
-
Analog Load:
-
600Ω max
-
Protocol:
-
0.01mA 12 digits DA
-
Screw torque:
-
0.74n.m~0.9n.m
-
ESD:
-
Level 3
-
Storage environment:
-
-20~60℃ <85%RH
-
Certificate:
-
CE, CQC, ROHS
-
Panel size:
-
96W*96H*92.5L
Quick Details
-
Measuring Range:
-
Below 200V/A:0.1%FS Over 200V/A:0.2%FS
-
Accuracy Class:
-
0.5%FS or 0.2%FS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOKY
-
Model Number:
-
DP4I-PRAV600
-
Operating Temperature:
-
0℃~50℃
-
Dimensions:
-
13.5*7.5*11cm
-
Voltage:
-
100~240V AC/DC 50/60Hz
-
Power consumption:
-
≤5W
-
Refresh rate:
-
2.5~10times/sor51.2us/times
-
Analog Load:
-
600Ω max
-
Protocol:
-
0.01mA 12 digits DA
-
Screw torque:
-
0.74n.m~0.9n.m
-
ESD:
-
Level 3
-
Storage environment:
-
-20~60℃ <85%RH
-
Certificate:
-
CE, CQC, ROHS
-
Panel size:
-
96W*96H*92.5L
Products Description
|
Model
|
Alarm
|
Analog
|
Communication
|
Measurement range
|
Code
|
|
DP4-AV/DV/DA/AA(D)
|
No
|
No
|
No
|
AV/DV: 0.2/2/20(10)/200(100)/600V
DA/AA:2mA/20mA/200mA2 AACT:AC 5A (secondary transformer ratio) DACT:DC shunt 75mV |
A0800DP03
|
|
DP4-DA/AACT(D)
|
No
|
No
|
No
|
|
A0800DP03
|
|
DP4I-AV/DV/DA/AA(D)
|
No
|
4-20mA
|
No
|
|
A0970DP03
|
|
DP4I-DA/AACT(D)
|
No
|
4-20mA
|
No
|
|
A0970DP03
|
|
DP4-TAV/DV/DA/AA(D)
|
No
|
No
|
RS485
|
|
A1100DP03
|
|
DP4-TDA/AACT(D)
|
No
|
No
|
RS485
|
|
A1100DP03
|
|
DP4I-TAV/DV/DA/AA(D)
|
No
|
4-20mA
|
RS485
|
|
A1300DP04
|
|
DP4I-TDA/AACT(D)
|
No
|
4-20mA
|
RS485
|
|
A1300DP04
|
|
DP4-PRAV/DV/DA/AA(D)
|
High/Low limit,
middle value |
No
|
No
|
AV/DV: 0.2/2/20(10)/200(100)/600V
DA/AA:2mA/20mA/200mA2 AACT:AC 5A (secondary transformer ratio) DACT:DC shunt 75mV |
A1200DP03
|
|
DP4-PRDA/AACT(D)
|
High/Low limit,
middle value |
No
|
No
|
|
A1200DP03
|
|
DP4I-PRAV/DV/DA/AA(D)
|
High/Low limit,
middle value |
4-20mA
|
No
|
|
A1400DP03
|
|
DP4I-PRDA/AACT(D)
|
High/Low limit,
middle value |
4-20mA
|
No
|
|
A1400DP03
|
|
DP4-PRTAV/DV/DA/AA(D)
|
High/Low limit,
middle value |
No
|
RS485
|
|
A1500DP03
|
|
DP4-PRTDA/AACT(D)
|
High/Low limit,
middle value |
No
|
RS485
|
|
A1500DP03
|
|
DP4I-PRTAV/DV/DA/AA(D)
|
High/Low limit,
middle value |
4-20mA
|
RS485
|
|
A1800DP04
|
|
DP4I-PRTDA/AACT(D)
|
High/Low limit,
middle value |
4-20mA
|
RS485
|
|
A1800DP04
|
|
DL8-IRC10AACT
|
2 loops
|
4~20mA
|
No
|
No
|
IN1:5A(AC)
|
|
DL8-IRC10DACT
|
2 loops
|
4~20mA
|
No
|
No
|
IN1:75mV(DC)
|
|
DL8-RC10V600
|
2 loops
|
No
|
No
|
No
|
IN1:6V,IN2:60V,IN3:600V
|
|
DL8-RC10V200
|
2 loops
|
No
|
No
|
No
|
IN1:2V,IN2:20V,IN3:200V
|
|
DL8-RC10V100
|
2 loops
|
No
|
No
|
No
|
IN1:1V,IN2:10V,IN3:100V
|
|
DL8-RC10A2
|
2 loops
|
No
|
No
|
No
|
IN1:2A,IN2:0.2A,IN3:0.02A
|
|
DL8-RC10AACT
|
2 loops
|
No
|
No
|
No
|
IN1:5A(AC)
|
|
DL8-RC10DACT
|
2 loops
|
No
|
No
|
No
|
IN1:75mV(DC)
|
|
DL8-IV600
|
No
|
4~20mA
|
No
|
No
|
IN1:6V,IN2:60V,IN3:600V
|
|
DL8-IV200
|
No
|
4~20mA
|
No
|
No
|
IN1:2V,IN2:20V,IN3:200V
|
|
DL8-IV100
|
No
|
4~20mA
|
No
|
No
|
IN1:1V,IN2:10V,IN3:100V
|
|
DL8-IA2
|
No
|
4~20mA
|
No
|
No
|
IN1:2A,IN2:0.2A,IN3:0.02A
|
|
DL8-IAACT
|
No
|
4~20mA
|
No
|
No
|
IN1:5A(AC)
|
|
DL8-IDACT
|
No
|
4~20mA
|
No
|
No
|
IN1:75mV(DC)
|
|
DL8-V600
|
No
|
No
|
No
|
No
|
IN1:6V,IN2:60V,IN3:600V
|
|
DL8-V200
|
No
|
No
|
No
|
No
|
IN1:2V,IN2:20V,IN3:200V
|
|
DL8-V100
|
No
|
No
|
No
|
No
|
IN1:1V,IN2:10V,IN3:100V
|
|
DL8-A2
|
No
|
No
|
No
|
No
|
IN1:2A,IN2:0.2A,IN3:0.02A
|
|
DL8-DACT
|
No
|
No
|
No
|
No
|
IN1:75mV(DC)
|
|
Input signal
|
Input resistance
|
See range description
|
|
|
Overload capacity
|
Max 1.2 times of rated range
|
|
|
Accuracy
|
Below 200V/A：0.1%FS Over 200V/A：0.2%FS
|
|
|
Refresh rate
|
2.5～10times/sor51.2us/times
|
|
Power Supply
|
Voltage
|
100～240V AC/DC 50/60Hz
|
|
|
Power consumption
|
≤5W
|
|
Protection level
|
Panel
|
IP54
|
|
|
Casing
|
-
|
|
Analog
|
Output
|
4～20mA
|
|
|
Load
|
600Ω max
|
|
|
Output accuracy
|
0.5%FS or 0.2%FS
|
|
|
Resolution
|
0.01mA 12 digits DA
|
|
Relay output
|
Load
|
3A/250V AC
|
|
|
Electrical
|
100,000 times
|
|
|
Michanical
|
1 million times
|
|
Communication
|
Protocol
|
RS-485 ModBUS-RTU
|
|
|
Baud rate
|
4800bps,9600bps
|
|
Environment
|
Work environment
|
0～50℃ <85%RH
|
|
|
Storage environment
|
-20～60℃ <85%RH
|
|
Structure
|
Vibration,stack
|
10～55Hz X\Y\Z 0.75mm
|
|
|
Screw torque
|
0.74n.m～0.9n.m
|
|
Safety
|
Dielectric strength
|
2000V AC 50/60Hz 1 minute
|
|
|
Insulation resistance
|
100MΩ DC 500V
|
|
EMC
|
ESD
|
Level 3
|
|
|
Pulse train anti-interference
|
Level 4 each mode±4000VP-P
|
|
|
Lightning surge
|
Level 3 N-L ±2000V
|
|
|
Frequency drop
|
Level 3
|
