Quick Details
-
Model Number:
-
ZMQ2
-
Rated Current:
-
100A ~ 1250A
-
Certificate:
-
ISO9001
-
Material:
-
Copper
-
Pole:
-
3P/4P
-
Max. Current:
-
2000A
-
Max. Voltage:
-
400V
Quick Details
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHIMING
-
Model Number:
-
ZMQ2
-
Rated Current:
-
100A ~ 1250A
-
Certificate:
-
ISO9001
-
Material:
-
Copper
-
Pole:
-
3P/4P
-
Max. Current:
-
2000A
-
Max. Voltage:
-
400V
Need more information Pls click here >>

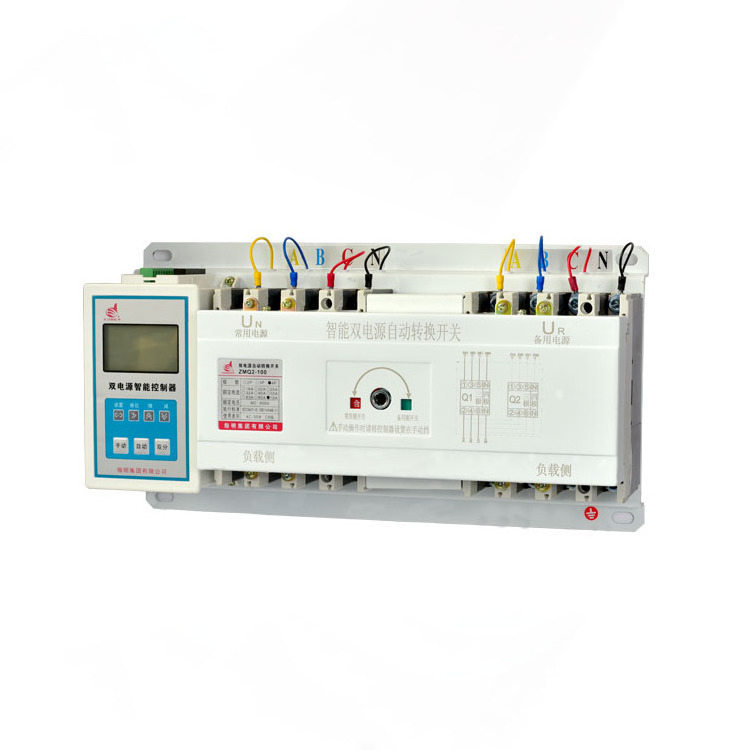

Zhiming 25 Years Supply ATS Automatic Transfer Switch For Generator
Application
ZMQ2 Series intelligent self-protection dual power switch for AC 50Hz, rated working voltage 400V, rated current 16A ~ 2000A. U sed in emergency power supply system of two normal power supply (N) and ready power supply (R) m utual conversion(can also be set to manual) and as a control, signaling, interlocking and other uses of the switching control circuit, the products with some models designed communication port, which can remote control, allowing users to achieve unattended substation. Suitable for residential areas, military facilities, hospitals, shopping malls, airports and other places.
Model
Main Technical data
| Type |
Frame current |
Rated working voltage |
Insulation voltage |
Frequency |
Delay time |
Rated working voltage controller |
Mechanic al life |
|
ZMQ2F/L -100/3 |
10.16.20.32.40. 50.63.80.100A |
400V |
2500V |
50HZ 60HZ |
0-30S | AC230V |
5000 times |
|
ZMQ2F/L -100/4 |
|||||||
|
ZMQ2F/L -225/3 |
100.125.140.160 180.200.225A |
||||||
| ZMQ2F/L -225/4 | |||||||
| ZMQ2F/L -400/3 |
200.250.315 350.400A |
||||||
| ZMQ2F/L -400/4 | |||||||
| ZMQ2F/L -630/3 |
250.315.350 400.500.630A |
||||||
| ZMQ2F/L -630/4 | |||||||
| ZMQ2F/L -800/3 | 630.700.800A | ||||||
| ZMQ2F/L -800/4 | |||||||
| ZMQ2F/L -1250/3 | 1250.1600.2000A | ||||||
| ZMQ2F/L -1250/4 |
