Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-

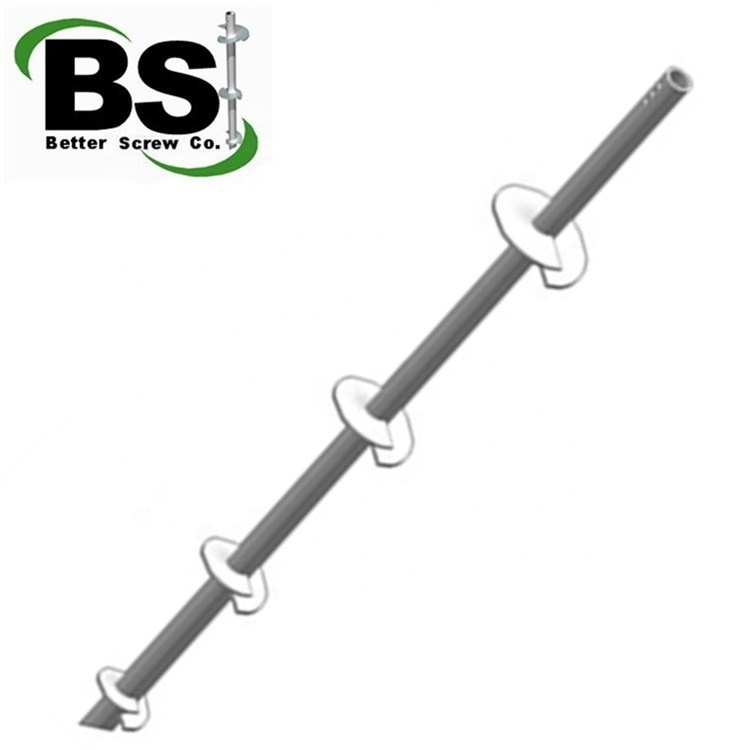

Solar Helical Blade Pile With Flange Ground Screw Piles
-
Surface treatment:
-
powder coated
-
material:
-
Galanized steel
-
Keyword:
-
helical pile
-
Length:
-
customized
-
Standard:
-
ASTM A500 Grade B/ASTM A572 Grade 50
-
Wall Thickness:
-
0.262-0.562in
-
MOQ:
-
500 Pieces
-
Color:
-
green/yellow/customized
-
Shape:
-
round
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Solar Helical Blade Pile With Flange Ground Screw Piles
-
Surface treatment:
-
powder coated
-
material:
-
Galanized steel
-
Keyword:
-
helical pile
-
Length:
-
customized
-
Standard:
-
ASTM A500 Grade B/ASTM A572 Grade 50
-
Wall Thickness:
-
0.262-0.562in
-
MOQ:
-
500 Pieces
-
Color:
-
green/yellow/customized
-
Shape:
-
round
Shaft material : Seamless high tensile pipe, confirms to ASTM A500 GRADE B or other customized material.
Helical Material : ASTM A36 hot rolled plate.
Corrosion protection confirms to ASTM153 stanard for hot dipped zinc coating.
Round shank anchors are hot dip galvanized to meet ASTM Specification A153.
Leading edge of helices beveled 45 degrees.
Greater section modulus strength to resist twisting and deflection.
Greater load capacities.
| Specification | |||||
|
shaft Size (inch) |
Wall Thick (inch) |
Helix Thick (inch) |
Helical Lead Length (ft) |
Helix Size (inch) |
Extension Length (ft) |
| 2.875OD | 0.262 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 3.0OD | 0.238 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 3.50OD | 0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 4.50OD | 0.290/0.337 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 5.50OD | 0.362 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 6.625OD | 0.562 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
1. Packaging:
Usually we shipping the products in 20ft’ container, or according to your demand.
2. Shipping
:
6-8 weeks after confirming your order.
OEM service is available, different materials and specifications can be customized according to your demands. From producing in our factory to shipping the goods directly to your port or company, we supply all-in-one service for our customers. With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time.
