Waste Pyrolysis Oil Used Black Waste Oil To Diesel Machine For Diesel

Waste engine oil/pyrolysis oil can be refined into valuable diesel oil through catalytic cracking and high temperature distillation technology. It is a method of separating mixtures based on differences in volatilities of components in a boiling liquid mixture. After being distilled by the distillation plant, the oil may have dark color with bad smell, then we suggest to deep purify the oil, with Huayin matched color and smell removal system, you will get clean diesel oil as final products with beautiful light yellow color.

Waste oil refining plant distills the incoming crude oil, waste oil or lubrication oil into useful products such as diesel oil and fuel oils, gasoline or petrol, jet fuel, etc, the oil yield will be 85%-90%, the by-products are 10%-15% slag and syngas.

Distillation plant works as follows:
1. Pump waste oil into distillation reactor by oil pump.
2. Heat the reactor, and the liquid oil will slowly become oil gas, oil gas will go through catalytic chamber and condenser, then diesel will be cooled out first by controlling the temperature over 150 Celsius degrees.
3.The gasoline will be cooled out when the temperature is below 150 Celsius degrees, the rest of the system is same as pyrolysis system.

Waste pyrolysis oil used oil reconditioning to diesel refinery machine

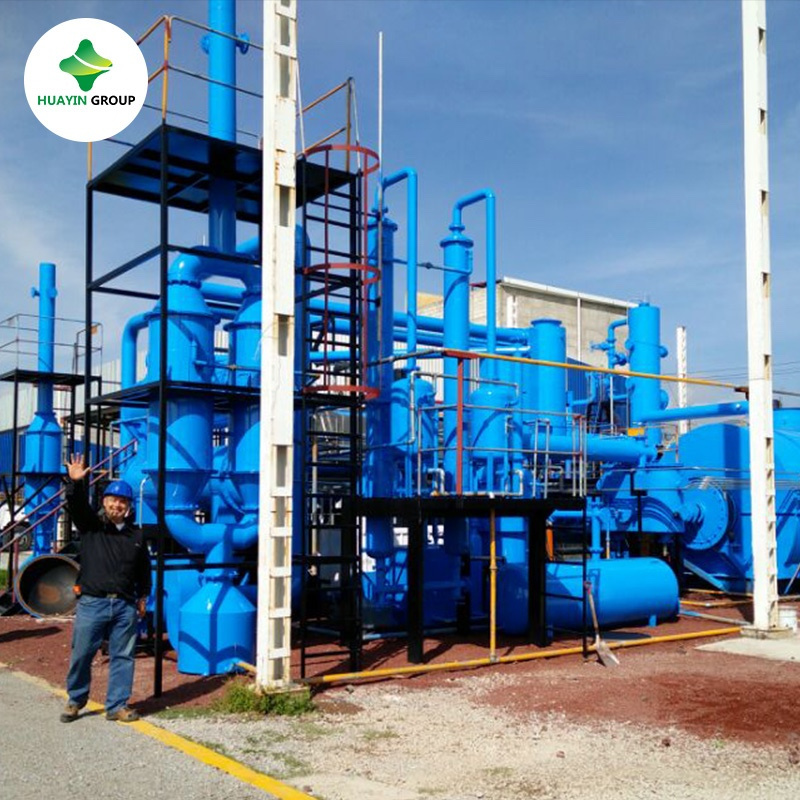

Below is our distillation machine installed in Benin

The Latest technology 5-30T oil distilaltion machine to diesel is amazing technical solution for different waste oil such as waste engine oil, pyrolysis oil, sludge oil, mud oil, very thick dirty impurities oil . This technology is mainly to use steam generator to make steam which can have effection with oil gas to reduce pressure to vacuum level .then when the operation is going on, diesel can be produced at 300℃ -550℃ ,however, now the highest temperature is 300℃ -380℃ .in this way oil quality will be highly improved and also fuel can be used less.

This machine will need one-time catalyst which is produced by our company only, there is no need to buy from other catalyst factory as we have the catalyst formula .it is customised.

Output product data

Huayin's  plants have been exported to india , Romania , Srilanka , Greece , Poland , Italy , Bulgaria , Chile , South Korea , Finland , Benin , indonesia , Thailand , England ...etc. over 50 countries.

1. All the equipment are certified by CE and ISO
2.Latest integrated design condensing system , 36 meters condensing pipes ,more cooling area, more effective cooling effect, higher oil yield
3.Equipped with safety valves, auto alarming system, anti-explosion valve, which will guarantee 100% safety
4. Flue tube condenser, cool down the exhaust gas from the burner, protect draft fan and improve dedusting effects.
5. Adopts ceramic packing Three-layer dedusting system to clean the exhaust gas to reach European pollution control standards.
6 . Automatic submerged welding technology, ultrasonic nondestructive testing, guarantee the equipment quality
7.Oil pump feeding and discharging, save much manpower.

1. Who has run the waste tire/plastic to oil recycling pyrolysis machines?
A: Safety. It's the most important thing in this high-profit oil gas business. Environment friendly Energy-saving Installation&worker training Technical support&update Service

1. Packaging Detail:
Needs 2*40HQ+1*40FR for delivery.
All goods are packed with exported standards package to make sure no damage during transportation.
2. Shipment: 25 days after the deposit
