Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
zhongding
-
Voltage:
-
380V 50HZ or as customized
-
Weight (KG):
-
8800 KG
-
Dimension(L*W*H):
-
3800*1500*1700mm
-
Product name:
-
200T 10 Layers hydraulic hot press machine plywood hot press machine
-
Model:
-
ZD214X8/20(10)H
-
Platen No&Size:
-
1500*3000*42mm
-
Table Pressure:
-
2000KN
-
Working Layers NO.:
-
10
-
Cylinder No.&Diameter(mm):
-
8 x100mm
-
Heating Method:
-
Electrical heated with Conduction oil
-
Hot Platen open way:
-
Automatically
-
Closing Speed:
-
40mm/s
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Max.Pressure(T):
-
200
-
Working Table Size(mm):
-
1500*3000
-
Warranty of core components:
-
1 years
-
Place of Origin:
-
China
-
Brand Name:
-
zhongding
-
Voltage:
-
380V 50HZ or as customized
-
Weight (KG):
-
8800 KG
-
Dimension(L*W*H):
-
3800*1500*1700mm
-
Product name:
-
200T 10 Layers hydraulic hot press machine plywood hot press machine
-
Model:
-
ZD214X8/20(10)H
-
Platen No&Size:
-
1500*3000*42mm
-
Table Pressure:
-
2000KN
-
Working Layers NO.:
-
10
-
Cylinder No.&Diameter(mm):
-
8 x100mm
-
Heating Method:
-
Electrical heated with Conduction oil
-
Hot Platen open way:
-
Automatically
-
Closing Speed:
-
40mm/s
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Overview

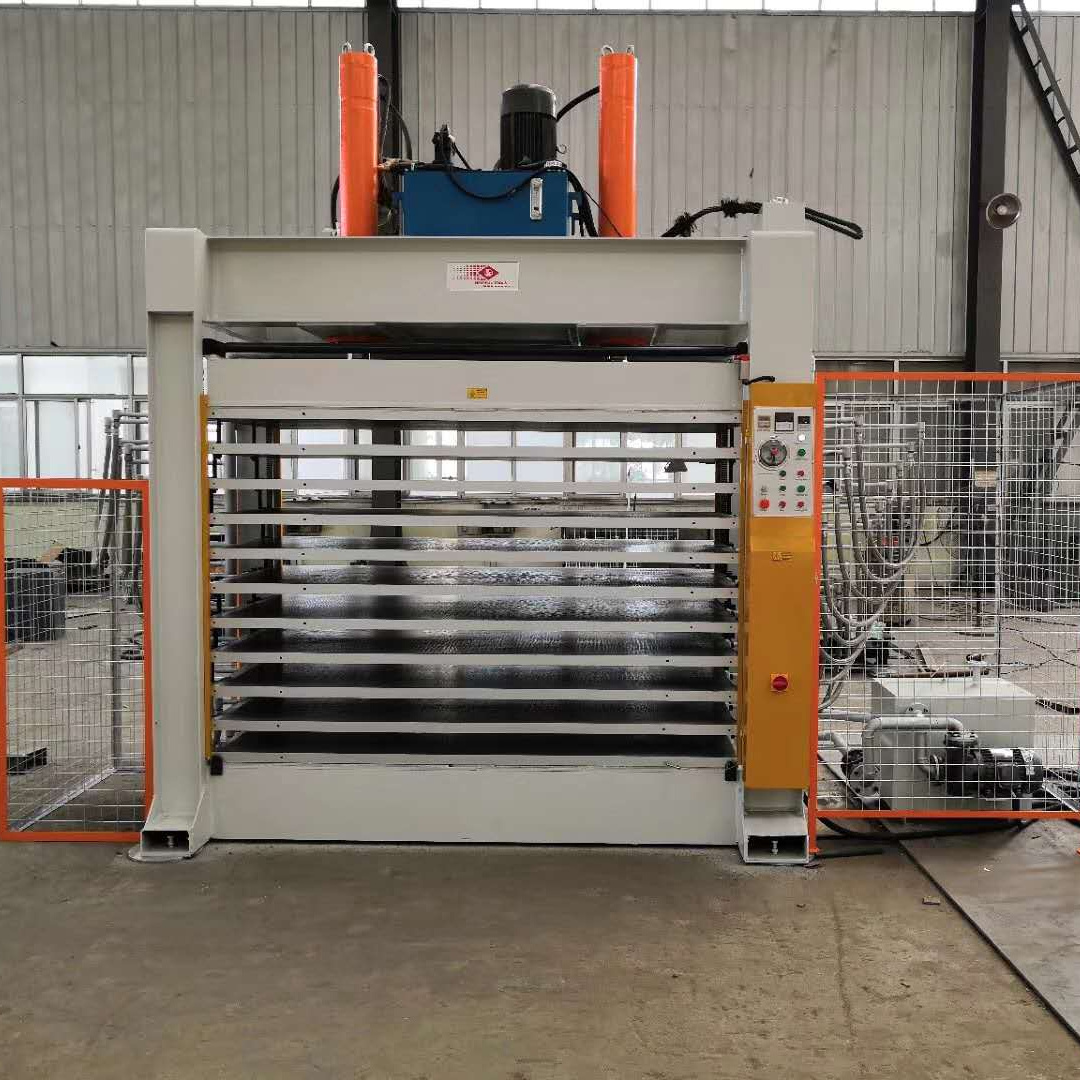

200 Tons 10 Layers hydraulic hot press machine plywood hot press machine
Hot press machine-ZD214*8/12(10)H
The application of hydraulic heat press is to press or combine the laminate sheets on to the plywood, doors, boards or block boards. Hydraulic cold press are widely used in the plywood industry, furniture making industries, to stick the laminate sheets on to the plywood, doors, boards or block boards. The main function of this machine is to make a instantaneous and nonstop pressure on work piece
PRODUCT SPECIFICATIONS
|
Model
|
ZD214x8/20(3)H
|
ZD214x8/20(6)H
|
|
Total pressure (KN)
|
2000 KN
|
2000 KN
|
|
Platen No & size (mm)
|
1500x3000x42 mm
|
1500x3000x42 mm
|
|
Opening (mm)
|
80-150 mm
|
80-150 mm
|
|
Working layer Numbers （Customized)
|
3
|
6
|
|
Cylinder No &Diameter (mm)
|
8 xФ100mm
|
8 xФ100mm
|
|
Heating way
|
Electric heated with conduction oil
|
Electric heated with conduction oil
|
|
Hot platen open way
|
Automatically
|
Automatically
|
|
Closing speed (mm/s)
|
40 mm/s
|
40 mm/s
|
