Quick Details
-
Certification:
-
ISO 9001:2015, CE, RoHS
Quick Details
-
Place of Origin:
-
Pulau Pinang, Malaysia
-
Brand Name:
-
ALGATEC
-
Warranty:
-
5 Years
-
Certification:
-
ISO 9001:2015, CE, RoHS
Product Description

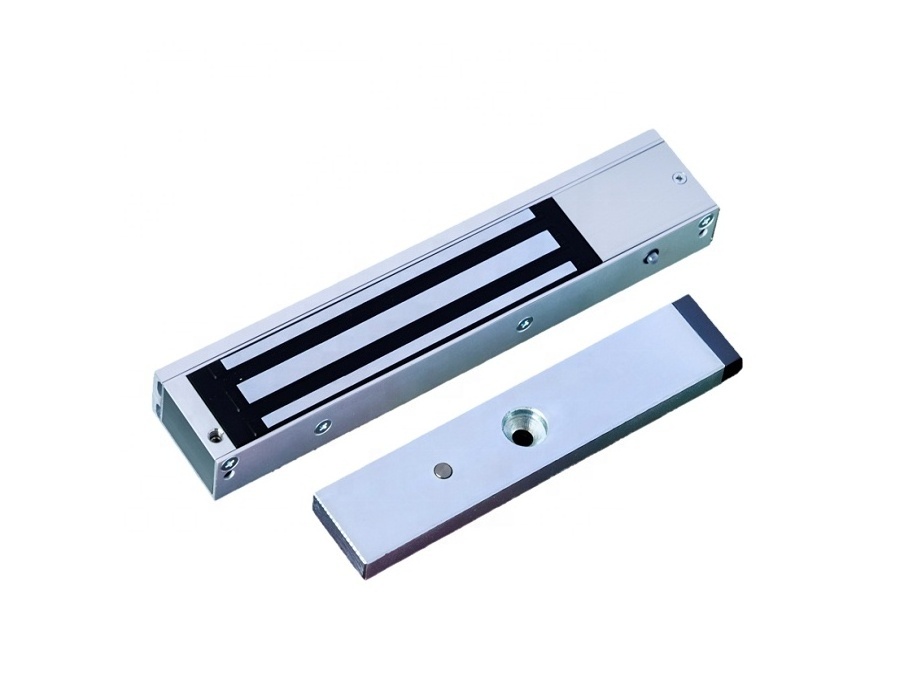

- 600lbs Single Series Surface EM locks were designed to meet fire/life safety applications by providing an auxiliary locking mechanism that has no moving parts to bind or wear out for trouble free operation.
- Integrated Door Status Monitoring Function (DSMF) with inbuilt reed switch
- Integrated Lock Status Monitoring Function (LSMF) with inbuilt bond sensor.
- UL275BWM-SL is inbuilt with reed switch on PCBA board.
- Provides more consistent and stable door status monitoring.
- Less wiring hazzles.
- Fail Safe,Robust, Durable & Efficient.
- Zero Residual Magnetism.
- Dual Voltage Input, 12Vdc or 24Vdc selectable.
- Ease of installation with low maintenance & low energy consumption.
- Operate quietly & care free .
- Versatile mounting brackets: U1-275, ZL-275, LS-275, GG-275, ZLC-275, ZLC-275-G, ZLDC-275-G, LSDC-275-G, AH-275, AB-275 are suitable for 600lbs electromagnetic lock.
Features
1) Lock Status Monitoring Function with Inbuild Bond Sensor.
2) Door Status Monitoring Function with Inbuild Reed Switch.
3) Zero Residual Magnetism with Instant Release Feature.
4) LED Indication: Green Indicates Door Locked; Red Indicates Door Released.
5) Dual Voltage Input: 12/24 Vdc Selectable.
Specification
|
Item
|
Details
|
|
Place of Origin
|
Malaysia
|
|
Brand Name
|
ALGATEC
|
|
Model Number
|
UL275BWM-SL
|
|
Certification
|
ISO 9001:2015, CE Certified, RoHS Compliant, TUV Performance Test, Fire Resistance Performance Test
|
|
Product Type
|
Single Series Surface Electromagnetic Lock
|
|
Size
|
250 X 42 X 26 (mm)
|
|
Warranty
|
5 Years
|
|
Application
|
Single Series EM Lock is for access control system which serve in diverse applications such as corporate building, retail, industrial, hospital, transportation, finance institution and military facility. It is a surface mount that ideal for single leaf wooden door, glass door, aluminium door frame and etc.
|
|
Features
|
UL275BWM-SL
|
|
Lock Status Monitoring
|
Yes
|
|
Door Status Monitoring
|
With Inbuilt Reed Switch
|
|
Holding Force
|
Up to 600lbs
|
|
Magnet Size
|
250 x 42 x 26mm
|
|
Armature Size
|
180 x 38 x 11mm
|
|
Housing Finishing
|
Anodized Aluminium Housing
|
|
Est. Weight
|
2.0kg
|
Suitable Mounting Brackets Selections
U1-275
ZL-275
