Quick Details
-
Key words:
-
GW-30LGDWLN
-
Frequency:
-
400&800&900&1800MHz
-
Gain:
-
80dB
-
Output Power:
-
30dBm
-
Coverage:
-
100000sqm
-
Net Weight:
-
45Kg
-
Product Size:
-
447*357*203mm
-
Quality Warranty:
-
12 Months
Quick Details
-
Brand Name:
-
GREETWIN
-
Model Number:
-
GW-30LGDWLN
-
Place of Origin:
-
Guangdong, China
-
Key words:
-
GW-30LGDWLN
-
Frequency:
-
400&800&900&1800MHz
-
Gain:
-
80dB
-
Output Power:
-
30dBm
-
Coverage:
-
100000sqm
-
Net Weight:
-
45Kg
-
Product Size:
-
447*357*203mm
-
Quality Warranty:
-
12 Months
Model: GW-30LGDWLN

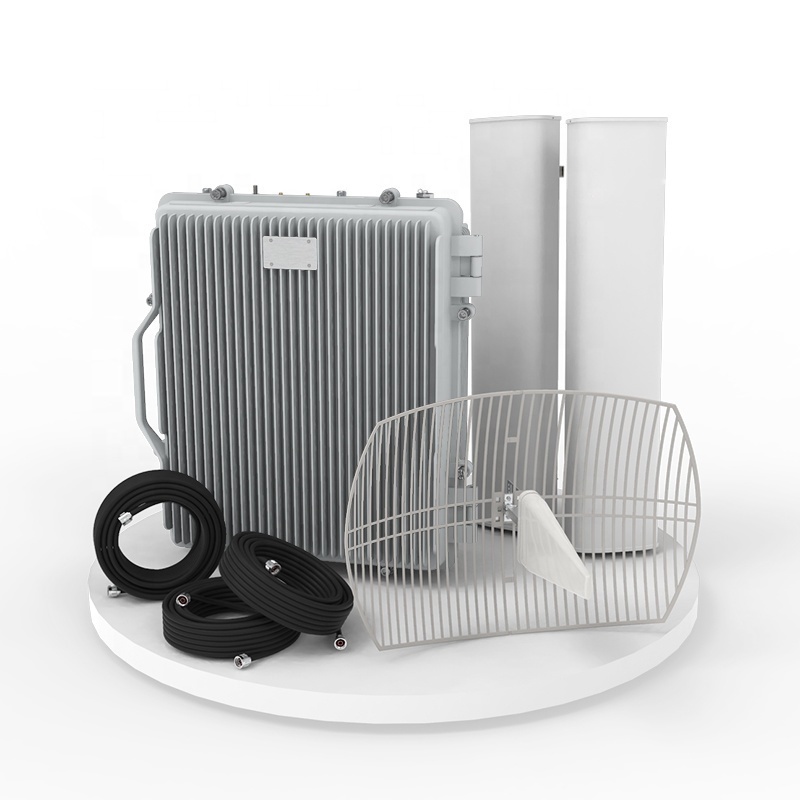

The Six-band RF Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
|
Items |
Specifications |
|
|
System |
2G/3G/4G/5G |
|
|
Frequency Range |
Uplink |
832 ~ 862&880 ~ 915&1710 ~ 1785&1920 ~ 1980&2500 ~ 257 0 &3400 ~ 380 0MHz |
|
Downlink |
791 ~ 821&925 ~ 960&1805 ~ 1880&2110 ~ 2170&2620 ~ 2690&3400 ~ 380 0MHz |
|
|
Bandwidth |
30&35&75&60&70&200MHz 3400-3600 or 3600-3800 |
|
|
Output Power |
Uplink |
2 3 ±2 dBm |
|
Downlink |
30 ±2 dBm |
|
|
Maximum Gain |
Uplink |
75 ±3dB |
|
Downlink |
80 ±3dB |
|
|
MGC(Step Attenuation) |
0~3 0 dB @ Step of 1dB |
|
|
AGC |
≥20d B |
|
|
VSWR |
≤ 2.4 |
|
|
Spurious Emission |
9KHz~1GHz: ≤ -36dBm |
|
|
1GHz~12.75GHz: ≤ -30dBm |
||
|
Frequency Stability |
≤ 0.01ppm |
|
|
Noise Figure |
≤ 8 dB |
|
|
System Delay |
≤ 1. 5μs |
|
|
I/O Impedance |
50Ω |
|
|
RF Connector |
2 X N- Female |
|
|
Power Supply |
Input:AC 2 20V, 50/60Hz |
|
|
P ower C onsumption |
≤ 180W |
|
|
LED Indicator |
Power, Running, Alarm |
|
|
Dimensions |
447*357*203mm |
|
|
≤ 30 kg |
||
|
Operating Temperature |
-25 ~ +50 °C |
|
|
Relative Humidity Range |
≤ 95%(Non Condensing) |
|
|
Ingress Protection |
I P65 |
|
|
Mounting |
Wall Mounting |
|
|
Local Control |
Via USB Interface and WiFi Hotspot |
|
|
NMS Mode (Optional) |
Cloud NMS via 4G Wireless Modem |
|
|
5G SA/NSA |
Support |
|
