Quick Details
-
Key words:
-
hvac round vent
-
Material:
-
Aluminum sheet
-
Material thickness:
-
1.3mm standard sheet
-
Surface finish:
-
Powder coated/ anodized finish
-
Standard color:
-
Ral9016 / 9010 finsih
-
Any color:
-
Available offer customized
-
Place to install:
-
ceiling place
-
Sample:
-
Free sample available
-
Characteristic:
-
up to diameter 630 mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vairtech
-
Model Number:
-
JD-B
-
Key words:
-
hvac round vent
-
Material:
-
Aluminum sheet
-
Material thickness:
-
1.3mm standard sheet
-
Surface finish:
-
Powder coated/ anodized finish
-
Standard color:
-
Ral9016 / 9010 finsih
-
Any color:
-
Available offer customized
-
Place to install:
-
ceiling place
-
Sample:
-
Free sample available
-
Characteristic:
-
up to diameter 630 mm

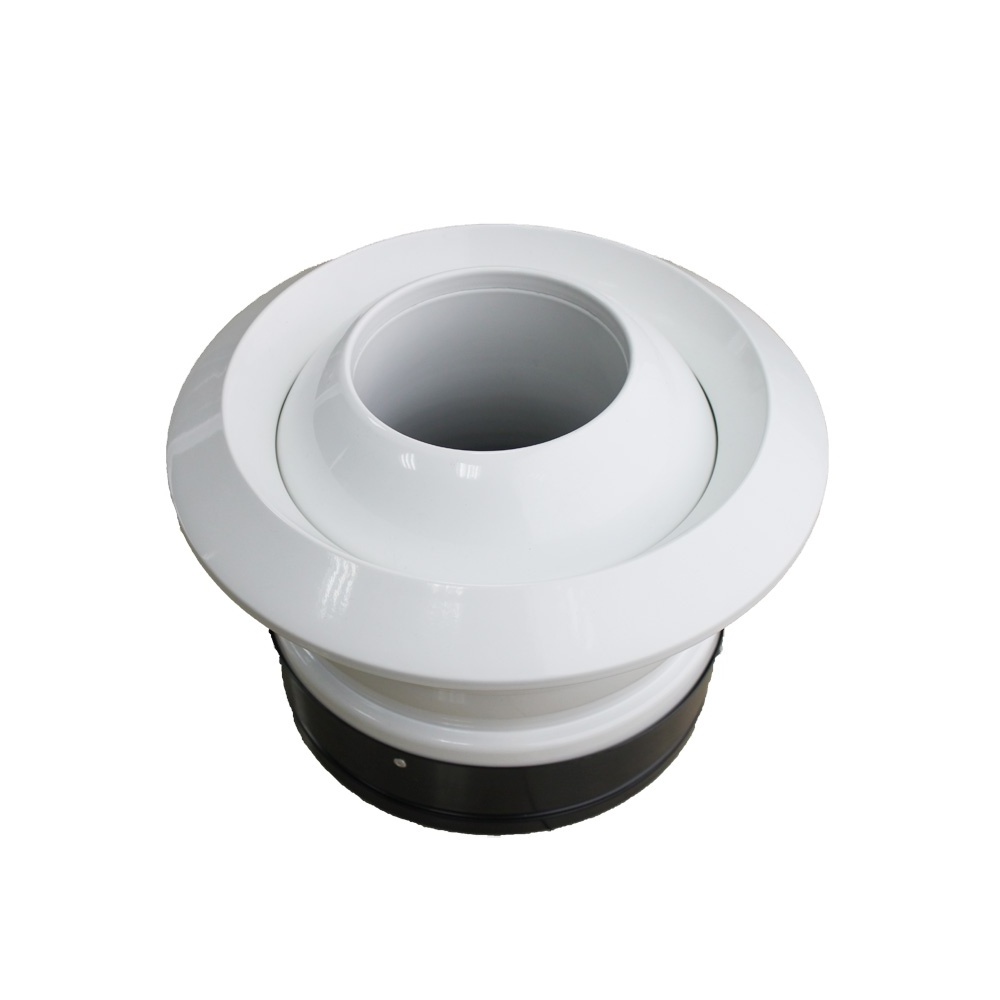

Air conditioning jet nozzle diffuser adjustable ceiling air duct diffuser
Construction:
- Frame & nozzel: High quality extruded aluminum alloy(A6063) sheet.
Description:
- The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
- This type of jet air diffuser is specially designed to use in the application where the high airflow capacity and long throw supply system is required. Airflow can be easily adjusted from a jet to a diffused pattern and the orientation of the airflow can be adjusted by moving the inner core.
- The discharge nozzel with spherical outlet mounted to a housing, The mounted circular flange is removable for easy installation and maintenance.
Surface Finish:
- Powder coated color finish as per RAL color-- standard color: RAL9016, 9010
Construction:
- Frame & nozzel: High quality extruded aluminum alloy(A6063) sheet.
Size:
|
Item Code |
Neck size (mm) |
Face size(mm) |
D2 |
L |
E |
|
JD-B-100 |
98 |
149 |
48 |
76 |
22 |
|
JD-B-125 |
122 |
172 |
61 |
95 |
24 |
|
JD-B-150 |
147 |
200 |
75 |
110 |
23 |
|
JD-B-160 |
157 |
210 |
80 |
110 |
23 |
|
JD-B-200 |
197 |
266 |
105 |
138 |
25 |
|
JD-B-250 |
247 |
310 |
128 |
175 |
27 |
|
JD-B-315 |
312 |
384 |
174 |
200 |
30 |
|
JD-B-350 |
347 |
433 |
185 |
210 |
30 |
|
JD-B-400 |
397 |
495 |
210 |
227 |
31 |
|
JD-B-450 |
447 |
523 |
233 |
240 |
32 |
|
JD-B-500 |
497 |
618 |
256 |
250 |
32 |
|
JD-B-630 |
627 |
779 |
323 |
280 |
43 |
