Quick Details
-
Screw Speed (rpm):
-
1500 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
anda
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Power (kW):
-
37
-
Weight:
-
20000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
pvc window profile making machine
-
Power(W):
-
37kw
-
Automatic Grade:
-
automatic
-
Raw material:
-
PVC Resins+CaCo3
-
Product Type:
-
Pvc Profile Extrusion Machine
-
Inverter:
-
ABB Brand
-
Contactor:
-
Schneider Brand
-
Machine type:
-
double screw extruder
-
Usage:
-
casement and sliding window profile
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132:1
-
Screw diameter (mm):
-
65 mm
-
Screw Speed (rpm):
-
1500 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
anda
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Power (kW):
-
37
-
Weight:
-
20000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
pvc window profile making machine
-
Power(W):
-
37kw
-
Automatic Grade:
-
automatic
-
Raw material:
-
PVC Resins+CaCo3
-
Product Type:
-
Pvc Profile Extrusion Machine
-
Inverter:
-
ABB Brand
-
Contactor:
-
Schneider Brand
-
Machine type:
-
double screw extruder
-
Usage:
-
casement and sliding window profile
Products Description
PVC door and window profile making machine：

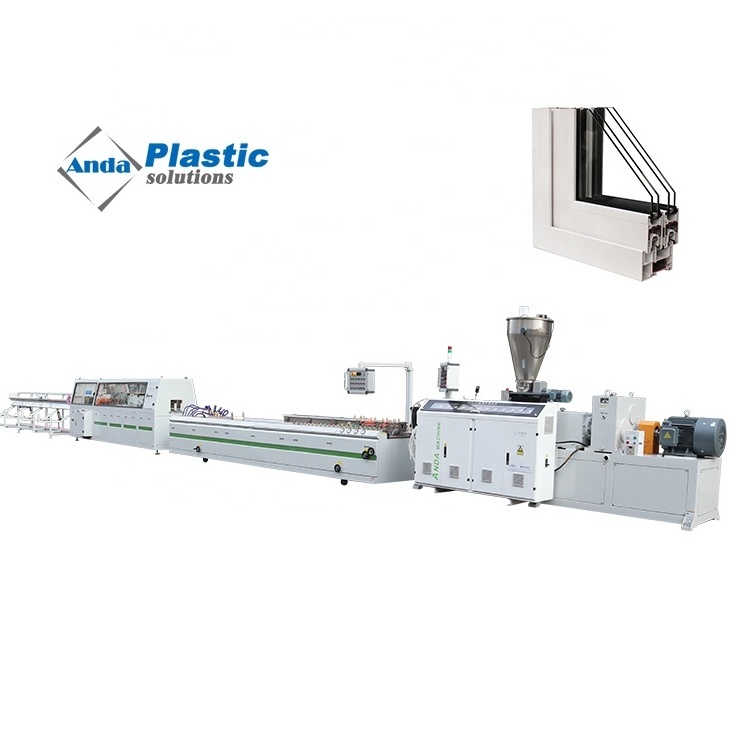

PVC door and window profile making machine mainly composed by conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different moulds, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel,PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.
And by changing screw barrel and mould, it can also produce PVC based WPC products, such as: WPC wall panel, WPC window
And by changing screw barrel and mould, it can also produce PVC based WPC products, such as: WPC wall panel, WPC window
Final Products
Product Details
1. PVC Door And Window Profile Production Line——Extruder
Extruder adopts PVC ceiling dedicated screw, make sure best plastisizing effect
Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed
Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level
2. PVC Door And Window Profile Production Line——Cooling Table
Use vacuum system which could better achieve cooling accomplished results.
3. PVC Door And Window Profile Production Line——Hauling Machine & Cutting Machine
Hauling Machine adopt alloy rubber blocks, strictly keep the smooth transition of profile.
Cutting Machine adopt stainless steel material which is wear-resistant and durable. It also equipped with dust cleaner device.
4. PVC Door And Window Profile Production Line——Stacker
Extruder adopts PVC ceiling dedicated screw, make sure best plastisizing effect
Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed
Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level
2. PVC Door And Window Profile Production Line——Cooling Table
Use vacuum system which could better achieve cooling accomplished results.
3. PVC Door And Window Profile Production Line——Hauling Machine & Cutting Machine
Hauling Machine adopt alloy rubber blocks, strictly keep the smooth transition of profile.
Cutting Machine adopt stainless steel material which is wear-resistant and durable. It also equipped with dust cleaner device.
4. PVC Door And Window Profile Production Line——Stacker
Machine parameters ：
|
Model
|
YF180
|
YF240
|
YF300
|
YF600
|
|
Extruder
|
55/110
|
65/132
|
80/156
|
80/156
|
|
Max applicable width
|
180mm
|
240mm
|
300mm
|
600mm
|
|
Motor power
|
22kw
|
37kw
|
55kw
|
55kw
|
Anda main products:
UPVC window and door profile production line
PVc edge band production line
WPC/PVc louver panel production line
PVC marble board production line
PS louver panel production line
PVC edge band production line with calender cooling
Vinyl siding panel production line
PVC fluted panel production line
PVC ceiling panel making machine
PVC wall panel production line
WPC wall panel production line
PVC marble sheet extrusion machine production line
Double color UV printing machine, transfer printing machine, lamiantion machines for PVC ceiling panel,wall panel,PVC door panels
ASA composited PVC roof tile extrusion machine and production line
PVC edge band production line with double screw extruder and single screw extruder
PVC profile extrusion machine and production line
PVC pipe extrusion machine and production line
PE PPR pipe extrusion machine and production line
PVC pulverizer machine
PE pulverizer
machine
hot and cooling PVC mixer for compounding
Main Features
1.World famous brand inverter--ABB, stable and reliable.
2.World famous brand controller--Schneider, reliable performance.
3.World famous brand temperature controller--Omron, precision temperature control, reliable and durable.
4.Automatically low power consumption: minimum total production line consumption is 25kw/hour.
5. Economical price, which is suitable for large scale investment.
2.World famous brand controller--Schneider, reliable performance.
3.World famous brand temperature controller--Omron, precision temperature control, reliable and durable.
4.Automatically low power consumption: minimum total production line consumption is 25kw/hour.
5. Economical price, which is suitable for large scale investment.
