Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhongzheng
-
Model Number:
-
zz002
-
Type:
-
Other Heat Insulation Materials
-
reflectivity:
-
96-97%
-
Material:
-
Aluminum Bubble Foil Insulation Consists
-
thermal conductivity:
-
0.032W/mk
-
emissivity:
-
0.03-0.04 COEF
-
apparent density:
-
54.8-85kg/m^3
-
working temperature:
-
-50C to 80C
-
bubble height:
-
2.5mm-10mm
-
bubble diameter:
-
10-25mm
-
Applications:
-
Metal & Steel frame or house
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhongzheng
-
Model Number:
-
zz002
-
Type:
-
Other Heat Insulation Materials
-
reflectivity:
-
96-97%
-
Material:
-
Aluminum Bubble Foil Insulation Consists
-
thermal conductivity:
-
0.032W/mk
-
emissivity:
-
0.03-0.04 COEF
-
apparent density:
-
54.8-85kg/m^3
-
working temperature:
-
-50C to 80C
-
bubble height:
-
2.5mm-10mm
-
bubble diameter:
-
10-25mm
-
Applications:
-
Metal & Steel frame or house
low thermal conductivity silica aerogel heat insulation
Product Introduction:

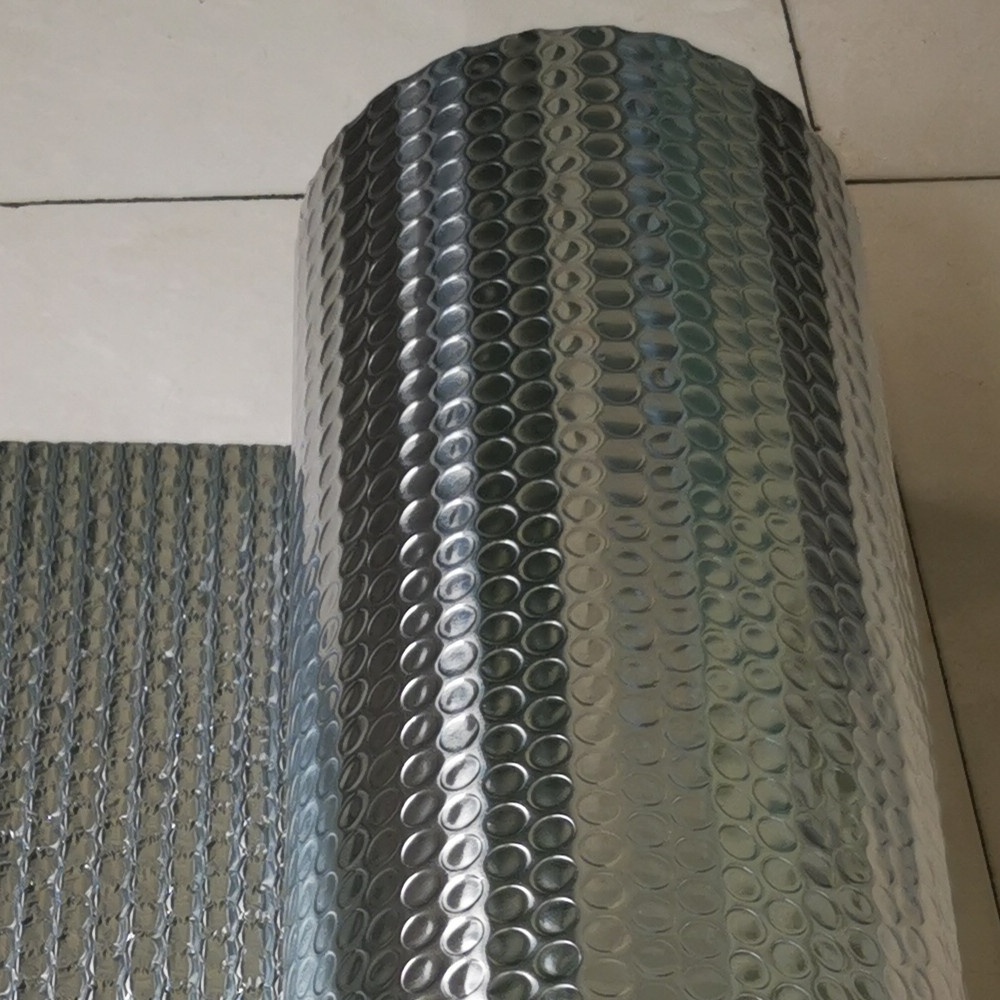

The product consists of three layers of aluminum foil with plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
It is an economical solution for a wide range of industrial, manufacturing and consumer applications.
| Main Material | Foil+ (single / double) PE bubble+Foil |
| Other Material Structure |
MPET + (single / double) PE bubble
MPET + (single / double) PE bubble + MPET Alu + (single / double) PE bubble Alu + (single / double) PE bubble + Alu Alu + woven + (single / double) PE bubble + Alu Alu + woven + (single / double) PE bubble + woven + Alu Alu + woven + (single / double) PE bubble + Alu + Anti-glare coating Alu + (single / double) PE bubble + woven + Alu + Anti-glare coating |
| Air Bubble Size | ¢ : 10mm, H: 2.5mm; ¢ : 10mm, H: 4mm; ¢ : 10mm, H: 6mm; ¢ : 20mm, H: 7mm; ¢ : 25mm, H: 8mm; ¢ : 25mm, H: 10mm |
| Coating Color | Blue, Green, Pink, Orange or customized |
| MPET/ Al Foil Thickness | 12micron/7 micron |
| Product Thickness | 2mm-10mm |
| Reflectivity | 96%~97% |
| Normal Roll size | 1.2m *30m/roll ; 1.2m *40m/roll; 1.35m *22.25m/roll; can be customized |
| Packing | 1 roll/ clear plastic bag or customized logo printing packing bag accept |
Technical features:
| Bubble Size:D 10mm *H 4mm ( 10*2.5/10*4/10*6/20*7/25*10 ) choose the bubble size |
| Roll Width:1.2m (lenth can be customized) |
| PROPERTIES | TEST DATA | UNIT |
| Emissivity | 0.03-0.04 | COEF |
| Thermal conductivity | 0.034 | w/m0 |
| Apparent Density | 85 | kg/m3 |
| Reflectivity | 95-96 | % |
| Water Vapour Transmission | 0.013 | g/M2 kpa |
| Corrosion | doesn't generate | |
| Tensile Strength(MD) | 16.98 | Mpa |
| Tensile Strength(TD) | 16.5 | Mpa |
Installation methods and Installation Projects:
- Measure the metal roof to determine the amount of bubble foil wrap insulation required for the project. Purchase approximately 10 to 15 percent more product than required to account for overlapping and to provide the proper air gap between the purlins -- the horizontal lengths of wood that support the roof panels between the rafters.
- Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin. Continue to unroll the foil insulation and attach it the remaining purlins, paying attention to allow the insulation to sag at least 1 inch between the horizontal members. The sagging provides an air gap that raises the insulation’s efficiency.
- Continue to attach the Aluminum foil bubble insulation to the metal roofing purloins, overlapping the adjoining sheets 2 inches as you go. This is a temporary hold to keep the bubble foil wrap in place while you prepare the next step.
- Secure the bubble foil to the framing members with furring strips. Attach the furring strips perpendicular to the purloins every 24 inches to the framing members with 2-inch metal screws, paying attention to not disrupt the insulation’s sagging. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
- Cover the seams of the bubble insulation with foil tape.
Application:
Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.
1. Thermal insulation and light inflecting in the constrction and protection for both cold winter and water piper
2. Separation of refrigerator,warm keeping for center air-conditioned,refrigerator and other home appliances
3. Thermal insulation,sound absorption and noise reduction for car ,train, refrigerator car and laboratory, moisture proof cushion for traveling.
FAQ: .
1. Are you a manufacturer?
Yes, we have our own factory, so we can offer a competitive factory price.
2.Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
