Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
6058*2591*2438mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LSXC
-
Gas Phase(MPa):
-
1.6Mpa
-
Brand:
-
LSXC
-
Transportation:
-
Sea or Raod
-
Shell Material:
-
Stainless Steel 316L
-
Burst Pressure(MPa):
-
<=0.1
-
Certification:
-
ISO9001
-
Product Color:
-
Customization
-
Measuring Range(MPa):
-
0-1.6Mpa
-
Design Temperature:
-
-196--50℃
-
Precision:
-
1.6Class
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
20ft/30ft/40ft
-
External Dimensions(l x W x H)(mm):
-
6058*2591*2438mm
-
Internal Dimensions(l x W x H)(mm):
-
6058*2591*2438mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LSXC
-
Gas Phase(MPa):
-
1.6Mpa
-
Brand:
-
LSXC
-
Transportation:
-
Sea or Raod
-
Shell Material:
-
Stainless Steel 316L
-
Burst Pressure(MPa):
-
<=0.1
-
Certification:
-
ISO9001
-
Product Color:
-
Customization
-
Measuring Range(MPa):
-
0-1.6Mpa
-
Design Temperature:
-
-196--50℃
-
Precision:
-
1.6Class
Factory Price 20ft 40ft T75 Cryogenic Storage ISO Storage Tank Container For LNG/Lar/Lin/Lox/N2o/Hydrogen/Methane/Ethylene

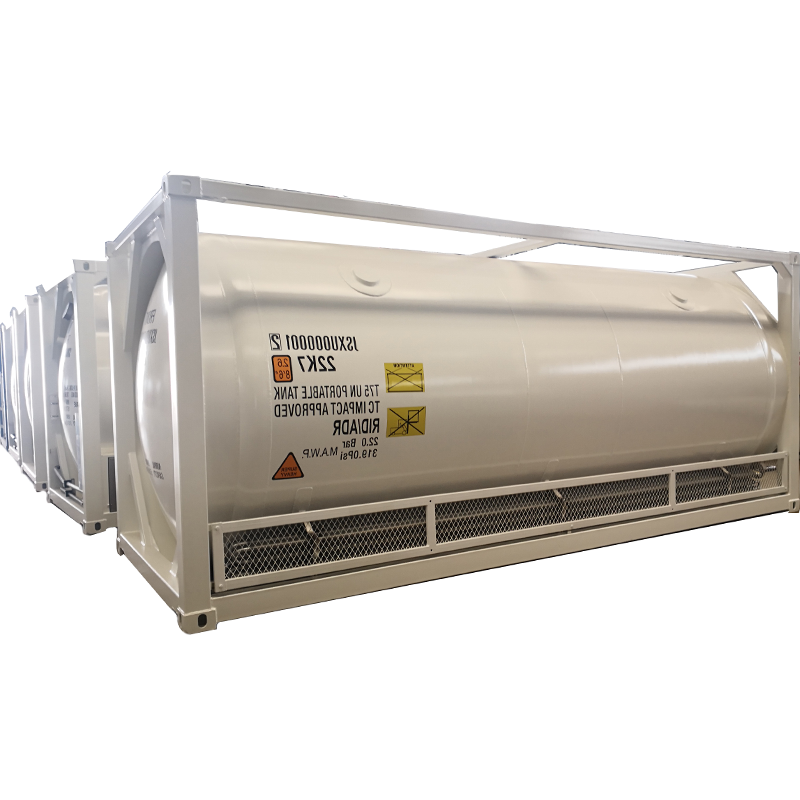

Product pictures
Product parameter
|
Guidelines for tank container
|
|
|
T75
|
|
|
|
|||||
|
Container Type of this tank container
|
|
|
1AA
|
|
|
|
|||||
|
Rated weight for this tank container
|
|
|
32723kgs
|
|
|
|
|||||
|
Maximum Allowed Loading Weight for this tank container
|
|
|
14700kgs
|
|
|
|
|||||
|
Tare weight for this tank container
|
|
|
18023kgs
|
|
|
|
|||||
|
Allowed stacking weight for this tank container
|
|
|
192000kgs
|
|
|
|
|||||
|
Manufacturing license level of this tank container
|
|
|
Inside tank
|
|
|
C3
|
|||||
|
|
|
|
outside tank
|
|
|
|
|||||
|
Max. Working Pressure(Mpa.) for this tank container
|
|
|
Inside tank(MPa)
|
|
|
0.7
|
|||||
|
|
|
|
outside tank(MPa)
|
|
|
-0.1(Vacuum)
|
|||||
|
Min. Working Tempretrues for this tank container
|
|
|
Inside tank
|
|
|
-162 °C
|
|||||
|
|
|
|
outside tank
|
|
|
-20°C
|
|||||
|
Design Pressure(Mpa.) for this tank container
|
|
|
Inside tank
|
|
|
0.8
|
|||||
|
|
|
|
outside tank
|
|
|
-0.1/0.2
|
|||||
|
Design Tempretrues for this tank container
|
|
|
Inside tank
|
|
|
-196 °C
|
|||||
|
|
|
|
outside tank
|
|
|
50 °C
|
|||||
|
The Main material for this tank container
|
|
|
Cover
|
|
inside tank
|
S30408
|
|||||
|
|
|
|
|
|
outside tank
|
Q345R
|
|||||
|
|
|
|
Shell
|
|
inside tank
|
S30408
|
|||||
|
|
|
|
|
|
outside tank
|
Q345R
|
|||||
|
Overall Size(Frame)/L*W*H/mm for this tank container
|
|
|
12192*2438*2591
|
|
|
|
|||||
|
Media for this tank container
|
|
|
Inside tank
|
|
|
LNG
|
|||||
|
Media Characteristics for this tank container
|
|
|
Inside tank
|
|
|
explosive
|
|||||
|
Painting for this tank container
|
|
|
Frame
|
|
|
30µm +40µm +50µm
|
|||||
|
|
|
|
Shell
|
|
|
30µm +40µm +50µm
|
|||||
|
Total Volume(L) for this tank container
|
|
|
40440
|
|
|
|
|||||
|
Effective volume(L) for this tank container
|
|
|
36400
|
|
|
|
|||||
|
Rated filling rate for this tank container
|
|
|
90%
|
|
|
|
|||||
|
Corrosion allowance for this tank container
|
|
|
Inside tank
|
|
|
0mm
|
|||||
|
|
|
|
outside tank
|
|
|
1mm
|
|||||
|
Air tightness test pressure(Mpa) for this tank container
|
|
|
Inside tank
|
|
|
0.8mm
|
|||||
|
|
|
|
outside tank
|
|
|
0.2mm
|
|||||
|
Air pressure test pressure for this tank container
|
|
|
Inside tank(MPa)
|
|
|
0.92
|
|||||
|
Welding joint coefficient for this tank container
|
|
|
Inside tank
|
|
|
1
|
|||||
|
|
|
|
outside tank
|
|
|
0.85
|
|||||
|
Static evaporation rate for this tank container
|
|
|
Inside tank
|
|
|
<=0.18
|
|||||
|
Material density(kg/m3) for this tank container
|
|
|
Inside tank
|
|
|
426
|
|||||
|
Natural boost rate for this tank container
|
|
|
Inside tank
|
|
|
<=13
|
|||||
|
Main hazard category for this tank container
|
|
|
2.1
|
|
|
|
|||||
|
Design service life for this tank container
|
|
|
15 years
|
|
|
|
|||||
|
Mode of transportation for this tank container
|
|
|
Road,Sea or Railway
|
|
|
|
|||||
|
Adiabatic form for this tank container
|
|
|
High vacuum multilayer insulation
|
|
|
|
|||||
1.This frame tank container should carry out all kinds of the test according to the GB / T16563-1996 and China Classification Society "Container Inspection Code".
2.Except for the pictures' mark, the type and size of the welded structure shall be in accordance with GB / 985.1. The height of the weld foot and weld fillet is according to the thickness of the less thinner steel plate.There should not be crack, slag, porosity, or undercut, etc. on the surface of the welded joint.Weld seam surface will be inspected through the magnetic powder or penetration testing (preferred magnetic powder). Meet NB / t47013.4 (5) -2015, Class I qualified.
3.The accessories for this tank container shall meet the corresponding standards of product quality certification,which can be carried out the air tightness test together with the tank after passing the re-examination and form a complete set then delivery from the factory;
4.Valve opening operation,should be able to withstand the pressure of the air tightness test , fully
open, fully closed, flexible operation, no abnormal resistance, idling and so on;
open, fully closed, flexible operation, no abnormal resistance, idling and so on;
5.All signs, brand names, stickers will be made according to the drawings after the competion of the painting; The area around the signs, brand names and rivets will be sealed with the sealant.
6.The vertical plane of the longitudinal centerline of the tank container shall be coincident with the vertical
plane of the longitudinal centerline of the frame. The offset shall not exceed 5mm.
plane of the longitudinal centerline of the frame. The offset shall not exceed 5mm.
7.All supports of the connections between the tank and the frame should be thin welding, and welding firm and reliable, the weld seam surface shall not have cracks, undercut,stomatal, crater and splash.
8.Tank coating in line with the relevant provisions of JB / T4711-2003. After complete cleaning the
rust of the outside carbon steel surface of the tank,coated two anti-rust primer, two white finish.
rust of the outside carbon steel surface of the tank,coated two anti-rust primer, two white finish.
9.The tank needs to be replaced with nitrogen or vacuumed before leaving the factory.
(1) the use of nitrogen replacement treatment, the oxygen content after treatment is less than 3%, and keep the residual pressure 0.05Mpa ~ 0.1Mpar;
(2) the use of vacuum treatment, the vacuum after treatment is not less than 0.086Mpa.
(1) the use of nitrogen replacement treatment, the oxygen content after treatment is less than 3%, and keep the residual pressure 0.05Mpa ~ 0.1Mpar;
(2) the use of vacuum treatment, the vacuum after treatment is not less than 0.086Mpa.
10.Emergency cut-off device should be installed before the air tightness test, the test medium is air, the test pressure is 0.1Mpa;After the installation is complete,Emergency shut-off device should be done through emergency cut off and filter protection test, gas valve, liquid valve and booster valve completely closed in 5S qualified, air source control valve rotation flexibility, no jamming phenomenon.
Product details pictures
They can be used to safely store a variety of products,Cryogenic pressure vessels can be made out of quality stainless steel or carbon shells. These cryogenic vessels can be made with single, double, or triple wall to provide the best insulation for your specific requirements. Available in low and high pressure models, cryogenic vessels are easy to operate and can be built to almost any capacity. The cryogenic vessels feature automated pressure-building circuitry and standard safety and control equipment. Cryogenic vessels are built with liquid level indicators so you know exactly how much is stored inside your vessel while vacuum and pressure gauges provide constant monitoring of conditions inside of your tank. Release valves and other safety equipment help to ensure that the cryogenic vessels operate in accordance with safety standards. We can manufacture both horizontal and vertical cryogenic tanks to meet the needs of all workplaces.
Workshop pictures display
Our factory with more than 20 years' experience. Being famous in domestic and foreign countries, we concentrate on tank container and trailer's research and development. Our aim is to provide high quality and low price products for the customer. Experienced and technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have mature solutions at any time
Hot products
Our hot-selling products are very popular with customers. For other products, please click below to view.
Certification
International Market: Annual production capacity 8000units of the Tank Containers,and the annual total sales 3500units, Of which, we have exported more than 800units Tank containers, Cryogenic Tank Semi Trailer to more 25 countries around the world, including Mexico, Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria, Saudi Arabia, Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine, Philippines,Indonesia, Malaysia, Bangladesh, etc. What's more, we have established long-term semitrailer&tanks supply contracts with more than 10 famous transportation&other type of the enterprises in the world.
Transportation
We can use road transportation and sea transportation. Our transportation is easy to ship,the main advantage of our transportation is flexibility.
Company information
Henan Lishixin Logistics Equipment Co..Ltd is located in Zhengzhou FTA, Henan Province,China,
with a registered capital of 3,500,000 USD.Lishixin is specialized in the R&D, mass production and sales of kinds of the 20FT、30FT、40FT ISO Storage Tank Containers and Storage Tanks as well as other special logistic Transportation equipments.
Based on rich transportation advantages and resource of Central China, Lishixin is committed to supply high quality and cost-effective transportation equipment for clients all over the world.
Our service
1.We will provide you one-to-one service throughout the entire process, answering questions about products before sales and checking and debugging equipment after sales, and assisting in equipment maintenance and testing.
2.Our company promises to provide one-year warranty for all new equipment and free consulting service for life.
3.After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.
2.Our company promises to provide one-year warranty for all new equipment and free consulting service for life.
3.After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.
Customer visit
1. Our transportation equipment supports customized services, customized according to your different needs is your own unique transportation equipment.
3. After-sales service is accurate and in place, proactively and promptly deal with after-sales problems for you, and support video after-sales service, if necessary, an engineer can also be arranged for on-site service.
FAQ
1. What is your MOQ?
A:One unit.
2. Can you meet my special requirements?
A:Sure! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
3. How is the quality of your products?
A:High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc.at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
A:You can contact us through any of the following contact methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
A:It's totally acceptable.
6: What is the delivery time?
A:The delivery time is within 30-50 working days after receiving your prepayment.
A:One unit.
2. Can you meet my special requirements?
A:Sure! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
3. How is the quality of your products?
A:High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc.at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
A:You can contact us through any of the following contact methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
A:It's totally acceptable.
6: What is the delivery time?
A:The delivery time is within 30-50 working days after receiving your prepayment.
