Product Specification

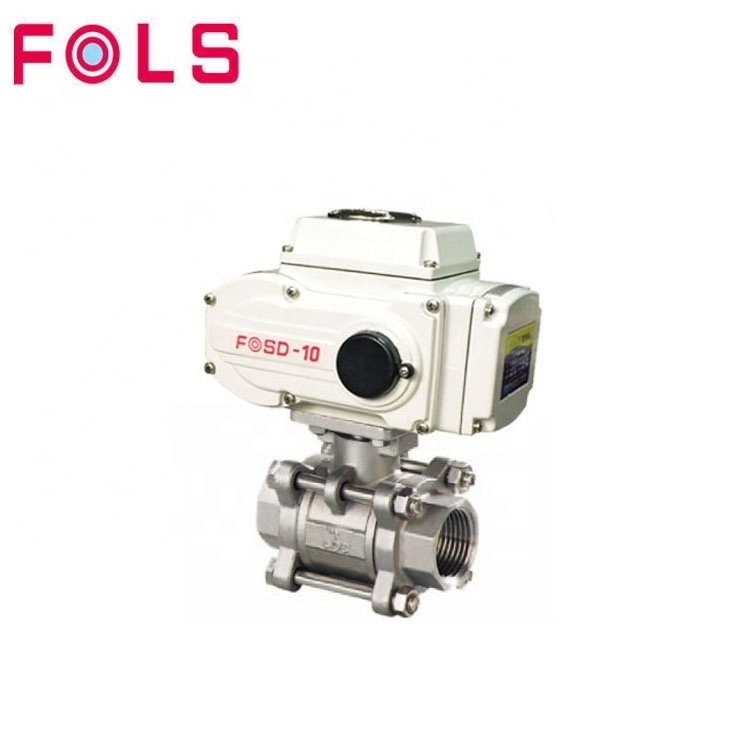

3 pieces ball valves with electric actuators
Electric 3 piece ball valve is equipped with FOSE series electric actuator, it needn’t extra servo amplifier, accept 4-20mA or 1-5 V DC input signal to regulating the medium. The 3 piece design ball valve is characterized by strong function, small volume, light weight, reliable performance, simple equipment, strong flow capacity, especially suitable for the medium that contain slurry, fiber, widely used in paper making, sugar industry, petroleum, chemistry, metallurgy, air-condition, fire protection, water supply and industrial automation and so on.

Integrated structure electric three-piece ball valve match with FOSD Electric actuator, and can be run with input(4-20mA DC, 0-10VDC or 1-5V) signals or single-phase power. With the function of small volume, flow capacity, high regulation precision, good sealing, and light weight,ect. The valve is widely used in food, environmental protection, light industry, petroleum, paper, chemicals, teaching and research equiment, and electric power industrial automation control systems.

Product features
Thread and bult welded connection ball valve can be divided into 1-piece, 2-piece, 3-piece. Boby cast adopt the advanced technology from Taiwan, with reasonable structure and beautiful shape. The elastic sealing structure make the seat reliable and easy to start. Valve steam seal downloading using inverted structure. The lower-loading stem with backward sealing construction not only prevents the handle form backing-out but also ensures the reliability of the scaling part if the handle. There is bult weld(WB). socket welding(SW) connection of the 2-piece,3-piece ball valve and can match with the international standard ISO platform and locking devices.

Body
Nominal size: DN15-DN80
Body material: WCB, 304, 316, 316L
Connection type: Thread
Pressure class: PN16-PN4.0MPa
Structure type: Floating ball core Valve components
Seat material: PTFE: -30~180C
PPL: -30~250C
Core material: 304, 316, 316L
Stem material: 304
Applicable medium: Water, oil, steam, etc Performance

Design and manufacturing standards
Thread standard: G, NPT, BSPT, BSP, DIN259/2999
Top flange: ISO5211
Pressure testing: ISO5208 API598

Fire protection design
ISO5211 standard direct mounting actuator
Antistatic device between the core and the valve body
Stem explosion-proof design
Double butterfly shaped spring automatic compression packing design
Allow pressure differential: Less than nominal pressure 1.6MPa
Leakage: Zero leakage
Return difference: ±2.5%

Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V\380V\110V\24V,DC12V\24V etc; Special voltage can be customized.
Explosion-proof class: Can be choose explosion-proof type EX d IIBT4

Specification of Electric Actuator
