Sample: High quality dry dog cat pet food machine
Layout:

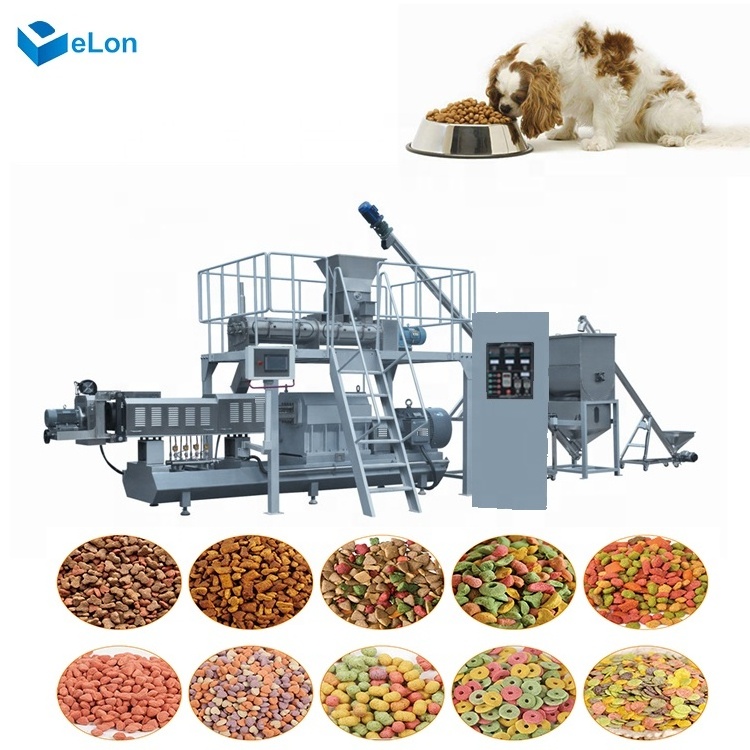

High quality dry dog cat pet food machine
Ingredients are brought together in a mixer. Dry ingredients may be ground prior to introduction to wet ingredients. Once mixed together, they form a moist dough.
The dough is heated in the preconditioner prior to introduction to the extruder.
The extruder is where the primary cooking phase for dry extruded pet food products occurs. The dough is cooked under intense heat and pressure as it moves toward the open end of the extruder. At the end of the extruder, hot dough passes through a shaping die and knife where the small pieces expand rapidly into kibble once they are under standard air pressure.
Kibble is dried in an oven until its moisture content is low enough to make it shelf stable like a cookie or cracker. The drying oven is followed by a cooling phase.
After cooling, kibble may pass through a machine that sprays on a coating, which is generally a flavor enhancer.
Packaging (bags, boxes, pouches, etc.) is filled during the last step to precise amounts to meet the weight advertised on the label. The final result is finished pet foods or treats.
|
Technical parameters of high quality dry dog cat pet food machine
|
|
|
||
|
Model
|
DL85
|
DL95
|
||
|
Input Voltage
|
380V/50Hz ,3P
|
380V/50Hz ,3P
|
||
|
Installed Power
|
90kW
|
145kW
|
||
|
Power Consumption
|
55kW
|
80kW
|
||
|
Production capacity
|
500-800kg/h
|
800-1200kg/h
|
||
|
Length
|
26m
|
28m
|
||
|
Manpower Needed
|
1 ~2 workers
|
1 ~2 workers
|
||
|
Material
|
Stainless steel
|
Stainless steel
|
||
|
Technical parameters of high quality dry dog cat pet food machine
|
|
|
|
|||
|
Model
|
DL-56
|
DL-70
|
DL-80
|
|||
|
Input Voltage
|
380V/50Hz ,3P
|
380V/50Hz ,3P
|
380V/50Hz ,3P
|
|||
|
Installed Power
|
66.84 kw
|
97.65 kw
|
146.65 kw
|
|||
|
Power Consumption
|
47.84 kw
|
76.65 kw
|
97.05 kw
|
|||
|
Capacity(output)
|
100-150 kg/h
|
200-300 kg/h
|
300-550 kg/h
|
|||
|
Installation Size
|
17.0 x1.2x 2.5 m
|
18.0 x1.2x 2.5 m
|
22.0 x1.2x 2.5 m
|
|||
|
Manpower Needed
|
1 ~2 workers
|
1 ~2 workers
|
1 ~2 workers
|
|||
|
Material
|
Stainless steel
|
Stainless steel
|
Stainless steel
|
|||
1. Improve the palatability of pet food;
2. Change or improve the nutritional value of pet food;
3. Improve pet food digestion and absorption rate;
4. Change the shape and structure of pet food, making it easy for pets to eat;
5. Change the content of different nutritional indicators of pet food, and can reduce moisture of pet food to extend pet food life-time;
6. Change the bulk density of food, extrusion granulation, briquette increase the bulk density of food;
7. kill all kinds of mold, salmonella and other harmful substances to improve the safety of pet food;
8.
Wide range of uses: food for cats, dogs, foxes, mink, monkey, pigs, sheep, rabbits, fish, shrimps, poultry, livestock, birds, etc.
Device Name: Mixer
Model:
DL-BFJ
Size:
0.7×0.5×1.1m
Brand
: Delon
Equipment Introduction:
Mixed powder is mixed raw materials, auxiliary materials, machines and water, moderate speed.
Brand: Delon
Equipment Introduction:
Machine consists of feeding system, extruding system, peeling systems, heating system, transmission system, control system. Advanced screw extrusion technology, the use of high temperature and pressure curing and extrusion molding the material, once completed. Host with frequency control, to ensure the stability of the production process. Product color, species diversity, looks beautiful, natural and realistic, delicate texture, materials widely used.
The remarks:
Brand:
Delon
Introduction:
Used to adjust the taste of the food.
|
Packaging
|
|
|
|
Size
|
6000 (L) * 2300(W) * 2300 (D)
|
|
|
Weight
|
3.2 T
|
|
|
Packaging Details
|
High quality dry dog cat pet food machine is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
a). Free consultation service
b). Free project planning and design services;
c). Free sample testing support.
a). Field installation, commissioning and training;
b). Free new production techniques and formulas;
c). Provide 1 year complete warrantee and life-time maintance service.
Jinan Delon Machinery & Equipment Co., Ltd. is a high and new technology enterprise integrating technology, manufacture and trade. We have devoted ourselves to developing, manufacturing and trading double/single screw extruders, snack production lines, breakfast cereal/corn flake production lines, soya meat production lines, pasta/macaroni production lines, pet food production lines, etc. for more than 10 years.
Q:Are you manufacturer?
A: Yes, we are
manufacturer,
welcome to visit our factory and check the machines.
Q: Can you design new mold for us if we have good idea?
A: Yes,we can design new mold for you according to your original market needs.
Q:Can you help us to design the whole line if we provide the layout of our factory?
A:Yes,we can provide you machine layout at your factory after get your factory details.
Q: What information should I provide, if I want a quotation?
A:┅
The kind of machine you choose, or offer me the kinds of food you will produce.
--- Your production capacity requirement.
---Provide us your production details, then we give professional suggestion to you.
Q: Why choose us?
A: --- Professional technology, we have been engaged in manufacturing food processing machine for many years, accumul ating rich experience and enjoying high reputation.
┅Fast delivery and good service.
┅All the machines are strictly inspected before making shipment.
---Alibaba assessed supplier.
---Provide basic formula.
