Quick Details
-
Voltage:
-
380V
-
Power:
-
18KW
-
Weight:
-
400 KG
-
Dimension(L*W*H):
-
1000*950*1050MM
-
Name:
-
Yoghurt Making Machine 200 Liters/Small Yogurt Processing Line
-
Application:
-
Dairy Procesing
-
Final product:
-
Flavoured Milk Yogurt
-
Raw material:
-
Fresh Liquid Milk
-
Function:
-
Pasteurizing +Fermentation+cooling
-
Keywords:
-
Milk Pasteurazation Machine
-
Usage:
-
Dairy Products Equipment
-
Material:
-
SUS304/SUS316
-
Capacity:
-
100-500 Liter
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Camels
-
Voltage:
-
380V
-
Power:
-
18KW
-
Weight:
-
400 KG
-
Dimension(L*W*H):
-
1000*950*1050MM
-
Name:
-
Yoghurt Making Machine 200 Liters/Small Yogurt Processing Line
-
Application:
-
Dairy Procesing
-
Final product:
-
Flavoured Milk Yogurt
-
Raw material:
-
Fresh Liquid Milk
-
Function:
-
Pasteurizing +Fermentation+cooling
-
Keywords:
-
Milk Pasteurazation Machine
-
Usage:
-
Dairy Products Equipment
-
Material:
-
SUS304/SUS316
-
Capacity:
-
100-500 Liter
-
Advantage:
-
Easy Operation High Efficiency
Yoghurt Making Machine 200 Liters/Small Yogurt Processing Line/200L Yogurt Line
Milk pasteurizer is used to sterilize fresh milk equipment. Milk, goat milk, donkey milk, camel milk and other dairy products can be sterilized. Low-temperature pasteurization can kill harmful bacteria, retain beneficial bacteria, and sterilize milk nutrition High value, in line with pasteurized milk regulations.
|
Model
|
CMPS-100L
|
CMPS-200L
|
CMPS-300L
|
CMPS-500L
|
|
Volume
|
100L
|
200L
|
300L
|
500L
|
|
Size
|
900*750*1350mm
|
1020*870*1530mm
|
1140*1140*1700mm
|
1500*1150*1900mm
|
|
Diameter
|
625mm
|
850mm
|
1000mm
|
1000mm
|
|
Power
|
6KW
|
11KW
|
20KW
|
24kw
|
|
Voltage
|
380V/220V
|
380V
|
380V
|
380V
|
|
Stirring Speed
|
30-36r/min
|
30-36r/min
|
30-36r/min
|
30-36r/min
|
|
Pasteurizer time
|
10-30minutes
(adjustable) |
10-30minutes
(adjustable) |
10-30minutes
(adjustable) |
10-30minutes
(adjustable) |
|
Pasteurizer temperature
|
30-99degree
(adjustable) |
30-99degree
(adjustable) |
30-99degree
(adjustable) |
30-99degree
(adjustable) |
|
Material
|
SS304
|
SS304
|
SS304
|
SS304
|

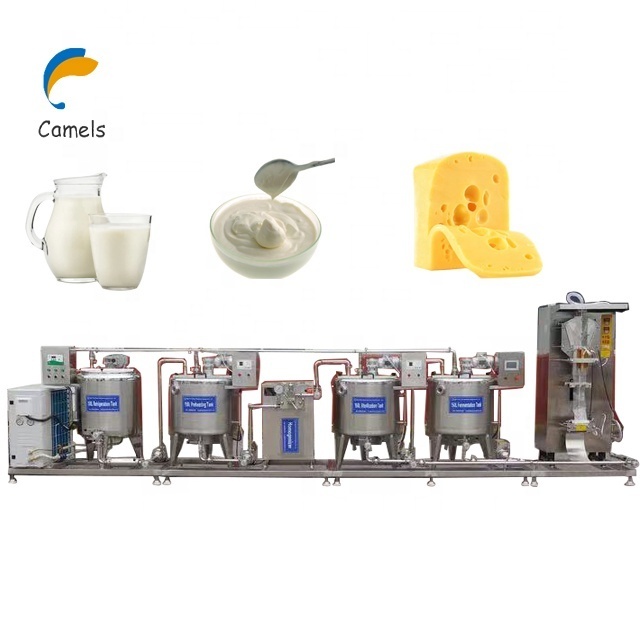

Yogurt/Cheese/Pasteurized Milk Processing Flows::Milk Cold Storage Tank--Preheating---Homogenizer---Pasteurizer---Fermenter---Cheese Machine---Hydraulic Press Machine---Filling
Cold Storage Tank:
Material:SUS304
Voltage:380v/50Hz
Power:2w
Cooling capacity:5000Kcal/h
Sheet thickness:inner 2 in 1 outer 1.2mm
Installation size:1550*800*1530mm
Unit manufacturer:American Copeland
Refrigeration medium:R22
Insulation performance:≤1℃/3H
Compressor power:2P
Motor power/quantity:0.75kw/1
Insulatio material/thickness: polyurethane foam/50mm
Material inlet and outlet diameter:Φ32mm/φ38mm
.
Preheating Tank:
Material: SUS304
Voltage: 380v/50Hz/3Phase, 9KW
Heavy plate thickness: Inner 2 in 2 outer 1.2
Installation size: 1020 * 870 * 1530
Mixing motor: 0.55kw
Stirring speed: 36r / min
Working pressure: 0.09 Mpa
Material inlet and outlet diameter: Φ32mm / φ38mm
.
Homogenizer:
Output: 200L / H
Maximum pressure: 25Mpa
Motor power: 4kw
Dimensions: 990 * 600 * 850mm
Machine weight: 600kg
.
Pasteurizer Tank:
Material: SUS304
Power: 380v/50Hz/3Phase/9kw
Heavy plate thickness: Inner 2 in 2 outer 1.2
Installation size: 1020 * 870 * 1530
Mixing motor: 0.55kw
Stirring speed: 36r / min
Working pressure: 0.09 Mpa
Material inlet and outlet diameter: Φ32mm / φ38mm
.
Fermenter Tank:
Material: SUS304
Power: 380v 50Hz
Sheet thickness: 3mm
Installation size: 1020 * 870 * 1530mm
Material inlet and outlet diameter: Φ32mm / φ38mm
.
Cheese Machine:
Material: SUS304
Voltage: 380V
Heating power: 24kw
Mixing power: 1.5kw
Mixing speed: variable frequency adjustable
Speed range: 0-36R/min
Inner Diameter: 1000mm
Equipment size:1600*1300*2100mm
.
Hydraulic Press Machine:
Pneumatic double groove
Milk/Cheese/Yogurt/Ice Cream Processing Machine Delivery Picture:
