HOWO 3.5T Fence Cargo Truck 116HP Small Fence Vehicle

HOWO 3.5T Fence Cargo Truck 116HP Small Fence Vehicle

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10999

≥500 Pieces

US $9999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Horsepower:: < 150hp

Cargo Tank Type:: Chassis

Gross Vehicle Weight:: 4984

Drive Wheel:: 4X2

After-sales Service Provided:: Video technical support, Online support

Brand Name:: SINOTRUK

Place of Origin:: Shandong, China

Size:: 7000*2500*3000

Cargo Tank Dimension:: 4850*2300*1200

Drive type:: Left/Right Hand Driving

Chassis brand:: SIONTRUK HOWO

Engine:: YC4102

Wheelbase:: 3360/3800/4200/4700/5200mm

Transmission:: Manual Transmission

Cabin:: 1760/1880/2080 Cabin, Single sleeper with AC

Displacement:: 3.76

Front axle:: 2.7Ton

Rear axle:: 7.2Ton

Quick Details

Condition:: New

Emission Standard:: Euro 3

Market Segement:: Logistics transportation

Horsepower:: < 150hp

Cargo Tank Type:: Chassis

Gross Vehicle Weight:: 4984

Drive Wheel:: 4X2

After-sales Service Provided:: Video technical support, Online support

Brand Name:: SINOTRUK

Place of Origin:: Shandong, China

Size:: 7000*2500*3000

Cargo Tank Dimension:: 4850*2300*1200

Drive type:: Left/Right Hand Driving

Chassis brand:: SIONTRUK HOWO

Engine:: YC4102

Wheelbase:: 3360/3800/4200/4700/5200mm

Transmission:: Manual Transmission

Cabin:: 1760/1880/2080 Cabin, Single sleeper with AC

Displacement:: 3.76

Front axle:: 2.7Ton

Rear axle:: 7.2Ton

Product Description

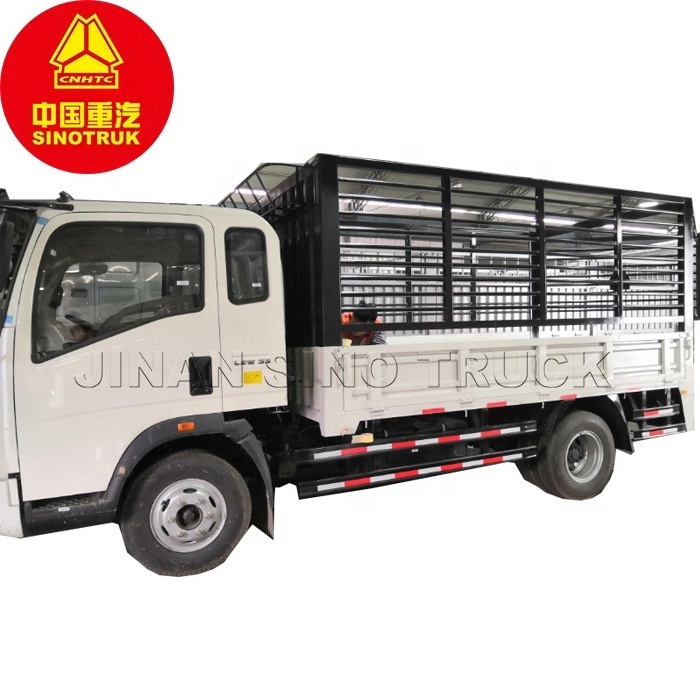

3-5Ton Light Fence Cargo Truck

Engine Horsepower: 116HP/140HP/160HP China Brand Engine & 141HP/154HP/168HP Cummins Engine

Transmission: 5F or 6 F & 1 R

Tire: 7.00R16/7.50R16/8.25R20/ 9.00R20 steel wire tire, 6+1Spare

Cabin: 1760mm/1880mm/2080 Cabin, Single sleeper with air conditioner

Wheelbase: 3360mm/3800mm/4200mm 4500mm/ 4700mm/5200

This Light Truck Chassis can be make for Water Tank Truck, Fuel Tank Truck, General Cargo Truck, Wing Truck, High Platform Truck, Tow Wrecker Truck, Suction Sewage Truck, Compressed Garbage Truck, Truck Mounted Crane etc.

Product Paramenters

Truck Brand						SINOTRUK—HOWO Light Truck
Driving wheel						4x2
Driving type						Right Hand Driving
Chassis Model						ZZ1107D3815C1R
Dimension(Lx W x H)（unloaded）（mm）						700025003000
Cargo Dimension(Inner)(mm)						485023001200（Side wall+fence )
Thickness(mm)						Bottom:2mm, side:1mm
Cargo body shape						Same like picture
Side door						Same as picture
Approaching angle/Departure angle（°）						27/12
Overhang(front/rear) (mm)						1240/1955
Wheel base (mm)					3800
Leaf spring					Standard
Max speed（km/h）					90
Loading weight					3-5Ton
Engine	Model			4102 Engine, 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling
		Fuel type			Diesel
		Horse Power, max（kw/rpm）			116hp
		Emission			EURO II
Fuel tanker capacity (L)					Standard
Transmission			Model	WLY646, 6 forwards and 1 reverse
Brake system			Service brake	Dual circuit compressed air brake
				Parking brake	spring energy, compressed air operating on rear wheels
Front axle			2.7T
Rear axle			7.2T
Color			Optional
Tyre			7.50R16 Steel , 6+1 Spare
Cab			2080 Standard cabin with Air Conditioner
