Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
KDC-A10-PM20B
-

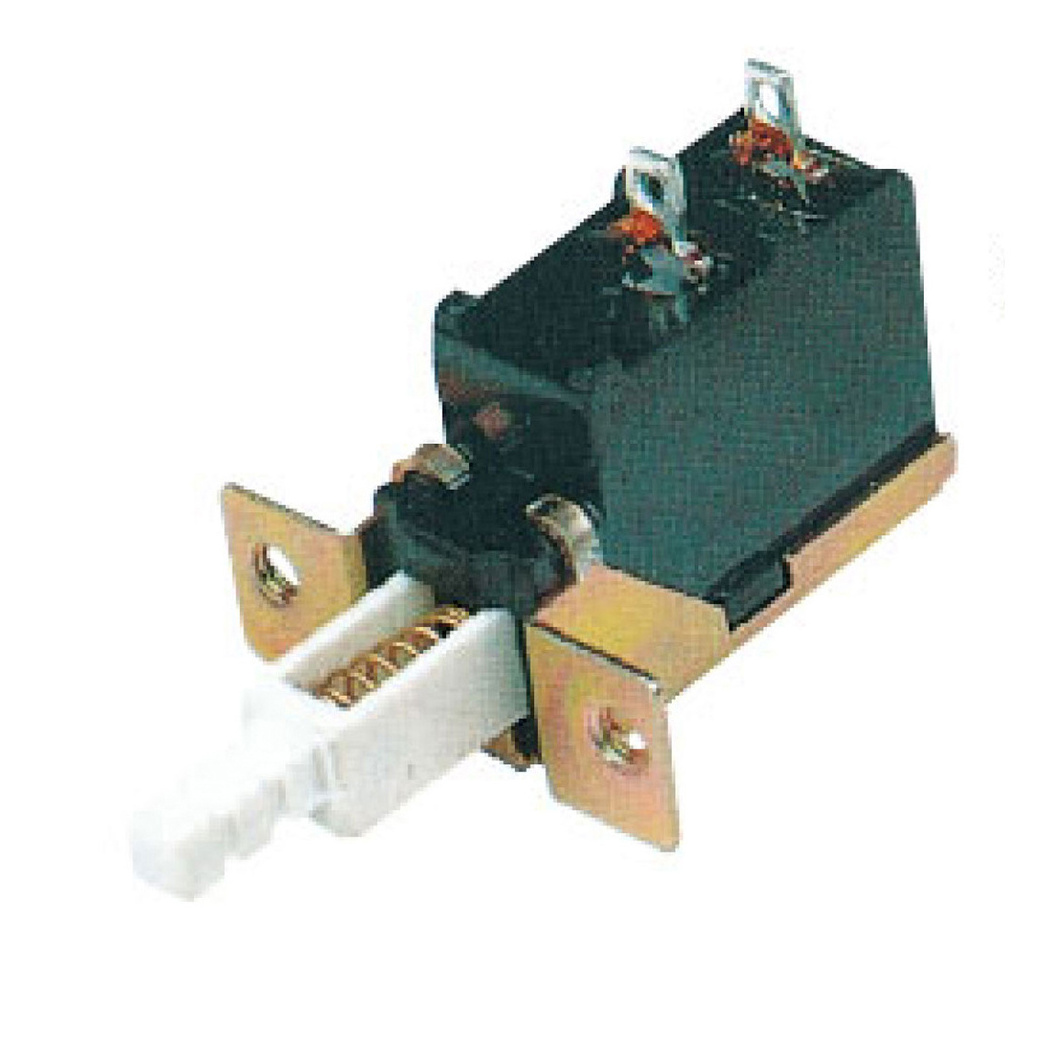

Product name:
-
Direct key switch
-
Type:
-
Latching/momentary
-
Way/pins:
-
2/3 way 2/4/6 pin
-
Contact Resistance:
-
≤0.03mΩ
-
Max Current:
-
10A
-
Max Voltage:
-
250V
-
Terminals & Mid pins:
-
Copper with silver plated
-
Delivery date:
-
3-15 days
-
Operation Temp:
-
-20℃ ~ +70℃
-
Product type:
-
straight key switch
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
10A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
KDC-A10-PM20B
-
Product name:
-
Direct key switch
-
Type:
-
Latching/momentary
-
Way/pins:
-
2/3 way 2/4/6 pin
-
Contact Resistance:
-
≤0.03mΩ
-
Max Current:
-
10A
-
Max Voltage:
-
250V
-
Terminals & Mid pins:
-
Copper with silver plated
-
Delivery date:
-
3-15 days
-
Operation Temp:
-
-20℃ ~ +70℃
-
Product type:
-
straight key switch
Products Description
Scope of application:
Button switches are used in various small appliances, drinking fountains, set-top boxes, treadmills, speakers, battery cars, motorcycles, sockets, massage machines, electric fans, various toys, etc., mainly for household appliances and the like more
Precautions
There is a big difference in the switch capability of the button in the AC and DC circuits, and the rated value needs to be confirmed. In the case of DC, the control capacity is very low. This is mainly because DC does not have a zero point (current zero crossing point) like AC, so once an arc is generated, it is difficult to eliminate, and the arc time is very long. Moreover, the direction of the current does not change, so there will be a phenomenon of contact migration, and the contact will not be disconnected due to unevenness, which may cause malfunction.
Product Paramenters
|
Model Specification
|
|
|
|
Product Name
|
straight key switch
|
|
|
Operation Type
|
Latching/momentary
|
|
|
Max Voltage
|
250V
|
|
|
Terminals
|
Plastic/Copper with silver plated/stainless steel
|
|
|
Insulation Resistance
|
≥100mΩ
|
|
|
Electrical Life
|
100,00 Cycles Min
|
|
|
Operation Temp
|
-20℃ ~ +70℃
|
|
