Quick Details
-
Rated Voltage:
-
15 KV
-
Tensile Strength:
-
12 KN
-
Color Glaze:
-
Brown
-
Standard:
-
BS
-
Feature:
-
low voltage insulators
-
Usage:
-
Insulation Protection
-
Sample:
-
Sample Avaliable
-
Size:
-
Customers Request
-
Weight:
-
0.5 kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIKAI
-
Model Number:
-
ED-2B
-
Rated Voltage:
-
15 KV
-
Tensile Strength:
-
12 KN
-
Color Glaze:
-
Brown
-
Standard:
-
BS
-
Feature:
-
low voltage insulators
-
Usage:
-
Insulation Protection
-
Sample:
-
Sample Avaliable
-
Size:
-
Customers Request
-
Weight:
-
0.5 kg

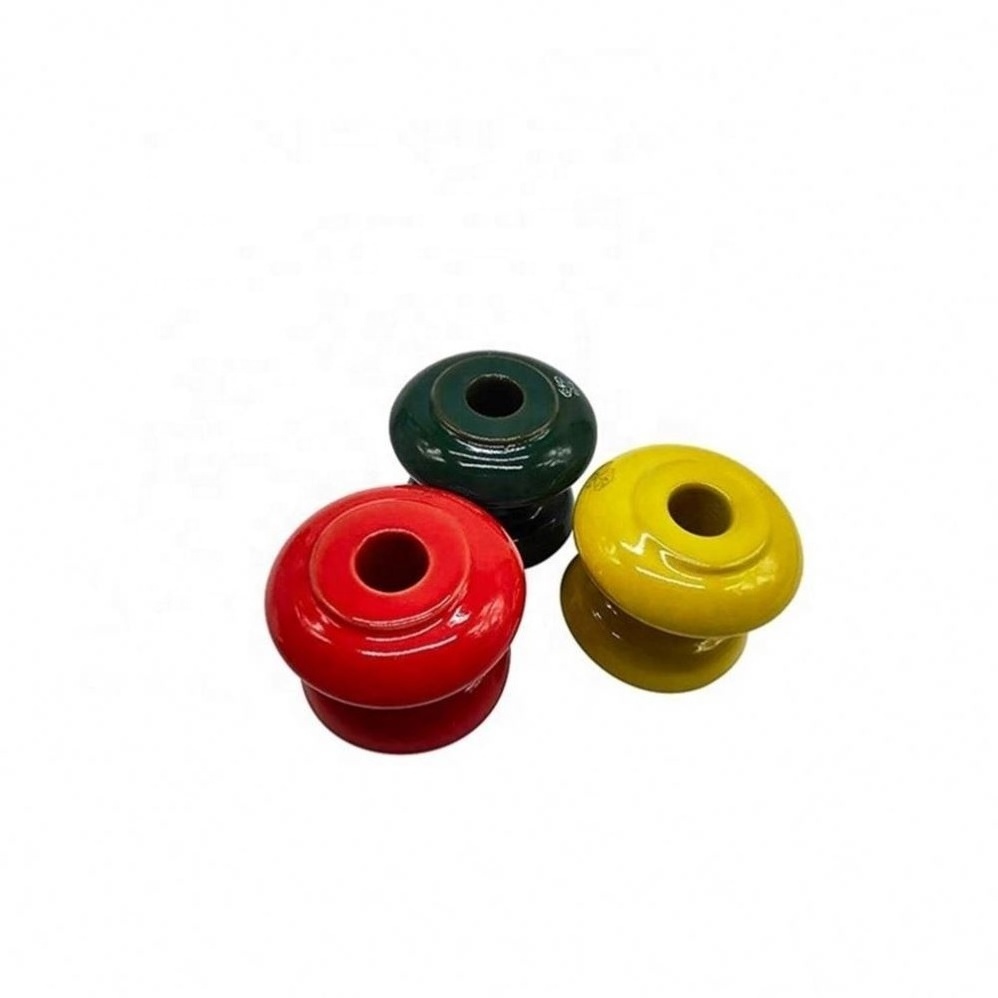

overhead line porcelain ED electrical shackle insulator price
MAIN DIMENSIONS AND STANDARD PARTICULARS:
| Class BS | Main Dimensions(mm) | Mechanical Failing Load(kn) | Minimum Flashover Voltage | Weight(kg) | ||||||||
| Power-frequency | ||||||||||||
| H | h | D | d | d1 | d2 | R | Dry(kv) | Wet(kv) | ||||
| Upright | Level | |||||||||||
| ED-2(C) | 80 | - | 80 | 50 | 22 | - | 6 | 13 | 25 | 15 | 0.50 | |
| ED-2(B) | 76 | - | 89 | 48 | 21 | - | 10 | 12 | 25 | 12 | 0.50 | |
| ED-2(B)1 | 76 | - | 89 | 48 | 17.5 | - | 10 | 12 | 25 | 12 | 0.50 | |
| 1617 | 65 | - | 76 | 46 | 17.6 | - | 9 | 9 | 20 | 9 | 0.40 | |
| 1618-1 | 75 | - | 89 | 55 | 17 | - | 12.5 | 10 | 20 | 9 | - | |
| 1618-2 | 75 | - | 89 | 55 | 17 | - | 12.5 | 13 | 25 | 12 | - | |
| 53-1 | 54 | 27 | 57 | 45 | 18 | 22 | 11 | 907 | 20 | 8 | 10 | 0.22 |
| 53-2 | 76 | 38 | 79 | 45 | 18 | 24 | 18 | 1360 | 25 | 12 | 15 | 0.55 |
| 53-3 | 81 | 40.5 | 76 | 45 | 18 | 24 | 11 | 1814 | 25 | 12 | 15 | 0.60 |
| 53-4 | 76 | 38 | 105 | 73 | 18 | 24 | 16 | 2041 | 25 | 12 | 15 | 1.15 |
| 105 | 52.5 | 102 | 73 | 18 | 24 | 11 | 2722 | 35 | 18 | 25 | 25 | 1.20 |
1. What standards do you have?
Our products meet the stand
ards, such as
ANSI
,
BS
, AMS, DIN,
IEO
etc.
The third party testing is all available for us.
2. How can you control your quality?
For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
3. Does your company accept customization?
We accept OEM service.
4. What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
5. What's the payment term that u can accept?
T/T or L/C
6. Are u the factory or trading company?
We are factory who was founded on 2002's with 61.58 million(Chinese Yuan)registered capital.
7. Can we visit your company?
Yes, for sure, you are welcome to visit our company.
8. Do you supply samples?
Yes, we would like to send the samples for your to check the quality.
Please feel free to contact us if you have any questions if you are interested.
