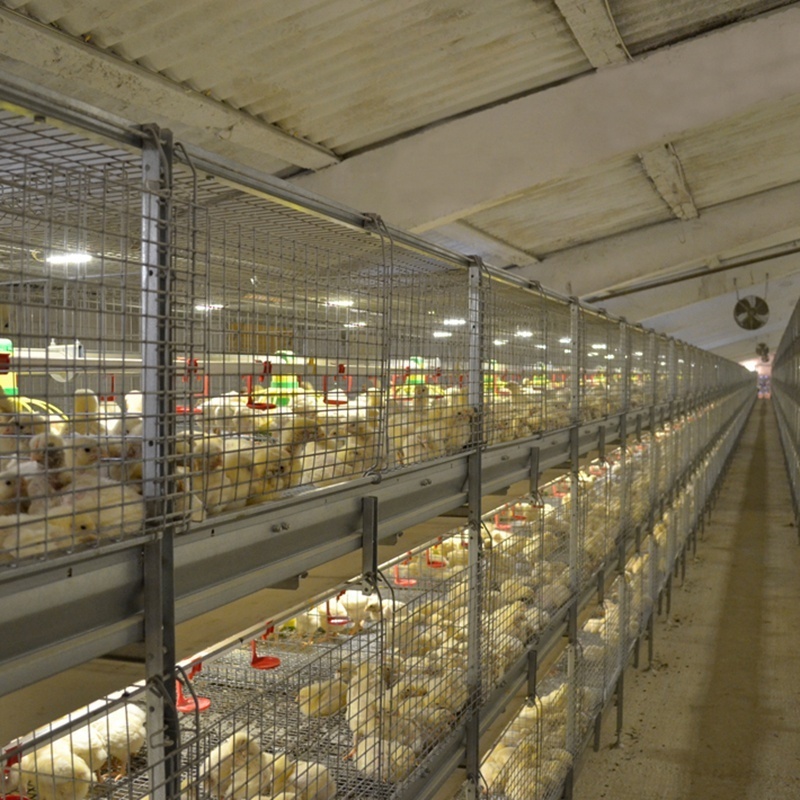

Hot-Dipping H Type Chicken Broiler Cages For Growing Broiler

H type broiler cage

nest/side

total nests

size of nest

Qty/nest

Birds Qty/Set

H-Type 3-tier 1 door
3.0*1.8*0.45m(L*W*H)

1

6

3.0*0.9*0.45m(L*W*H)

55

330 heads

H-Type 4-tier 1 door
3.0*1.8*0.45m(L*W*H)

1

8

3.0*0.9*0.45m(L*W*H)

55

440 heads

H-Type 5-tier 1 door
3.0*1.8*0.45m(L*W*H)

1

10

3.0*0.9*0.45m(L*W*H)

55

550 heads

Cage System

Our construction is the product of research results in combination with practical experience of bird behavior in broiler cages. Can increase meat production, improve animal health and welfare, enhance meat quality and to reduce the operating costs of broiler production.

Feeding System

Feeding system runs automatically from the silos to feeding pans in cages. This automation is materialized with feed level measurement by the means of some sensors on the pans which is located on line-end. When the feed level reduces in the pans, pans fills automatically by the feed bunkers.

Specially designed broiler feed pans are used in feeding system. The pans are placed on spiral feeding line in the middle of cage and 2 pieces pans for each cage. Feed lines are adjustable as fit for broilers' sizes, by using winch system at the line-beginning.

Drinking System

Drinking system works by 12 stainless steel nipples in each cage that placed onto nipple lines. Height of the lines can be adjusted by a single hand crane which placed at the beginning of row. Nipples are 360° turnable nipples that never drops and leaks.

Flooring System

The design of the flooring system supports the body of broilers and provides a clean living surface. The perforated structure of the slats allows manure to fall through easily. The clean and sanitary flooring system prevents enteric diseases such as necrotic enteritis and coccidiosis. Also breast blisters and food pad dermatitis are remedied because of the clean living surface.

Loading quantity

Model

20GP

40GP

40HD

HT-L-A34

130

280

300

HT-L-A34(L)

115

250

270

HT-L-A35

130

280

300

HT-L-A35(L)

100

210

225

HT-L-A44

100

210

225

HT-L-A44(L)

90

190

200

HT-L-A45

100

210

225

HT-L-A45(L)

80

170

185
