Quick Details
-
Dimension(L*W*H):
-
2500*2000*2400
-
Weight:
-
2000 KG
-
Product name:
-
Gold Recovery Centrifuge Mineral Separator, Gold Concentrator Machine
-
Application:
-
Gold
-
Keywords:
-
Centrifugal Gold Concentrtor
-
Name:
-
China Gold Mining Equipment
-
Usage:
-
Mining Concentration
-
Material:
-
Steel
-
Installation:
-
Engineer Guide
-
Capacity:
-
50-300 Tph
-
Certification:
-
ISO, CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Baichy
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2500*2000*2400
-
Weight:
-
2000 KG
-
Product name:
-
Gold Recovery Centrifuge Mineral Separator, Gold Concentrator Machine
-
Application:
-
Gold
-
Keywords:
-
Centrifugal Gold Concentrtor
-
Name:
-
China Gold Mining Equipment
-
Usage:
-
Mining Concentration
-
Material:
-
Steel
-
Installation:
-
Engineer Guide
-
Capacity:
-
50-300 Tph
-
Certification:
-
ISO, CE

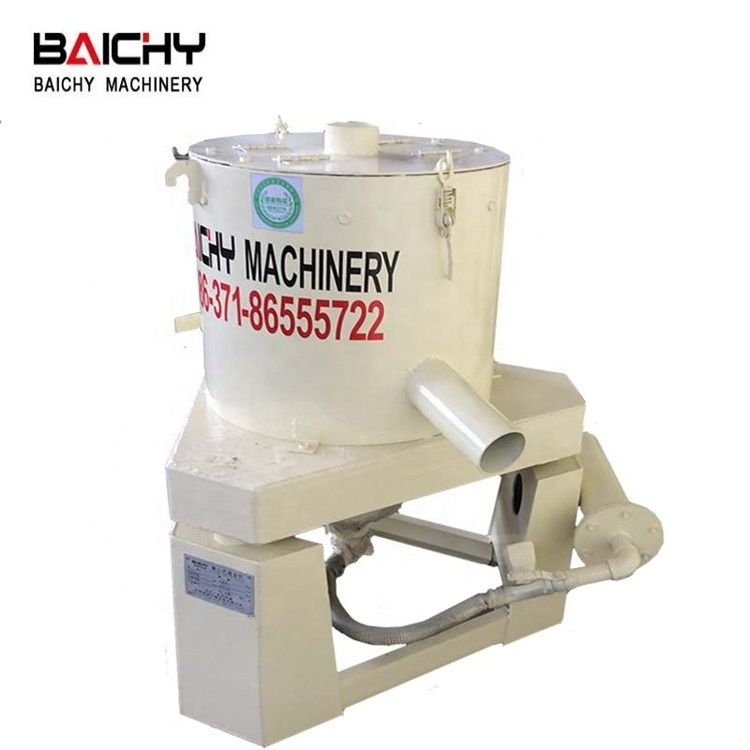

Fine Gold Ore Centrifugal Concentrator Machine Price, High Gold Recovery Centrifuge Mineral Separator, Gold Concentrator Machine
Brief introduction
Gold centrifugal concentrator is an important gravity beneficiation equipment developed by our factory. It is proved by experienced practices that this equipment is high efficient for recovery of placer gold, rock gold, lode gold and monomeric gold in multi-metal ore. It had earned high reputation for replacing mercury plate or any toxic chemical, removing the chemical harm to human body and conductive to environmental protecting.
Application shows that the recovery rate can be as high as90% in tin ore, Pb ore, antimony ore, sliver ore, gold ore,etc.especially for the case less than 2.5mm heavy ores, can reach to 92%.
Note: The standard slurry density in feeding is 35%, The water pressure level in separation process is 0.03-0.06Mpa. This figure is only for your reference, for example: named the water pressure as A=0.02mpa, B=0.03mpa, C=0.04mpa, and then testing these three figures to check the gold concentration grade, delete the lowest grade matched figure, and then text again to choose the most suitable water pressure figure.
Working principle
(1).Central transmission shaft is driven by motor through belt, and then make the inner concentrate cone rotate in high speed.
(2).Fluidization water is introduced into the concentrate cone through central transmission shaft, and then spraying water to ring groove from inner cone holes, called backwash water. The water pressure level in separation process: 0.03-0.06Mpa.
(3).ineral materials enter into the inner cone groove by feeding pipe, under the high rotating configuration force, heavy ores will be deposited on the groove but the light ores will go upside along the cone liner, and finally going into tailing discharging pipe from cone upper surroundings.During the separation process, make sure the concentration discharging pipe is closed.
(4).After a cycle process, close down the machine and open the concentration pipe to collect the gold concentration.
|
Type |
BCJ20 |
BCJ30 |
BCJ60 |
BCJ80 |
BCJ100 |
|
Capacity (T/h) |
0.2-1 |
2-8 |
10-40 |
35-70 |
75-120 |
|
Particle size (mm) |
0-3 |
0-4 |
0-6 |
0-6 |
0-6 |
|
Feeding Concentration(%) |
0-50% |
0-50% |
0-50% |
0-50% |
0-50% |
|
Backwash water(T/h) |
1.5-2 |
4-6 |
10-15 |
17-25 |
40-60 |
|
Output (KG/TIMES) |
2-3 |
10-20 |
30-40 |
60-70 |
70-80 |
|
Power (kw) |
0.75 |
1.5 |
4 |
15 |
18.5 |
|
Revolution (r) |
800 |
600 |
460 |
400 |
360 |
|
Pressure Water (Mpa) |
0.04 |
0.12 |
0.4 |
0.4 |
0.6 |
|
Dimension (mm) |
930*700*900 |
1180*1140*1250 |
1970*1670*1750 |
2300*1800*2200 |
2500*2000*2400 |
|
Weight (kg) |
205 |
400 |
1300 |
1500 |
2000 |
6 Types of Gold Ore
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.Flow chart of gold ore processing
Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation.
|
Jaw Crusher
|
Impact Crusher | Cone Crusher |
|
Grinding Mill
|
Baill Mill | Mobile Crusher Plant |
20 national service mileage:
Service mileage for local customers to provide equipment installation, commissioning and after-sales service
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
