Quick Details
-
Model Number:
-
TZ-7311
-
Protection Level:
-
IP54
-
Operating Temperature:
-
-10 -- +80℃
-
Type:
-
TZ-7
-
ELectric Life:
-
500,000 Times
-
Mechanical life:
-
10,000,000 Times
-
OF MAX:
-
600g
-
RF MIN:
-
100g
-
PT MAX:
-
2.0mm
-
OT MIN:
-
6.0mm
-
MD MAX:
-
0.8mm
-
OP(mm):
-
33.3±1.2
-
Weight(kg):
-
0.090
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hord
-
Model Number:
-
TZ-7311
-
Protection Level:
-
IP54
-
Operating Temperature:
-
-10 -- +80℃
-
Type:
-
TZ-7
-
ELectric Life:
-
500,000 Times
-
Mechanical life:
-
10,000,000 Times
-
OF MAX:
-
600g
-
RF MIN:
-
100g
-
PT MAX:
-
2.0mm
-
OT MIN:
-
6.0mm
-
MD MAX:
-
0.8mm
-
OP(mm):
-
33.3±1.2
-
Weight(kg):
-
0.090

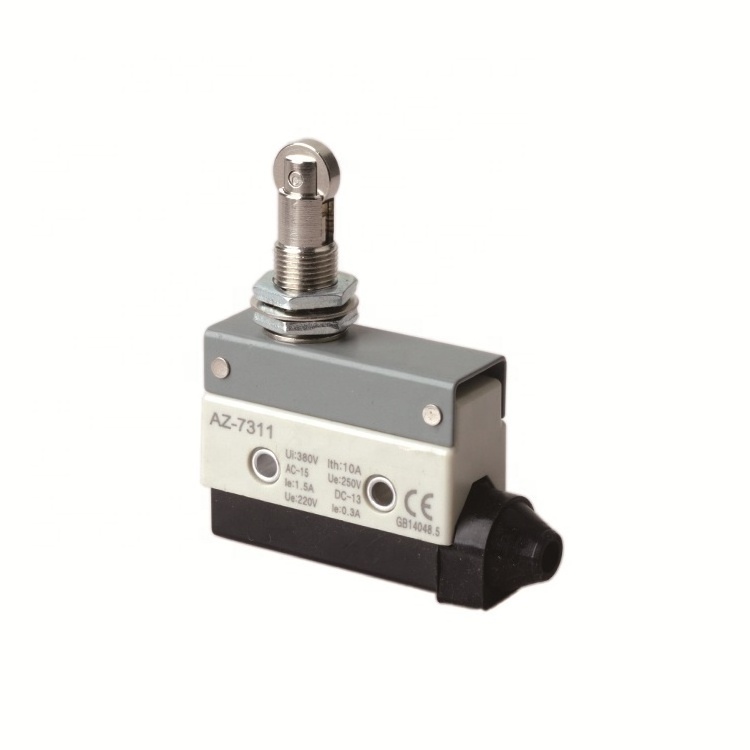

Products Description
Various of actuators, the operation position is adjustable (such as TZ-7121)
Outer shell covered with intensive plastic, water-proof and oil-proof.
The mechanical strength is better than TM type of micro switch, bear hitting.
|
Models(TZ)
|
7166
|
7310
|
7311
|
7312
|
|
OF MAX
|
120g
|
600g
|
600g
|
600g
|
|
RF MIN
|
|
100g
|
100g
|
100g
|
|
PT MAX
|
250mm
|
2.0mm
|
2.0mm
|
2.0mm
|
|
OT MIN
|
11mm
|
6.0mm
|
6.0mm
|
6.0mm
|
|
MD MAX
|
|
0.8mm
|
0.8mm
|
0.8mm
|
|
OP(mm)
|
|
21.8±1.2
|
33.3±1.2
|
33.3±1.2
|
|
FP
|
|
|
|
|
|
Weight(kg)
|
0.083
|
0.085
|
0.090
|
0.090
|
Company Introduction
YUEQING HORD ELECTRIC CO..LTD is a company specialized in producing travel switch,micro switch,toggle switch and foot switch which are widely used in machine tool,injection molding machine. automobile factory, mechanical production and circuit control. Through constant innovation and improvement, the company has passed the National CCC Certification and EU CE Certification. The company’s products are popular all over the country and exported to Europe the Middle East and South America.
With the goal of striving for survival by quality. the company will further improve its product quality.
