Quick Details
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JOYGOAL
-
Dimension(L*W*H):
-
3000*1500*1700mm
-
Weight:
-
320kg
-
Machinery Capacity:
-
10-300 bottles per min
-
Name:
-
labeling machine
-
Model:
-
TBY-200
-
Capacity:
-
10-300 bottles per min
-
Labeling Flat Bottle Thickness:
-
10-86mm
-
Labeling Round bottle Diameter:
-
18-130mm
-
label height:
-
10-190mm (adjustable)
-
Precision:
-
1mm
-
label roll size:
-
Inner diameter: 76 mm ,Outer diameter Max: 370mm
-
Material:
-
SUS304
-
Dimension:
-
L3000 X W1500 X H1750 mm
-
Certification:
-
CE Certificate
Quick Details
-
Application:
-
APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, labeling machine
-
Packaging Type:
-
Bottles
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JOYGOAL
-
Dimension(L*W*H):
-
3000*1500*1700mm
-
Weight:
-
320kg
-
Machinery Capacity:
-
10-300 bottles per min
-
Name:
-
labeling machine
-
Model:
-
TBY-200
-
Capacity:
-
10-300 bottles per min
-
Labeling Flat Bottle Thickness:
-
10-86mm
-
Labeling Round bottle Diameter:
-
18-130mm
-
label height:
-
10-190mm (adjustable)
-
Precision:
-
1mm
-
label roll size:
-
Inner diameter: 76 mm ,Outer diameter Max: 370mm
-
Material:
-
SUS304
-
Dimension:
-
L3000 X W1500 X H1750 mm
-
Certification:
-
CE Certificate
We have a 3D REALITY SHOWROOM , please click the link below to check it
If you like our products, please follow us to get more information.

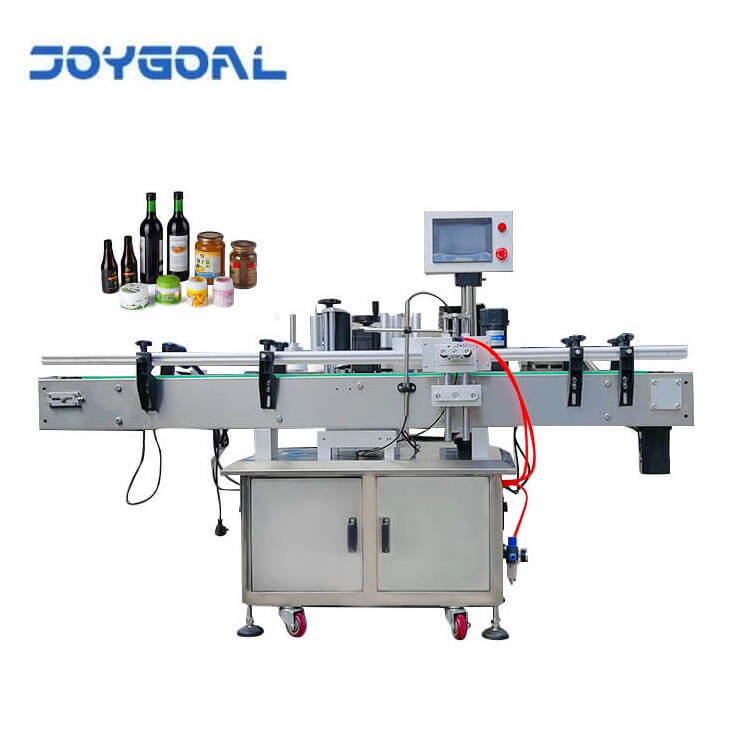

Automatic double side labeling machine for round or flat bottles boxes high quality
Automatic double-sided labeling machine
The machine can label the single-side of a round bottle,
dual-side and tri-side of the square bottle; single-side and dual-side of
a flat bottle. The machine is suitable in such industries as food, medicine , wine, oil and cosmetics etc.
| Name | labeling machine |
| Label height | 10-190mm(adjustable) |
| Label roll size | inner diameterφ76mm,outer diameter max φ370mm |
| Label round bottle diameter | 18-130mm |
| Labeling flat bottle thickness | 10-86mm |
| Precision | ±1mm |
| Capacity | 10-300b/min(adjustable) |
| Voltage | ac 200v 60hz |
| Power | 800w |
| G.W. | 450kg |
| Dimension | l3000*w1500*h1750mm |
