2. Handle
3. Two hand control press buttons
4. Temperature controller
5. Power button
6. Emergency stop button
7. Fuse
8. Air reducing valve(not shown)
9. Heat plate
10. Bottom Platen
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V(220V)
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
MEM
-
Model Number:
-
TQ1-4050
-
Dimensions(L*W*H):
-
770x420x540 mm
-
Weight:
-
67 KG
-
Platen Size:
-
40x50 cm
-
Plate size:
-
36*38cm
-
Other available size:
-
40*50cm
-
110V:
-
1800W
-
220V:
-
2700W
-
Swing away:
-
Yes
-
Product name:
-
T-shirt Heat Press Machine
-
Model:
-
TQ1-4050
-
Keywords:
-
Heat Press Machine
-
Time range:
-
0-999s
-
Temperature Range:
-
0 - 480F (0 - 250C)
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
110V(220V)
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
MEM
-
Model Number:
-
TQ1-4050
-
Dimensions(L*W*H):
-
770x420x540 mm
-
Weight:
-
67 KG
-
Platen Size:
-
40x50 cm
-
Plate size:
-
36*38cm
-
Other available size:
-
40*50cm
-
110V:
-
1800W
-
220V:
-
2700W
-
Swing away:
-
Yes
-
Product name:
-
T-shirt Heat Press Machine
-
Model:
-
TQ1-4050
-
Keywords:
-
Heat Press Machine
-
Time range:
-
0-999s
-
Temperature Range:
-
0 - 480F (0 - 250C)
Technical Paramenters
Short overview MEM TQ1-4050/3638 heat press
Self-pressure balancing system.
Pressure balancing system on heat plate and bottom plate.
Adjustable air pressure by air reducing valve with water separator.
CE certificated and RoHS certificated.
Lifetime factory on-line service.
Pressure balancing system on heat plate and bottom plate.
Adjustable air pressure by air reducing valve with water separator.
CE certificated and RoHS certificated.
Lifetime factory on-line service.

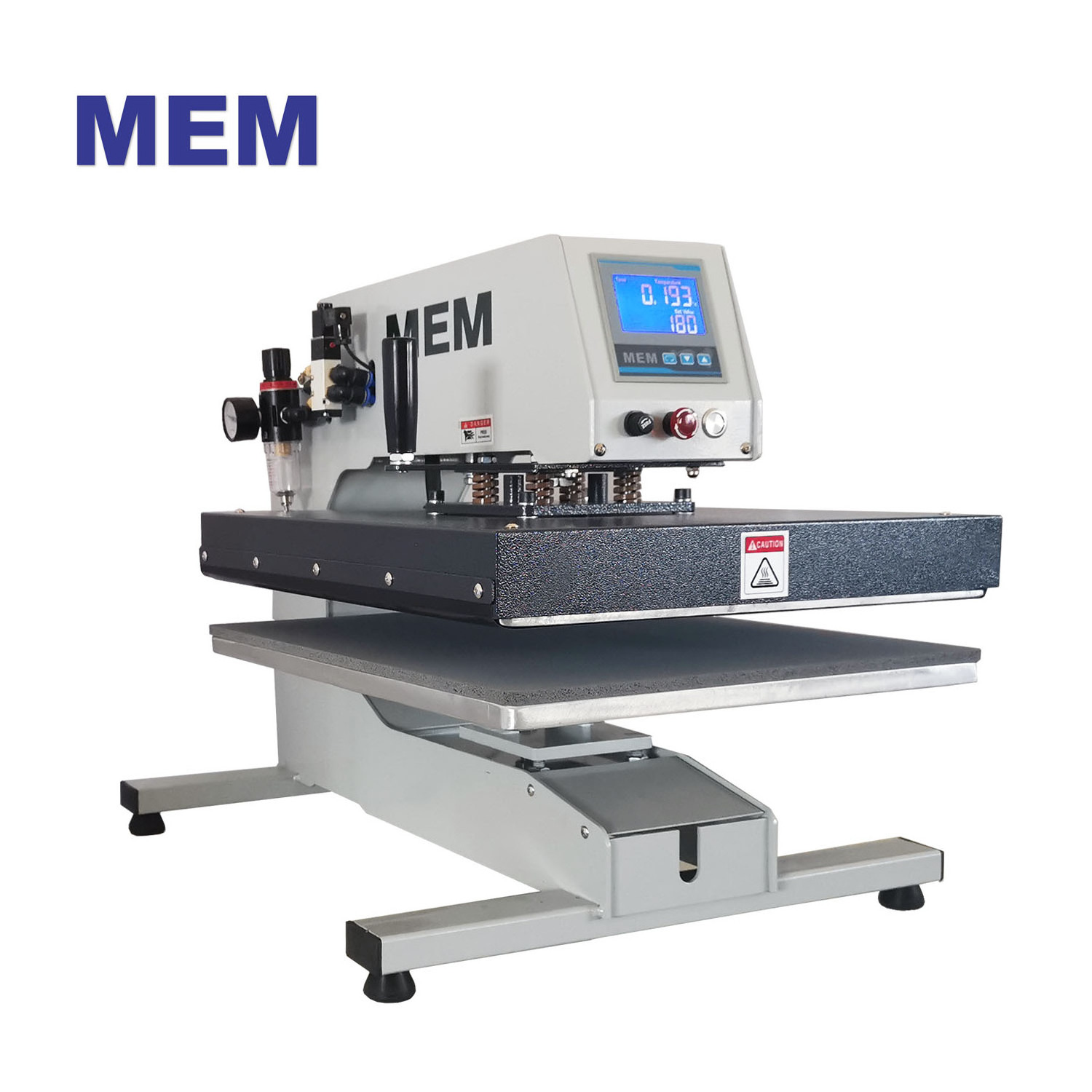

TQ 4050 pneumatic heat press machine
1. Solenoid valve
2. Handle
3. Two hand control press buttons
4. Temperature controller
5. Power button
6. Emergency stop button
7. Fuse
8. Air reducing valve(not shown)
9. Heat plate
10. Bottom Platen
2. Handle
3. Two hand control press buttons
4. Temperature controller
5. Power button
6. Emergency stop button
7. Fuse
8. Air reducing valve(not shown)
9. Heat plate
10. Bottom Platen
|
Model
|
TQ1- 4050/3638
|
|
Voltage and powder
|
220V(2700W) or 110V(1800W)
Check voltage at back side of the head
|
|
Time Range
|
0-999 sec.
|
|
Max. Temp.
|
260 C/ 500 F
|
|
Heat plate size
|
40x50 cm(16"x20")/36*38cm
|
|
Dimensions(L*W*H)
|
770x420x540mm(30"*17"*21")
|
|
Shipping dimensions(L*W*H)
|
840x550x560mm(33"*22"*22")
|
|
Shipping weight
|
66kgs(145lbs)
|
|
Max. press thickness
|
40mm
|
Products Description
MEM TQ1-4050 pneumatic single station heat press
Using the MEM TQ1-4050 heat press, all common heat transfer processes (flock, flex, sublimation, transfer,
Inkjet-flex etc.) can be conducted professionally and with highest productivity.
Inkjet-flex etc.) can be conducted professionally and with highest productivity.
The desired settings can be set easily with the temperature controller. The pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.
With the temperature controller, temperature (°C and °F) and pressing time can be adjusted. The Set Value are showing the setting value, the Temperature digits are showing the actual value. Counter (reset after power off) function that counts the number of transfers that have already been made during the current session could be enabled, contact MEM for counter function enable instruction.
On the side of the solenoid valve there are two silver/golden screws which restricting the air flow speed of the cylinder.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
Maintenance and cleaning
Maintenance work should always be accomplished with the press switched off and cooled down.
The plug must first be disconnected from the power socket.
Consult Technical Support before carrying out any maintenance work.
Clean the press regularly with a soft cloth and mild household cleaner to remove adhesive residues etc.
Air compressor
TQ-4050 requires air compressor with minimum 800w (1 hp) and 30L (8 gallon) hold tank.
Connect 5mm inner diameter (usually 8mm outer diameter) air hose to the machine.
Connect 5mm inner diameter (usually 8mm outer diameter) air hose to the machine.
Charge the compressor to 0.6-0.7 Mpa, up to 0.8 Mpa (120 psi) if possible.
Set the desired air pressure on the air reducing valve of the heat press by pulling up the cap at the top end and then turning it. After the pressure is set, push the cap back down. The set pressure should be lower than on the manometer of the compressor. Commonly used pressures are between 0.4 to 0.6 Mpa (60 to 90 psi)
Set the desired air pressure on the air reducing valve of the heat press by pulling up the cap at the top end and then turning it. After the pressure is set, push the cap back down. The set pressure should be lower than on the manometer of the compressor. Commonly used pressures are between 0.4 to 0.6 Mpa (60 to 90 psi)
Details Images
Packing & Delivery
Standard export wooden case packing to make sure the machine safety during the transportation. Customer can be rest assured.
