Quick Details
-
Dimension(L*W*H):
-
3.4*1.6*2.1M
-
Warranty:
-
12 months
-
Model Number:
-
SQ-11
-
Certification:
-
CE, ISO-9001
-
Power:
-
18KW
-
Weight:
-
2T
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SANQING
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3.4*1.6*2.1M
-
Warranty:
-
12 months
-
Model Number:
-
SQ-11
-
Certification:
-
CE, ISO-9001
-
Power:
-
18KW
-
Weight:
-
2T
Application:
This machine could produce products with cladding layer, liquid view line, it could blow Max.5 liter engine oil pot, alcohol pot, and source pot, bleaching agent bottle, liquid detergent bottle, spray bottle, correction pen bottle and etc. this machine adopts hydraulic system, PLC control, double work stations, and stable quality. It adopts hydraulic system to open and close the mold, strong mould clamping force, euqiped with manipulator for automatic deflashing.
Main Technical Parameters:
|
Model |
SQ-11 |
|
Max product volume ml |
5000 |
|
Screw diameter mm |
75 |
|
Screw heating power kw |
0.336 |
|
Heating power of die head kw |
5 |
|
Motor power of hydraulic kw |
4.5 |
|
Motor power of extruding machine kw |
18.5 |
|
Screw L/D ratio |
25:1 |
|
Max product diameter cm |
18 |
|
Theoretical capacity pcs/h |
120 |
|
Size mm |
1960*1180*1960 |
Samples:

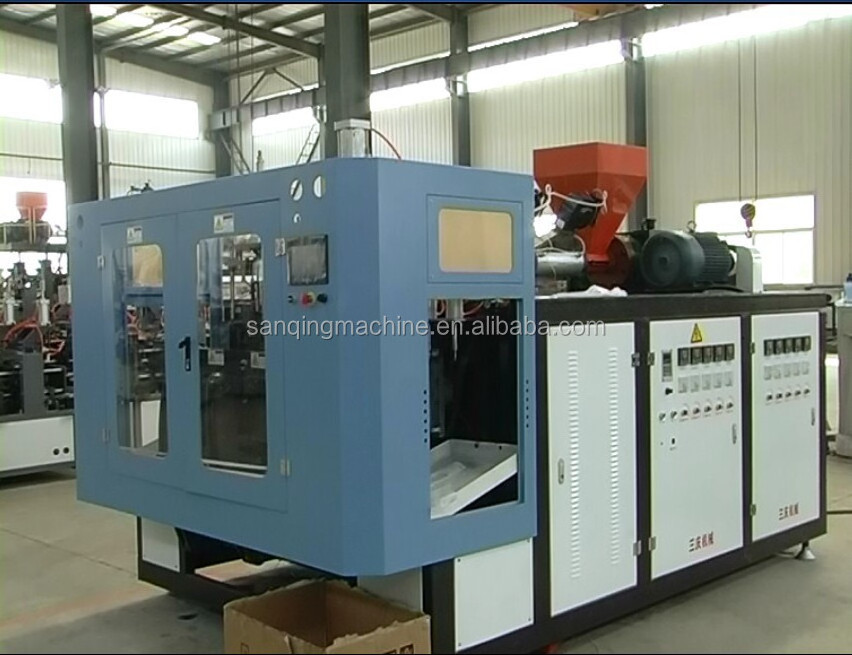

Machine photos:
Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free.
