FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels
FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels
FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels
FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels
FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels
FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels
FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels
FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels

FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels

FOB Reference Price: Get Latest Price
≥1 Sets
US $159
≥10 Sets
US $150
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power supply:
DC 12V, 700mA
Weight:
65g
Frequency:
5.8Ghz
Transmit Power:
1200mW
Distance:
20km from FPV
Channel:
9 channels

Quick Details

Brand Name:
Kimpok Technology
Model Number:
KP-FPV5812
Place of Origin:
Guangdong, China
Power supply:
DC 12V, 700mA
Weight:
65g
Frequency:
5.8Ghz
Transmit Power:
1200mW
Distance:
20km from FPV
Channel:
9 channels

FPV Long Range Wireless Video Transmitter and Receiver with 5.8Ghz Frequency and 9 Channels

Description:

If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need.

This equipment will cover a long distance in the open area around 2500m, and 20km from air to ground. But when there are obstacle between the transmitter and receiver, it will be decided case by case.

This unit is the professional one and the signal is very strong in 5.8Ghz series that can be used to cover the long distance where need strong signal and the industrial project.


Features:

· Wireless transmission: no need to set up communications cable

· Image, audio sync, color black and white compatible

· Small size, light weight, easy to carry, good installation

· Responsive, timely, send and receive real-time transmission

· Using FM mode, anti-interference ability, good image quality

· Highly integrated, stable and reliable transmission distance

· DC power supply, easy to use.

· Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects.


Specification:

Voltage

DC 12V

Current

700mA

Frequency

5.8Ghz

Frequency Band

5.72 GHz, 5.74 GHz, 5.76 GHz, 5.78 GHz, 5.80 GHz,

5.82 GHz, 5.84 GHz, 5.86 GHz, 5.88 GHz

Number of channels

9 channels

Transmit Power

1200mW

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M  6.0M

Distance (Open environment)

1000m-2500m

Overall Configuration

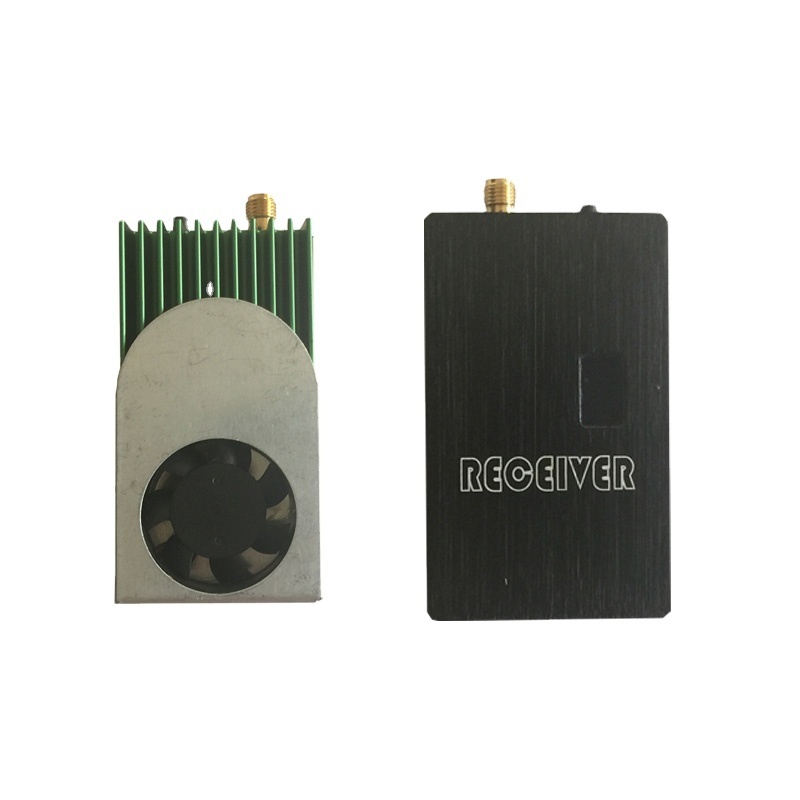

Transmitter, receiver, AV cable,  antenna

Temperature

-10°C ~ +50°C

Transmitter Weight

65g

Receiver Weight

67g

Whole Set Weight

395g

Dimensions (L * W * H)

Transmitter: 70*38*18.5mm. Receiver:72*43*11mm

Box size (L * W * H)

245*160*65mm
